Easykeymaker for Honda Key Programmer Brief Introduction, Easykeymaker, Key Programmer

Key Programmer Brief Introduction For Honda

1.Functions

The device is for registering key by OBDII. Cover for all Honda/Acura equipped with OBDII-16 socket. Support both transponder key and smart key registration in the following scenarios:
1)Add key
2)All keys lost
3)Replace IMMOBI
4)Replace ECM/PCM
5)Replace MPCS/MICU/IMOES
6)Replace smart entry
7)Replace key knob
8)Remote learning

2.Highlights

1)Easy to use. Register keys full automatically. User just turns ignition ON/OFF.
2)Register keys fast. Finish registration in minutes.
3)Small package and easy to carry. Can be hold in one hand.

3.Technical Specifications

1)Voltage & Current Requirements:8V - 18V DC (12V nominal) at 4 Amps (maximum)
2)Vehicle Protocols
* DIAGH
* CAN
* ISO-9141
* ISO-14230
3)Vehicle Connection:Molded DLC
4)Dimensions H:22mm (0.87in) W:54mm (2.13in) L:76mm (2.99in)
5)Weight:50g (1.76oz)
6)Environmental Operating: -20ºC to 45ºC (-4ºF to 113ºF) at 15% to 85% RH non-condensing

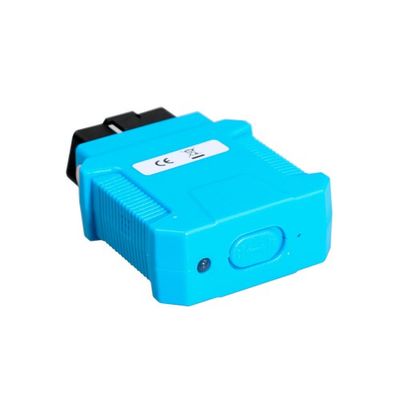

4.Appearance Detail











Picture 2 3D view

1)Key Type Switch
IMMO: Transponder key
SMRT: Smart key
2)LED Status Indicators
ON: Power ON
OFF: Power OFF
3)Buzzer
* Long beep once "Di-" (Beep ON continuous for 3 seconds)
* Long beep periodically with "Di-"(Beep ON for 1 second and OFF for 1 second, and repeat)
* Short beep periodically with "Di" (Beep ON for 100 milliseconds, OFF for 900 milliseconds, and repeat)
* Short beep periodically with "Di, Di" (Beep ON for 100 milliseconds, OFF for 100 milliseconds, ON for 100 milliseconds, OFF for 700 milliseconds, and repeat)
* Short beep periodically with " Di, Di, Di" (Beep ON for 100 milliseconds, OFF for 100 milliseconds, ON for 100 milliseconds, OFF for 100 milliseconds, ON for 100 milliseconds, OFF for 500 milliseconds, and repeat)

Package includes:

1pc x EasyKeyMaker for Honda Key Programmer Brief Introduction
