Technical Parameter:
Lifting capacity | 4000kg |
Lifting height | 1700mm |
Minimum height | 200mm |
| Platform length | 4600mm |
Overall length | 5850mm |
Overall Width | 3400mm |
Runway Width | 530mm |
Lifting time | ≤60s |
Lowering time | ≥30s |
Motor | 220V/380V 50Hz/60Hz 1Ph/3Ph 1.8Kw |
Gross weight | 1200Kg |
Motor Power: | 2.2KW |
Cubic Meter: | 3CBM |
Loading in Container | 8 pieces / 20' container |
Features of High capacity hydraulic 4 ton car lift price for car wash :
1> Hydraulic drive, cable transmission, steady lifting, level is adjustable.
2>Lifting operation is convenient, no diarrhea, leakage oil pressure stability, low noise, power strong.
3> Hydraulic oil cylinder adopt imported sealing ring, wear-resisting durable, reliable sealing, long service life.
4> Equipped with overload protection, short line protection and self-locking protection in the process of rise, each column has the multi-function safety devices such as locking device.

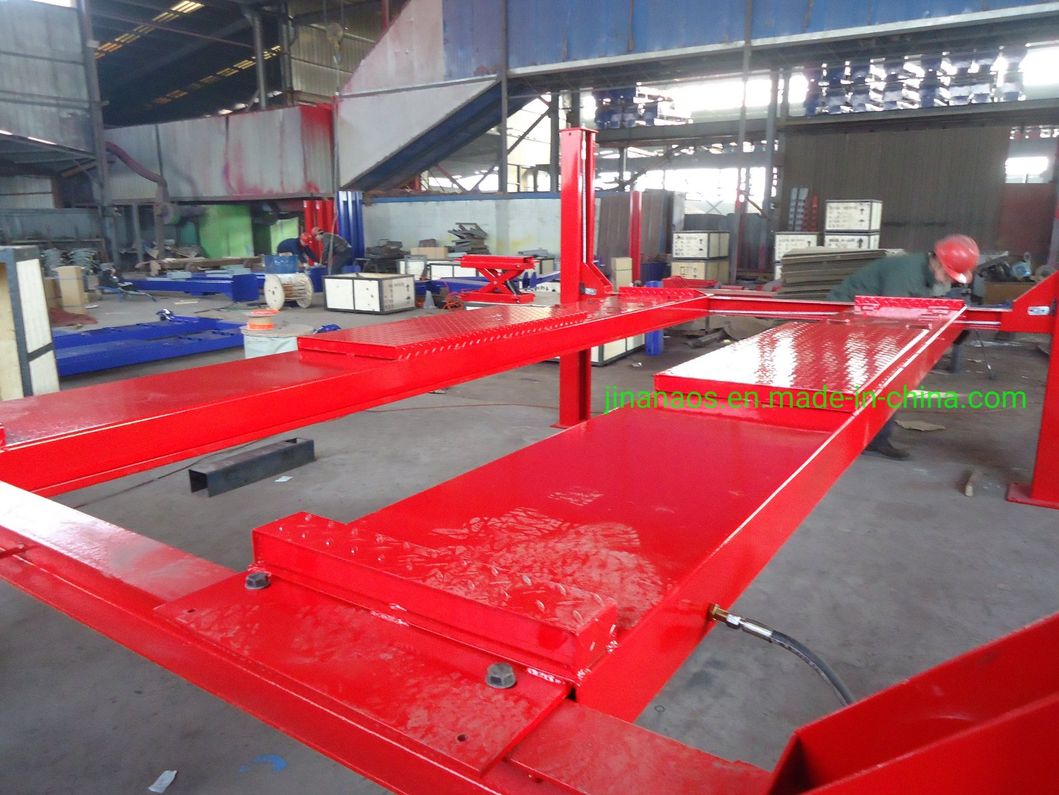

Workshop of the car lift machinery:
