Model NO.
T4033EE
Driving Type
Hydraulic
Certification
CE
Driving Motor Number of Mechanical Lift
1
Condition
New
Brand
Yuanmech
Design
Two Post
Product Name
Two Post Lift (Top Connection)
Colour
Customization
Post Lift Height
2826mm
Space Between Posts
2820mm
Maximum Width
3370mm
Post Base Width C (mm)
460mm
Front Arms -Short Arms R 2 Step (mm)
740 - 1130mm
Rear Arms-Long Arms F 2 Step (mm)
860 - 1370mm
Standard Pad Height T Min (mm)
90mm
Standard Pad Height T Max (mm)
140mm
Capacity
4t
Voltage
400V/230V 3 pH 2.2 Kw 50/60 Hz
Transport Package
Plywood
Specification
2000cm*200cm*200m
Trademark
YuanMech
Origin
Yingkou, Liaoning, China
HS Code
8425429000
Production Capacity
3000
After-sales Service:
Videocall, Online&Face to Face Training Acceptable
Warranty:
12month
Lifting Capacity:
4T
YuanMech T4033EE Two Post Lift Top Connection with Electro Down Valve and Electromagnet Realese
Product Overview
YuanMech Premium-Line Lift
Product range:
1. Two Post lifts Floor and Top
2. Double scissor lift Low Profile
3. Double scissor lift high Profile Inground
4. Midrise lift
5. Motorcycle lift
6. Big scissor lift Low Profile
6. Big scissor lift Low Profile
7. Big scissor lift High profile
8. Four Post lift
FEATURES AT A GLANCE
SALES AND SERVICE NETWORK
Customer Sevice
Two Post lift Top connection
Capacity 4.000 kg and 5.000kg
With manual or electro safety release
With manual or electro down valve
Many lifting arms combination (optional)
Very low lifting pads only 75 mm (optional)

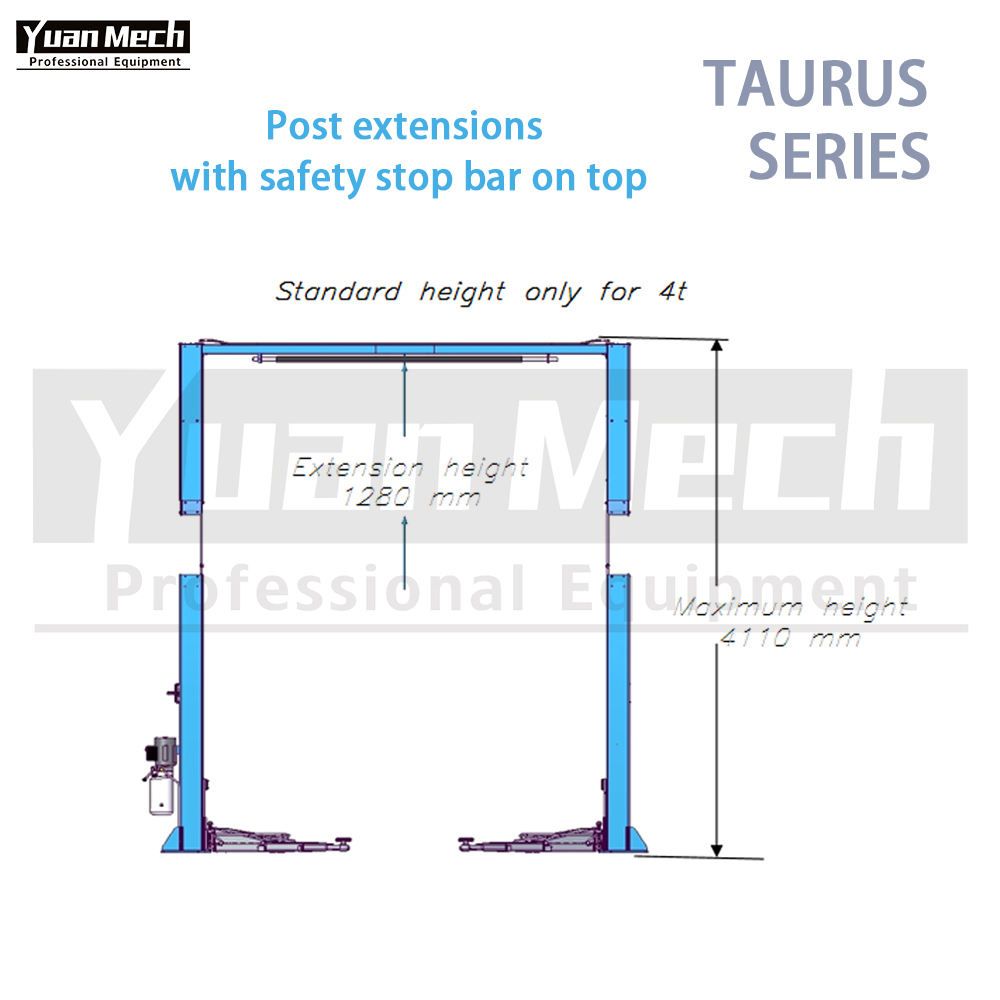

Different column height from 3.810 to 5.010 m
With manual or electro safety release
With manual or electro down valve
Many lifting arms combination (optional)
Very low lifting pads only 75 mm (optional)
Different column height from 3.810 to 5.010 m
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | 400V/230V 3 ph 2.2 Kw 50/60 Hz |
2 | capacity | Capacity 4.000 kg and 5.000 |
3 | Release type | With manual or electro safety release |
4 | Down Valve | With manual or electro down valve |
5 | Connection cover Thickness | Very low floor connection cover only 22 mm |
6 | Lifting arms | Many lifting arms combination (optional) |
7 | Lifting pad Thickness | Very low lifting pads only 75 mm (optional) |
The metal sheet thicknesses used by the competitor are smaller than ours
An intermediate joint is created in the chain, which can be easily adjusted using a wrench and in an easily accessible and comfortable position.
It's easier to unlock the arms and it won't take a lot of arm/hand effort
Customer SeviceFAQ
Q1:Why should you buy from YuanMech compared with other suppliers?
A1:The products was totally Designed by Italian Technician , and produce in China. In this way, the product is belongs to the high level and Premium quality which can compete with High-end level products.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production, and always final inspection before shipment.
Q3: What excellent service can we provide?
A3: 24h-toll-phone for service and training by English , Italian, Japanese Spoken.
You can press " CONTACT NOW " or " CHAT WITH SUPPLIER " to get more details.
