Working life | 80,000 Hours | Package | Original carton |
Color | Picture | Application | calibrate common rail injector |
Delivey time | 5-7days | Certification | IOS9001 |
Name | Common Rail Injector Test Instrument | Warranty | 1 year |
Size | 110*250*190mm | Weight | 6 kg |
Shipment | sea/air/express | MOQ | 1 Piece |
Model Number | CR-C | Price | 1-50 PCS USD130 |
Payment | TT/ western union | Port | Qingdao |
Specifications
2 Material:Metal
3.Professional Perfomance Auto parts supplier
4.Fast Engines

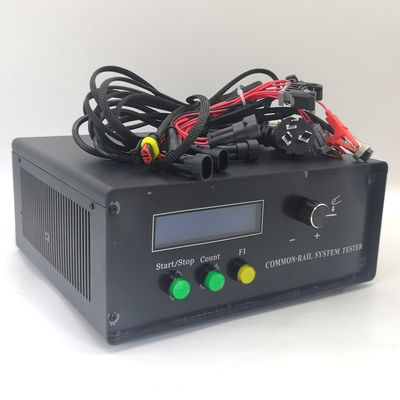

CR1000 or CRI700 ONE Cylinder
Common Rail Diesel Fuel Piezo Injector tester
Product DescriptionCR1000 can test nozzle spray pattern and injector back leakage, to check the CR injector with either
solenoid or piezo technol CR1000, the repair tester to simulate the engine Control Unit (ECU) driving
signals for a common rail injector of either solenoid technology or piezo technology, made by
Bos-ch, Delphi, Denso and Siemens. The user is able to set the control parameters of fuel injection drive signals.
By combining of a CR1000 tester and a high pressure fuel source, which may be a mechanical manual
pump, or an electrical motor driven pump, or a pneumatic driven pressure booster, to feed the CR injector, the user is able to fulfill the tasks, such as nozzle spray pattern and injector back leakage, to check the CR injector with either solenoid or piezo technology.
Design Features
1. Modulated driving signal to ensure the safety of the solenoids of the injectors
2. Injector driving signal Adjustable frequency and pulse width
3. Short circuit protection for solenoid driving signals
4. Rich accessories, ready to test Bos-ch, Denso and Delphi injectors
Main parameter
Maximum pressure | 40MPa |
Overall dismensions | 320*300*500 |
Net weight | 6 kg |
Pressure guage range | 0-60 Mpa |
Details photos:
