Model NO.
HY-CB55A
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Steam
Paint Mist Treatment
Dry-type
Condition
New
Color
Red, Blue, White, Grey
Panel
75mm Thickness EPS Foam Panel
Grates
Full Grates
Intake Fan
2set
Exhaust Fan
1set
Filter System
4-Stage Filtration
Heating System
Diesel, Oil
Upper Lights
Available
Side Lights
for Option
Control Box
English Panel
Control
Automatic
Drawing
Available
User Manual
Available
Related Product 1
Retractable Folding Paint Spray Booth
Related Product 2
Large Truck Paint Spray Booth
Transport Package
Standard Package for Sea Shipment
Specification
26CBM for FCL
Trademark
Hongyuan
Origin
Shandong, China
Production Capacity
100 Set Per Month
After-sales Service:
Available
Warranty:
12months
Type:
Spray Booth
Certification:
CCC, CE, SGS, ISO
Substrate:
Steel
Brand:
Hongyuan
Introduction of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel

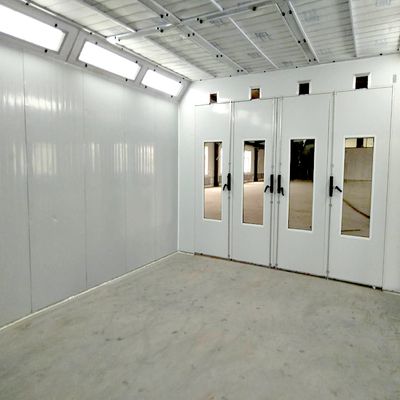

Picture of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel
details show of Car Paint Booth China with Oil Burner and Heat-Insulation Panel
parts show of paint booth
Project case for Car Paint Booth China with Oil Burner and Heat-Insulation Panel
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry about Car Paint Booth China with Oil Burner and Heat-Insulation Panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel
| Model | HY-CB55A |
Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
Front Door(mm) | 3000*2600(W*H) |
Side Door(mm) | 600*1800(W*H) |
Total power | 20kW |
Voltage status | 380V/3ph&220V/1ph@50Hz |
Wall Panel | 50mm EPS foam panel |
Ceiling panel | Galvanized steel |
Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
Intake | Two set of fan, motor: 4kW. |
Exhaust | One set of fan, motor: 5.5kW. |
By-pass | Pneumatic damper from spraying to baking cycle |
Heating System(GAS) | Italy Riello GAS burner, one-stage oil burner for option.. |
Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
Lighting | Upper lights, 8units, 4*36W each. |
Control System | 1set. |
