Model NO.
HY-CB75W
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Color
Red, Blue, White
Panel
50/75mm EPS Foam Panel
Grid Plates
Full Grates
Intake Fan
1set
Exhaust Fan
1set
Heating System
Diesel Burner
Filtration
4stages
Control
Automatic
Control Box
English Panel
Drawing
Available
User Manual
Available
Installation Video
Available
Related Product 1
Large Folding Retractable Paint Spray Booth
Related Product 2
Furniture Paint Spray Booth
Related Product 3
Car Lift
Transport Package
Standard Package for Sea Shipment
Specification
26CBM for FCL
Trademark
N/A
Origin
Shandong, China
Production Capacity
100 Set Per Month
After-sales Service:
Available
Warranty:
12month
Type:
Spray Booth
Certification:
CCC, CE, SGS, ISO
Substrate:
Steel
Brand:
Hongyuan
Introduction of the Car Paint spray Booth for Water-Based Paint
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Car Paint spray Booth for Water-Based Paint
parts show of Car Paint spray Booth for Water-Based Paint
Production area and equipment for Car Paint spray Booth for Water-Based Paint
Package Show of Car Paint spray Booth for Water-Based Paint
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry for more info about Car Paint spray Booth for Water-Based Paint
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Car Paint spray Booth for Water-Based Paint
Model | HY-CB75W | ||
Outside Size(mm) | 7000*4000*3450(L*W*H) | Inside Size(mm) | 6900*3900*2700(L*W*H) |
Front Door(mm) | 3000*2600(W*H) | Side Door(mm) | 600*1800(W*H) |
Total power | 20kW | Voltage status | 380V/3ph&220V/1ph@50Hz |
Cabin System | Wall panel: 50mm EPS sandwich panel, steel sheet thickness: 0.426mm Ceiling panel: 50mm rock-wool panel. Basement: 300mm depth, full galvanized grids basement Ramps: Three pieces ramps Glass: 4mm safety tempered glass Windows: Square glass windows | ||
Air make-up System | Air Inlet fan: 1*7.5kW; Exhausted fan: 1*7.5kW; Air capacity for fresh air: 25000m3/h Air Flowing speed: 0.3m/s in empty booth Air ducting: 8meters straight ducting, one damper and one weather hood. | ||
Water-based System | Ceiling nozzles: 32pcs stainless steel nozzles Corner dryers: 2pcs with 0.18kW motor Ceiling fan: 2*1.5kW, air capacity: 4500m3/h | ||
Filter System | Pre-filter: G3 grade, Pockets filter. Ceiling filter: Hi-efficiency filter,EU5 / F5 Floor filter: green fiber glass filter / G3 grade Exhausted fan Filters: green fiber glass filter and active carbon | ||
Heating System | Heat Converter: SUS304 material, argon arc welding. Heating burner: RielloG20 diesel oil burner(gas burner for option) Heating productivity: 180000Kcal/h Spray to baking switch: 20N BELIMO brand electrical damper Chimney ducting: 3 meters stainless ducting and one chimney elbow Max heating temperature: 80degrees fuel consumption: 6-8L /vehicle | ||
Lighting | Ceiling lights:8 Units, each 4*36W lamps, Total 1152W Side lights: 6Units, each 2 * 36W lamps, Total 432W Illumination: 1000LUX | ||
Control System | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | ||
parts show of Car Paint spray Booth for Water-Based Paint
Production area and equipment for Car Paint spray Booth for Water-Based Paint

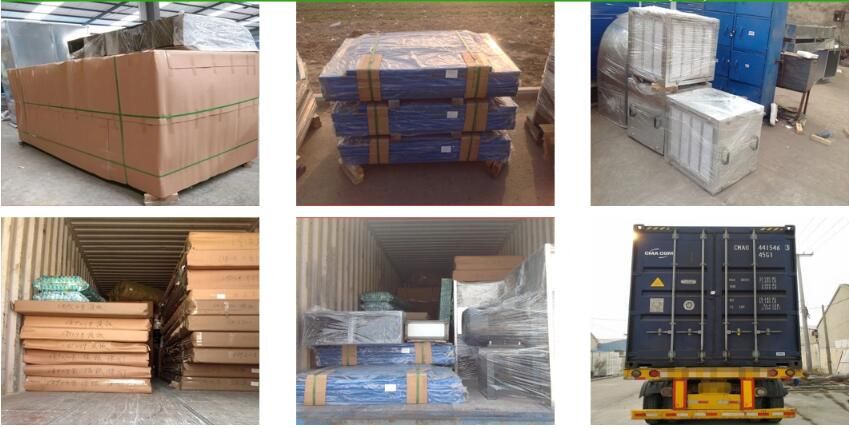

Package Show of Car Paint spray Booth for Water-Based Paint
