Model NO.
HY-CB55B
Coating
Painting
Airflow Direction
Cross-flow Type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Color
Red, Blue, White
Panel
50mm Thick EPS Foam Panel
Intake Fan
2set
Exhaust Fan
1set
Filter System
4-Stage Filtration
Heating System
Electric
Upper Light
Available
Side Light
for Option
Control Box
English Panel
Drawing
Available
Control
Automatic
User Manual
Available
Related Product 1
Large Truck Paint Spray Booth
Related Product 2
Folding Retractable Paint Spray Booth
Related Product 3
Furniture Paint Spray Booth
Transport Package
Standard Package for Sea Shipment
Specification
26CBM for FCL
Trademark
Hongyuan
Origin
Shandong, China
HS Code
8428909090
Production Capacity
100 Set Per Month
After-sales Service:
Available
Warranty:
12months
Type:
Spray Booth
Certification:
CCC, CE, SGS, ISO
Substrate:
Steel
Brand:
Hongyuan
Introduction of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
1. full-down draft paint booth: Down draft spray booths bring air in through the ceiling plenum, down through the floor (metal basement or concrete pit) into the exhaust fan chamber. This provides the cleanest finish possible and is used in high end autobody facilities.
2. semi-down draft paint booth: Semi down draft spray booth brings air in through the roof and then exhaust it out through the back walls of the spray booth, it requires no concrete pit work, and the fan cabinet is at the back of the cabin.
3. side-down draft paint booth: Side down draft spray booth brings air in through the roof and then exhaust it out through the side walls of the spray booth, this is similar to a down draft spray booth but requires no concrete pit work, this is widely used for small auto body shops where no floor alteration can be made.
4. cross-draft paint booth: Cross draft spray booth brings air in through the front of the booth and exhaust it out at the rear of the booth, they are more affordable, easier to install (require no concrete pit work).
Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel

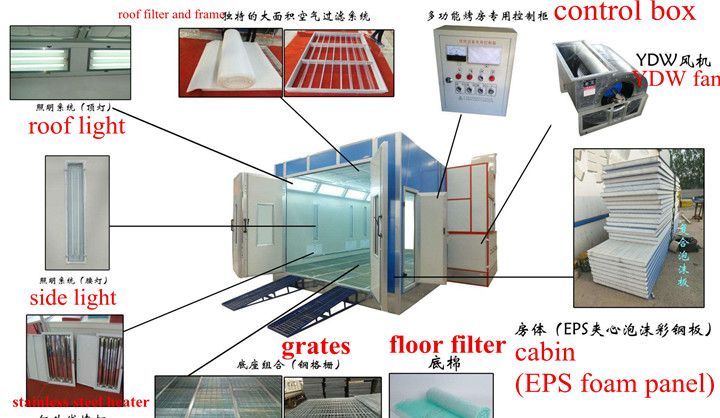

details show of paint booth with oil burner
parts show of paint booth with oil burner
Production area and equipment for Baking Car Auto Paint Spray Booth Room for Sale
Package of the goods
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry
1. full-down draft paint booth: Down draft spray booths bring air in through the ceiling plenum, down through the floor (metal basement or concrete pit) into the exhaust fan chamber. This provides the cleanest finish possible and is used in high end autobody facilities.
2. semi-down draft paint booth: Semi down draft spray booth brings air in through the roof and then exhaust it out through the back walls of the spray booth, it requires no concrete pit work, and the fan cabinet is at the back of the cabin.
3. side-down draft paint booth: Side down draft spray booth brings air in through the roof and then exhaust it out through the side walls of the spray booth, this is similar to a down draft spray booth but requires no concrete pit work, this is widely used for small auto body shops where no floor alteration can be made.
4. cross-draft paint booth: Cross draft spray booth brings air in through the front of the booth and exhaust it out at the rear of the booth, they are more affordable, easier to install (require no concrete pit work).
Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
| Intake | two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
