Model NO.
XNK-006
Elevator Door
Center Opening Door
Door Knife
Single
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Main Power
AC 380V, 3 Phase 50Hz
Warranty
18 Months After Shipment
Documents with Shipment
Installation Manual, Elec
Lighting Power
AC 220V, 1 Phase, 50Hz
Transport Package
Plywood Box
Specification
ISO9001: 2008
Trademark
syney or OEM
Origin
Hangzhou, Zhejiang
HS Code
8428101090
Production Capacity
11000 Sets Per Year
Driving Type:
AC Elevator
Capacity:
>1000kg
Persons:
>20
Speed:
1.0m/S-4.0m/S
Control Mode:
Collective Selective Control
Position of Computer Room:
up
Product description
High Speed Passenger Elevator Office Building Lift
Model: XNK-006
Combined with modern technology and fasion art, Syney passenger elevator satisfies all needs of hotel, office building, shopping mall, etc, and provides safe and comfortable riding experience.
Features
1. Safe and reliable
Syney passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
From the view of space saving, Syney passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
Syney passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
Syney passenger elevator is euipped with stable control system with maximum capacity 1600kg. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
Customers can choose their favorite and customized apperance for their own elevators
from aspects of car finish, design, ceiling and floor materials.

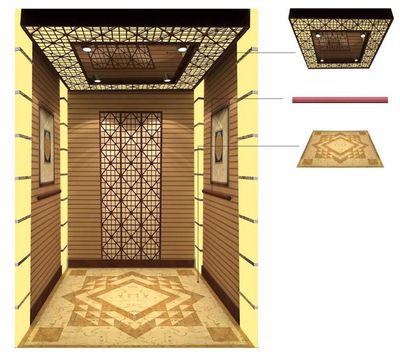

Passenger elevator cabin design
Parameters: Passenger Elevator With Machine Room
Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
Company Profile
Syney Electric (Hangzhou) Co., Ltd. is a professional enterprise integrating R&D, design, manufacture, marketing, installation and customer service. The company applies whole set of advanced equipments and specializes in design and manufacture of products including passenger elevator, panoramic elevator, bed elevator, cargo elevator, home elevator, car elevator, escalator, moving walks, etc. Syney sales network expands to over 50 countries in Europe, Asia, Africa and America.
Certificates
CE Certificate of Elevator with machine room and Elevator without machine room, and UCMP device
CE Certificate of energy-efficiency of lifts: Grade A
EAC Certificate Elevator with machine room and Elevator without machine room
Projects
High Speed Passenger Elevator Office Building Lift
Model: XNK-006
Combined with modern technology and fasion art, Syney passenger elevator satisfies all needs of hotel, office building, shopping mall, etc, and provides safe and comfortable riding experience.
Features
1. Safe and reliable
Syney passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
From the view of space saving, Syney passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
Syney passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
Syney passenger elevator is euipped with stable control system with maximum capacity 1600kg. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
Customers can choose their favorite and customized apperance for their own elevators
from aspects of car finish, design, ceiling and floor materials.
Passenger elevator cabin design
| Capacity | Speed | Cabin Size | Shaft Size | Max Travel | Min Floor H | ||||||
| DL | V | Width | Depth | Open | Width | Depth | Pit | OH | MRH | Max R | Min D |
| (kg) | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (m) | (m) |
| 630 | 1 | 1400 | 1150 | 800*2100 | 2000 | 1800 | 1500 | 4500 | 2300 | 50 | 2.7 |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 800 | 1 | 1350 | 1400 | 800*2100 | 2000 | 2100 | 1500 | 4500 | 2300 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2050 | 2100 | 1900 | 5000 | 2500 | 100 | |||||
| 2.5 | 2100 | 5200 | 120 | ||||||||
| 1000 | 1 | 1600 | 1400 | 900*2100 | 2200 | 2100 | 1500 | 4500 | 2300 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2300 | 2100 | 1900 | 5000 | 2500 | 100 | |||||
| 2.5 | 2100 | 5200 | 120 | ||||||||
| 1150 | 1 | 1800 | 1400 | 1000*2100 | 2400 | 2100 | 1500 | 4500 | 2300 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2500 | 2150 | 1900 | 5000 | 2500 | 100 | |||||
| 2.5 | 2200 | 5200 | 120 | ||||||||
| 1350 | 1 | 2000 | 1500 | 1100*2100 | 2600 | 2200 | 1500 | 4500 | 2500 | 50 | |
| 1.5 | 1600 | 4600 | 70 | ||||||||
| 1.75 | 1700 | 4700 | 90 | ||||||||
| 2 | 2700 | 2250 | 1900 | 5000 | 100 | ||||||
| 2.5 | 2200 | 5200 | 120 | ||||||||
| 1600 | 1 | 2000 | 1700 | 1100*2100 | 2600 | 2400 | 1500 | 4600 | 2500 | 50 | |
| 1.5 | 1600 | 4700 | 70 | ||||||||
| 1.75 | 1700 | 4800 | 90 | ||||||||
| 2 | 2700 | 2450 | 1900 | 5100 | 100 | ||||||
| 2.5 | 2200 | 5300 | 120 | ||||||||
Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
