Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Infrared Ray
Paint Mist Treatment
Dry-type
Condition
New
Color
Red, Blue, White
Panel
50m Thickness EPS Foam Panel
Intake Fan
1 or 2sets
Exhaust Fan
1set
Heating System
Gas, Diesel, Oil, Electric
Heating Converter
Stainless Steel
Lights
Available
Control Box
1set, English Panel, Other Language for Option
Drawing
Available
User Manual
Available
Control
Automatic
Product 1
Car Lift
Product 2
Car Prep Station
Product 3
Car Paint Mix Room
Product 4
Car Tire Changer
Transport Package
Standard Package for Sea Shipment
Specification
26CBM for FCL
Trademark
N/A
Origin
Shandong, China
Production Capacity
100 Set Per Month
After-sales Service:
Available
Warranty:
12months
Type:
Spray Booth
Certification:
CCC, CE, GS, SGS
Substrate:
Aluminum
Brand:
Hongyuan
Introduction of the Auto paint spray booth for car and minivan with electric heaters
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Details of the Automotive Paint booth with intake and exhaust fan
Picture of the Automotive Paint booth with intake and exhaust fan
Details show of paint booth with oil burner
parts show of paint booth
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry about spray booth
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Details of the Automotive Paint booth with intake and exhaust fan
| Model | HY-CB75C |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <40kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
| Intake | One set of fan, motor: 5.5kW. |
| Exhaust | One set of fan, motor: 7.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Electric heaters. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

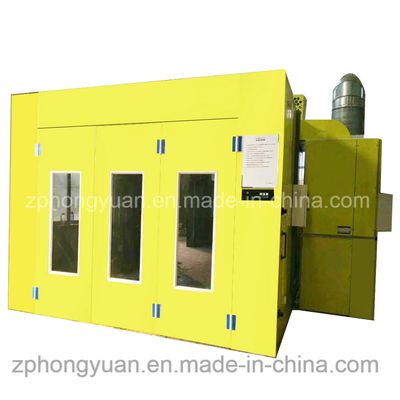

Picture of the Automotive Paint booth with intake and exhaust fan
Details show of paint booth with oil burner
parts show of paint booth
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us inquiry about spray booth
