Model NO.
IT-L8-H
Condition
New
Walls
50mm Thick Rock Wool Panel
Plenum Height
600mm
Basement Height
350
Filter Area
32mm2
Filters
High Efficiency Filters
Fan
Centrifugal Fan, 35,000m3/H
Empty Loaded Air Speed
0.3m/S
Heat
315kw Heat Exchanger
Warranty
2 Years
Noise
<78dB
Transport Package
Polyfoam and Metal Frame
Specification
8000*4000*2800mm(L*W*H)
Trademark
INFITECH
Origin
Guangzhou, China
HS Code
8419899090
Production Capacity
900 Sets/Year
Type:
Spray Booth
Certification:
CE
Substrate:
Steel
Coating:
Powder Coating
Airflow Direction:
Fully Undershot-type
Paint Mist Treatment:
Dry-type
INFITECH environmental high efficiency waterborne water based paint drying cabin/paint baking cabin
Technical Specifications
Features
Packaging & Shipping
Engineering cases
Company introduction
INFITECH is professional manufacturer of CE standard spray booths. We provide complete spray workshop solution including design and layout, technical consultation, manufacturing, sales, installation and maintenance. And we pride ourselves in providing personalized and ideal paint workshop solution that best suit customers' requirements, helping improve workflow, and maximize profits for shop owners.
Technical Specifications
| INFITECH environmental high efficiency waterborne water based paint drying cabin/paint baking cabin | |
| Design standard | BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 |
| Airflow | Full downdraft |
| Internal dimensions | 8000 x 4000 x 2800mm (L X W X H) |
| External dimensions | 8110 x 5760 x 3810mm (L X W X H) |
| Plenum height | 600mm |
| Basement | Full grids, 350mm high |
| Drive-in ramp | 1 set, pneumatic |
| Entrance door | 1 set, 3200 X 3050mm (W X H) |
| Personnel door | 1 set, 800 X 2000mm (W X H) |
| Ceiling lighting | 10 sets, each 4 X 18W, 720W total, LED lamp |
| Sidewall lighting | 10 sets, each 2 X 18W, 360W total, LED lamp |
| Brightness | >1,000LUX |
| Purification | Pre-filter, ceiling filter, floor filter, extract filter |

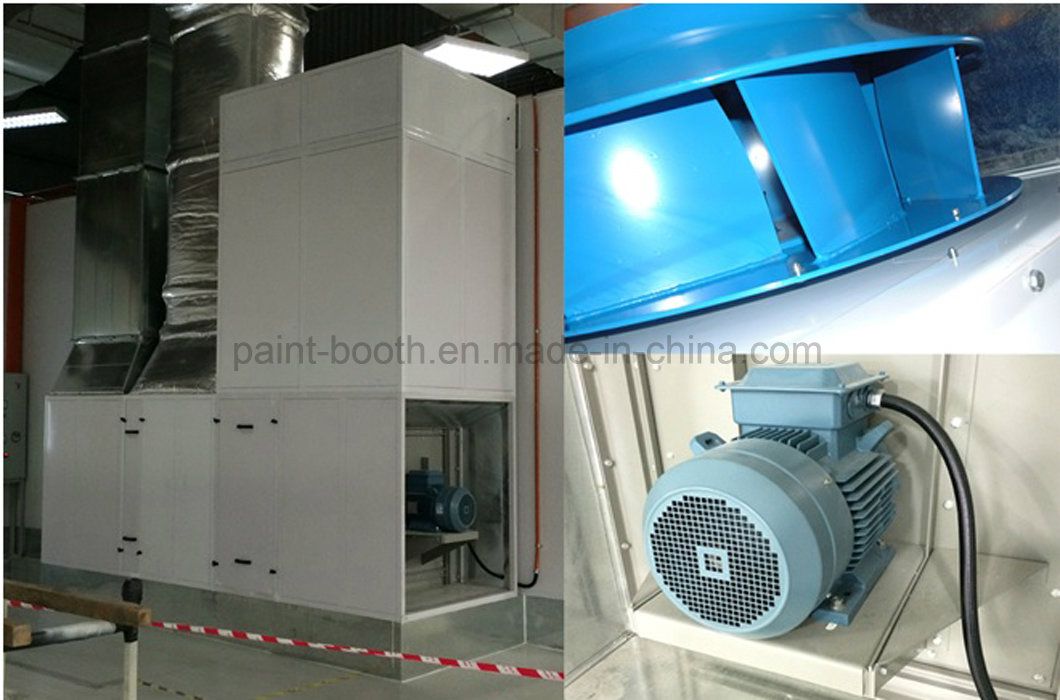

| Air intake | Direct-type turbine fan, 11KW, SIEMENS |
| Air exhaust | Direct-type turbine fan, 11KW, SIEMENS |
| Air volume | 35,000m3/h |
| Empty loaded air speed | +/-0.30m/s |
| Heating system | 315kw heat exchanger, RIELLO gas burner RS5D |
| Controls | CE standard control box |
| Rated power | 26KW |
Features
| Airflow • Downdraft for spray and cure • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum • Full grids (900kg/wheel), 350mm high basement |
| Doors • 3-wing entry door with tempered glass window • Personnel door with observation window | Heat • Intake and exhaust motors, 11kw, SIEMENS motor • RIELLO gas burner RS5D, 315kw heat exchanger |
| Filtration • Pre-filter: EU3 grade pre-filter plate filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Extract filter: Simple activated carbon filters | Controls • PLC controller, pressure gauge Functions: Painting, flash, baking, cooling, lighting, emergency stop switch, failure indication, over-temperature alarm indication, motor over-load and over-current protection |
