Model NO.
IT SUPER 701
Paint Mist Treatment
Dry-type
Condition
New
Product Name
European Design Auto Paint Booth (It Super 701)
Key Word
European Design Paint Booth
Brightness
>1200lux
Fan
Big Impeller Turbine Fan, 1X7.5kw, 28000m3/H
Empty Loaded Air Speed
+/-0.28m/S
Warranty
2 Years
Transport Package
Polyfoam and Metal Frame
Specification
7000 X 4000 X 2800mm
Trademark
INFITECH
Origin
China
HS Code
8419899090
Production Capacity
500 Sets / Year
Type:
Spray Booth
Certification:
CE
Substrate:
Steel
Coating:
Powder Coating
Airflow Direction:
Fully Undershot-type
Heating Mode:
Diesel
2018 hot selling European design premium auto paint booth (IT SUPER 701)

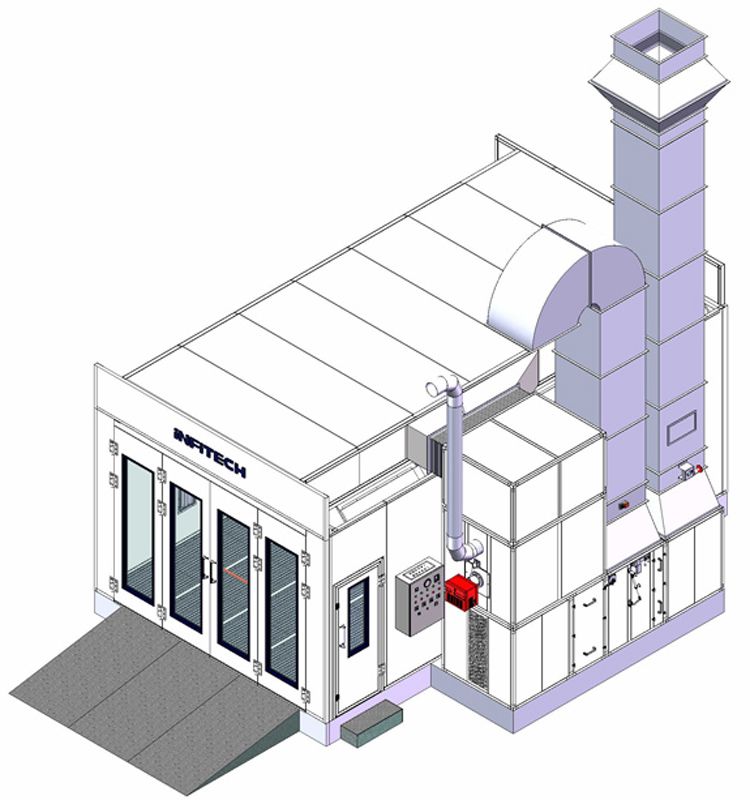

DESIGN DIAGRAM
Basic information
| DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 |
| BOOTH DIMENSIONS | |
| Internal dimensions | 7000 X 4000 X 2800mm (L X WX H) |
| External dimensions | 7110 X 5560 X 3810mm (L X W X H) |
| BASEMENT | |
| Base design | Galvanized sheet bending forming, full grids Basement(H): 350mm and can be adjustable |
| Carrying capacity of the grids | 650 kg/wheel |
| Filter area | 28m2 |
| Drive-in-ramps | 3 pieces; size: 2000 X 1030 X 320mm, diamond structure |
| Grid description | Size: 997 X 756mm, 40 X 3mm, galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of pressed steel grates. |
| CABIN | |
| Cabin structure | Wall panel vertical insert |
| Plenum height | 600mm |
| WALL PANEL | |
| Wall panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Top panel | 50mm dual-skin insulated panels filled with heat resistant rock wool |
| Edge material | 1.2mm galvanized steel plate bending forming |
| ENTRANCE DOOR | |
| Form | Manual door, 4 wing entry door (2 + 2 structure) |
| Size | 3400 X 2700mm (W X H) |
| Quantity | Product entry door, 1 set |
| Door description | Containing frame, with safety glass observation window |
| PERSONNEL DOOR | |
| Form | Frame structure |
| Size | 800 X 2000 mm (W X H) |
| Quantity | 1 set |
| Door description | With safety glass observation window |
| SIDEWALL LIGHTING | (LED lamp) |
| Quantity and power | 6 sets of light fixtures, each 2 X 18W, 216W total |
| Lighting arrangement | On both sides |
| Lighting description | Protection grade IP55 |
| CEILING LIGHTING | (LED lamp) |
| Quantity and power | 8 sets of light fixtures, each 6 X 18W, 864W total |
| Lighting arrangement | On both sides |
| Lighting description | Protection grade IP55 |
| Brightness | > 1200Lux |
| FILTRATION SYSTEM | |
| Pre-filtration | EU3 grade pre-filter bag filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Floor filtration | Fiberglass paint arrestor filters |
| Extract filtration | Simple activated carbon filter mat, M type |
| INTAKE SYSTEM | |
| Intake fan | Direct-type turbine fan |
| Power and motor description | 7.5KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of intake fan | 28,000m3/h, 650pa |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type turbine fan |
| Power and motor description | 7.5KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of exhaust fan | 28,000m3/h, 650pa |
| Empty loaded air speed | +/- 0.28m/s |
| NOISE | <78db |
| HEATING SYSTEM | |
| Heat exchanger material | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Heat exchanger power | 232KW |
| △ T temperature increase capability | 25° C (from -5°C to 20°C in painting phase) |
| Max. working temperature | 80°C |
| Heating time | 8-15 minutes (from 20°C to 60°C in baking phase) |
| Diesel burner | RIELLO diesel burner RG5D |
| DUCTWORK | |
| Straight ducting | 8 pieces |
| 90°elbow | 1 piece |
| 45°elbow | 1 piece |
| Rain hat | 1 piece |
| Reducer | 2 pieces |
| MANUAL DAMPER | 1 piece |
| ELECTRIC DAMPER | 1 piece |
| CONTROL SYSTEM | |
| Implementation standard | Standard Y/Δ step-down start control system |
| PLC programmable logic controller | PLC control, higher reliability, lower failure rate |
| Pressure detection | Pressure gauge indicates pressure inside the booth. |
| Features | Painting, heating painting, flash-off, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor overload and over-current protection, fan and heating system interlock |
| SPECIAL ITEM | Rated power:18KW |
COMPANY INTRODUCTION
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs
