Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Color
Sea Blue, Red, Orange, White
Lighting
External Lighting
Motors
Proof-Explosion Motors
Transport Package
Consist with International Shipping Packaging.
Specification
CE, ISO
Trademark
JZJ
Origin
Yancheng Jiangsu
HS Code
8419899090
Production Capacity
2500 Sets/Year
After-sales Service:
1year
Warranty:
1year
Type:
Paint Spray Gun
Certification:
CCC, CE, ISO9001
Substrate:
Steel
Brand:
Jzj
European Standard Paint Spray Booth Auto Maintenance Garage Equipment
1. Australia Standard.2. External lighting.
3. Proof-explosion motors.
| Outside Dimension (mm) | 7006 * 5656 * 3450(L*W*H) | Inside Dimension(mm) | 6900 * 4000 * 2650(L*W*H) |
| Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 17KW | ||
| Cabin system | Wall panel | 50mm rock-wool panel, double face steel sheet thickness: 0.6mm | |
| Ceiling panel | Galvanized steel sheet. | ||
| Basement | 300mm depth, middle with grids, two side with checkered plates. | ||
| Ramp | three 2000*900mm ramps | ||
| Glass | 6mm safety tempered glass | ||
| Windows | Square glass Windows | ||
| Air Make-up System | Air Inlet fan system | 1 * 7.5kw turbo fan, proof-explosion motor, Ex rated | |
| Exhausted fan system | 1 * 7.5kw turbo fan, proof-explosion motor, Ex rated | ||
| Ai capacity | 25000m3/h | ||
| Air Flowing speed | 0.3m/s in empty booth | ||
| Air Control method | One manual damper for air inlet and exhausted system | ||
| Exhausted ducting | 8 meters air duct, one flop damper and one weather hood | ||
| Purification System | Pre-filter | G3 grade, Pockets | |
| Ceiling filter | EU5 / F5 | ||
| Floor filter | green fiber glass filter / G3 grade | ||
| Exhausted fan Filters | Pocket filter or M green fiber glass filter. | ||
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. | |
| Heating burner: | Riello G20 diesel oil burner(gas burner for option) | ||
| Heating productivity | 180000Kcal/h | ||
| Spray to baking switch | 20N BELIMO brand electrical damper | ||
| Chimney ducting | 3 meters stainless ducting and one chimney elbow | ||
| Max heating temperature Heating time | 80degrees 4-6min(20-60degrees) | ||
| fuel consumption | 5-6L /vehicle | ||
| Lighting System | Ceiling lights | 8 Units, each 4 x 36W Philips lamps, Total 1152 W | |
| Side lights | 8 Units, each 4 x 20W Philips lamps, Total 800 W | ||
| Illumination | 1200LUX | ||
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | |
Our Service1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.
If you have interest in any of our products, please kindly contact us. If you have any questions or doubts, please also feel free to contact us.
Q: What standards are you carrying out for your products?A: We produce according to the ISO 9001 and ISO 14001 rules.
Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.
Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more
Q: What is your productivity?

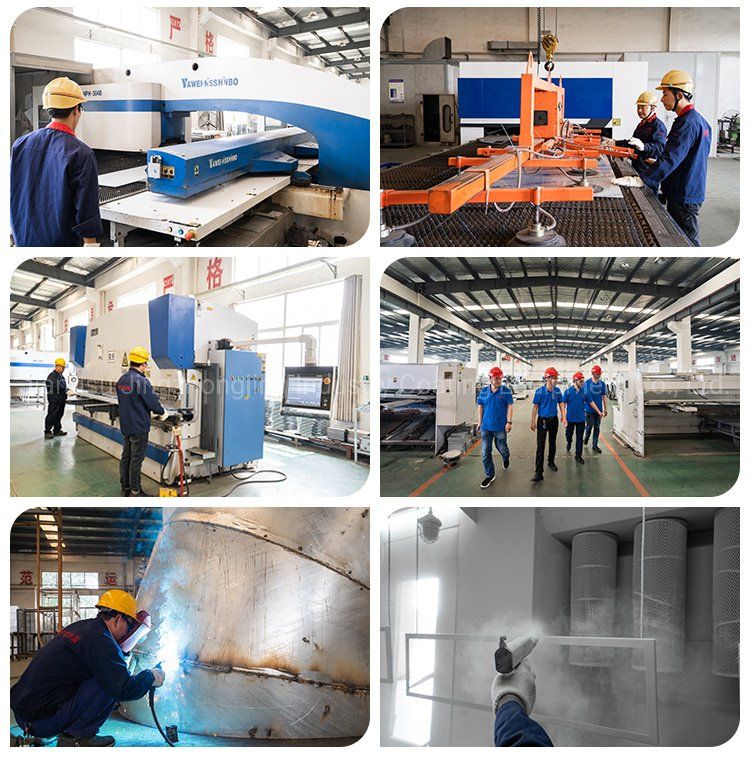

A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.
Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
