Model NO.
Top fan box spray booth
Coating
Painting
Airflow Direction
Cross-flow Type
Heating Mode
Diesel
Paint Mist Treatment
Wet-type
Condition
New
Inside Dimension
6900X3900X2700mm(Lxwxh)
Outside Dimension
7000X5350X3400mm(Lxwxh)
Main Door
4-Folded, 3200X2600mm(Wxh)
Personal Door
1-Fold, 750X1800mm(Wxh)
Wall Panel
50mm EPS, 0.426 Steel
Ceiling Panel
50mm EPS, 0.426 Steel
Air Intake
1 Sets 7.5kw Turbo Fan
Air Exhaust
1 Set 7.5kw Turbo Fan
Damper
Pneumatic
Ceiling Lights
32 PCS Ceiling Lights, LED Lights
Heating System
Italy Diesel Burner
Total Power
16kw
Color
Optional
Transport Package
Export Container /Pallet /Disassembly with Carton
Specification
CE, SGS, ISO
Trademark
OEM/Captain
Origin
Qingdao, China.
Production Capacity
10000sets/Month
After-sales Service:
on Line /Locally
Warranty:
24 Month
Type:
Spray Painting Booth
Certification:
CE
Substrate:
Sandwich Panel
Brand:
Captain
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Design drawing:

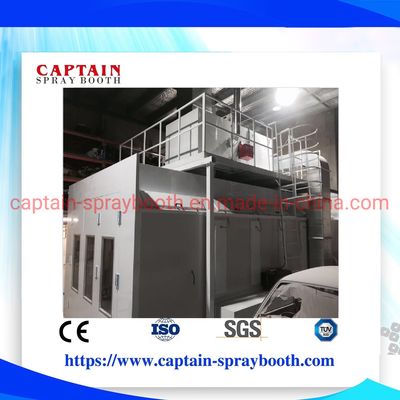

Appearance

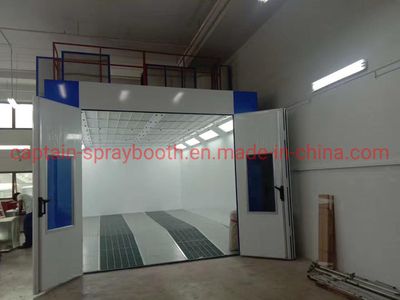

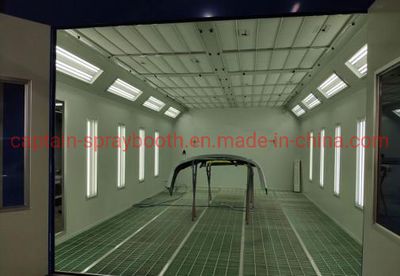

Inside view:
Air inlet and exhaust system :
High strength wall panel
Stainless Steel heat exchanger
Control Box
Package:
Workshop:
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
| Inside Dimension | 7850×4000×2700 mm(L×W×H) | Outside Dimension | 8350x4320x5100mm(LxWxH) | ||
| Front and back Door | 3000×2600 mm(W×H), metal sheet panel door, bolt inside, strong hinge, sealing strip, 5mm large glass. 3 folds | ||||
| Service Door | 700×2000mm(W×H), 2 units, each unit with 2 sets pressure lock | ||||
| Basement | No basement , air exhaust from back wall panel | ||||
| Wall Panel | 50mm thick EPS, 950mm wide, density is 14kgs/m2. The panel with double sides 0.4mm steels, Tongue and groove interlock structure. | ||||
| Ceiling Panel | 50mm thick EPS, 950mm wide, density is 14kgs/m2. The panel with double sides 0.4mm steels, Tongue and groove interlock structure. | ||||
| Ceiling system | Two cotton frames near the air inlet use punching technology to reduce air volume | ||||
| Intake&Exhaust System | 1x7.5kw turbo fan for air intaking, air capacity is 28000-31000 m3/h; 1x7.5kw turbo fan for exhausting, air capacity is 28000-31000 m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. Air inlet and outlet are both with air adjusting. 5m air intake duct with hat and 7m air exhaust duct with hat . Fan box on the top with steel structrure. Air exhaust from back , with 4000mm-400mm-500mm paint cabinet | ||||
| Lighting System | Ceiling Lights: 10units×4pcs=40pcs×16W LED lights , change lights from outside Illumination≥1000Lux. | ||||
| Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. Stainless steel heat exchanger, max temperature: 80ºC. The burner need the diesel as resource to heat air and then the hot air go throught heat exchanger to the room. 6m length chimney . 300L oil tank | ||||
| Purification System | Pre-filter: on the air inlet to prevent large dust and other impurities; Ceiling filter: on the ceiling frame to prevent much smaller dust, make sure the air is clean. Fiberglass floor filter: under grilles. To prevent paint mist go outside. Activated carbon filter: on air outlet. To absorb paint smell 4 kinds of flters to protect workers and environment. We also put activated carbon particle to help absorbing paint smell. | ||||
| Controlling System | spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, emergency stop, breakdown alarm, etc. All electrical parts are from SCHNEIDER. | ||||
| Total Power | 24 KW ; 240v,1ph ; 415v ,3ph | ||||
Design drawing:
Appearance
Inside view:
Air inlet and exhaust system :
High strength wall panel
Stainless Steel heat exchanger
Control Box
Package:
Workshop:
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
