Model NO.
IT-16M
Coating
Powder Coating
Airflow Direction
Lateral Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Product Name
Infitech Factory Supply Bus Truck Painting Chamber
Keyword
Painting Chamber
Voltage
380V, 50Hz, Your Special Voltage Is Acceptabl
Illumination
> 1000lux
Fan
2 X11kw, Siemens Motor
Equipment Empty Loaded Air Speed
+/- 0.22 M/S
Noise
<78dB
Rated Power
50kw
Transport Package
Polyfoam and Metal Frame
Specification
16000x5500x5500mm
Trademark
INFITECH
Origin
China
HS Code
8419899090
Production Capacity
500 Sets / Year
After-sales Service:
24 Hours After Service
Warranty:
2 Years
Type:
Spray Booth
Certification:
CE
Substrate:
Steel
Brand:
Infitech
Bus Spray Paint Oven Painting Oven Spray Booth Garage Equipments For Bus Refinishing
Product design
Technical parameters
| Design standard | BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 |
| Internal dimensions | 16000x5500x5500mm (L X WX H) |
| External dimensions | 16160x6820x7900mm (L X WX H) |
| Air extraction type | Side down draft for spray and cure |
| Air exhaust plenums | 10400 X 660 X1000mm (L X B X H) |
| Plenum height | 800mm |
| Entrance door | 1 set, 5460x5000mm (W X H) |
| Personnel door | 4 sets, 800 X 2000 mm (W X H) |
| Sidewall lighting | LED lamp, 24 sets of light fixtures, each 4 X 18W, total 1,728W |
| Ceiling lighting | LED lamp, 22 sets of light fixtures, each 4 X 18W, total 1,584W |
| Brightness | > 1,000Lux |
| Intake system | 2 X11KW, 970rpm, 380V, 50Hz, SIEMENS |
| Exhaust system | 2 X11KW, 970rpm, 380V, 50Hz, SIEMENS |
| Parameter of intake/exhaust fan | 2 X 35,000m3/h, 650pa |
| Equipment empty loaded air speed | +/- 0.22m/s |
| Noise | <78db |
| Maximum working temperature | 80° C |

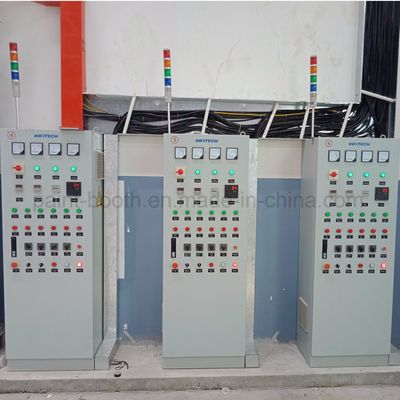

| Controls | PLC control, pressure gauge (indicates pressure inside the booth) Painting, heating painting, flash, baking, emergency stop switch, failure indication, baking delay stop protection, motor over-load and over-current protection, over-temperature alarm indication, fan and heating system interlock control |
| Specail item | Rated power: 50KW |
Product details
Company profile
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth/Bus Spray Paint Oven Painting Oven Spray Booth Garage Equipments since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
Packing and loading:
