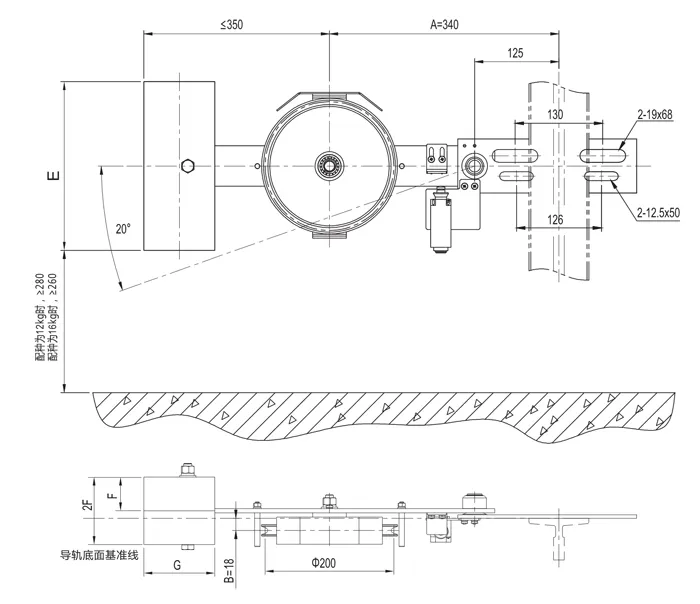

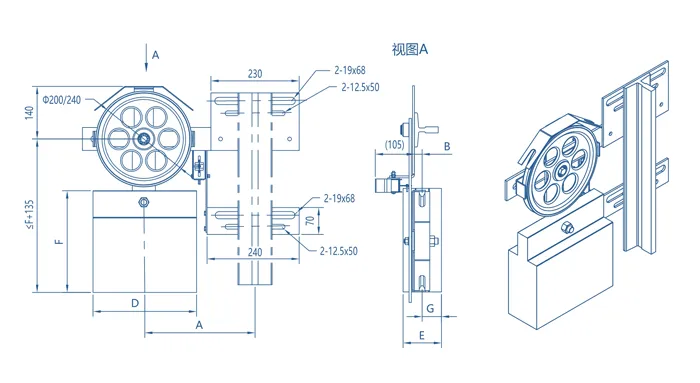

Elevator Parts Speed Governor Tension Tevice
Keep the speed limiting steel wire rope under tension, ensure that the rotation of thesteel wire rope is consistent with the rotation of the rope sheave, and also ensure thatthe speed governor can provide necessary braking lifting force.
| Type | SN-SG-OX300 |
| Specification | Sheave diameter:200mm;240mm
Wire rope diameter:6mm;8mm
(the above parameters according to the corresponding specific speed limiter technology parameters matching)
Weight type: Barite(High density of ore). cast iron
Installation position: elevator pit guide rail side
Structure form:swing rod |
 |
| Type | SN-SG-OX200 |
| Specification | Sheave diameter:200mm;240mm
Wire rope diameter:6mm;8mm
(the above parameters according to the corresponding specific speed limiter technology parameters matching)
Weight type: Barite(High density of ore). cast iron
Installation position: elevator pit guide rail side
Structure form:swing rod |
 |
| Type | SN-SG-OX200Q |
| Specification | Sheave diameter:200mm;
Wire rope diameter:6mm;
Weight type: Barite(High density of ore)
Installation position: elevator pit guide rail side |
 |
