Model NO.
IT-L9
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Plenum (Height)
600mm
Extraction
Through Pit in The Ground
Extraction Area
32m2
Grids Carrying Capacity
1, 500kg/Wheel
Walls
50mm Rock Wool Walls
Brightness
>1, 300lux
Air Volume
35, 000m3/H
Empty Loaded Air Speed
0.22m/S
Heats
315kw Heat Exchanger
Maximum Working Temperature
80 Celsius
Controls
CE Standard
Inverter
Schneider
Rated Power
30kw
Noise
<78 dB
Transport Package
Cargo Loaded on Steel Frame Handled by Forklifts
Specification
9000 X 5000 X 3500mm (L X W X H)
Trademark
INFITECH
Origin
Guangzhou, China
HS Code
8419899090
Production Capacity
1000 Sets/Year
After-sales Service:
24 Hours After Service
Warranty:
2 Years
Type:
Spray Booth
Certification:
CE
Substrate:
Steel
Brand:
Infitech
Spray Booth/Car Spray Booth/Paint Booth/Car Spray Painting Machine For Auto Refinishing
IT-SUPER-L9 Spray Booth/Car Spray Booth/Paint Booth/Car Spray Painting Machine provides bigger and higher workspace for vehicles from passenger cars to industrial vans.
It is with downdraft airflow. The air is extracted through 800mm deep pit in the ground. The grids can carry vehicle weight up to 6 tons.
Consistent airflow, premium shadow free lights, efficient air makeup unit and heating unit, and easy-to-operate control makes the booth the ideal solution for every shop owner who pursues lower running cost and maximized profits.
2.SPECIFICATIONS
| ITEMS | SPECIFICATIONS |
| Model | IT-SUPER-L9 Vehicle Painting and Drying Booth |
| Design standard | BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009 |
| Internal dimensions | 9000 X 5000 X 3500mm (L X W X H) |
| External dimensions | 9110 X 6750 X 4160mm (L X W X H) |
| Airflow | Downdraft |
| Plenum (height) | 600mm |
| Extraction | Through pit in the ground |
| Extraction area | 32m2 |
| Grids carrying capacity | 1,500kg/wheel |
| Entrance door | 4240x3400mm (WxH), 1 set |
| Service door | 800x2000mm(WxH), 3 sets |
| Walls | 50mm rock wool walls |
| Ceiling lights (LED) | 12 sets, each 6 X 18W, 1,296W total |
| Sidewall lights (LED) | 10 sets, each 2 X 18W, 360W total |
| Brightness | >1,300LUX |
| Filters | Bag filter, high efficiency ceiling filter, floor filter, exhaust filter |
| Intake/Exhaust unit | Direct-type turbine fan, 2x11KW, SIEMENS motor |
| Air volume | 35,000m3/h |
| Empty loaded air speed | 0.22m/s |
| Heats | 315kw heat exchanger, RIELLO gas burner RS5D |
| Maximum working temperature | 80ºC |
| Controls | CE standard control box |
| Inverter | SCHNEIDER inverter |
| Rated power | 30KW |
3.DETAILS

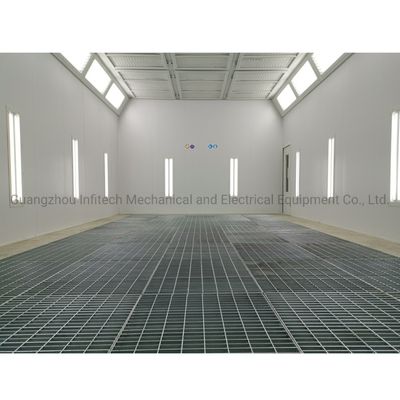

AIRFLOW & BOOTH STRUCTURE
- Downdraught airflow
- 600mm high plenum
- 800mm deep pit for extraction
- Heavy duty grids, carrying capacity at 1,500kg/wheel
- Vertical wall panels
OPTION
- Two rows of grids as option
DOORS & LIGHTS
- Product entrance door: 4240x3400mm, with reinforced square tubes inside
- Service door, 3 sets, 800x2000mm/set
- LED lighting fixtures, IP55 protection grade
Spray Booth/Car Spray Booth/Paint Booth/Car Spray Painting Machine AIR MAKEUP UNIT
- 2x11kw fan unit, 35,000m3/h air volume
- Circulation damper (cylinder drive)
- 315KW heat exchanger, RIELLO gas burner RS5D (two stage)
OPTION
- Direct flame gas heating unit, calorific value: 400,000Kcal/H, higher efficiency and energy-saving
- Explosion-proof motor
- Imported brand impeller, higher performance and lower noise
- Electric heating
CONTROL
- Control box comes standard with manual buttons and SCHNEIDER inverter control
UPGRADE
- Automatic pressure adjustment
- Touch screen control
FILTERS
| Item | Specification |
| Pre-filter | Bag filter |
| Ceiling filter | High efficiency F5 grade filter |
| Floor filter | Fiberglass paint stop filter |
| Extract filter | Activated carbon filter |
FAQ
Q: Is your painting and drying booth CE certified?
A: Yes. We get CE certificate for our painting and drying booths.Q: I look for truck painting and drying booth.
A: Except standard automotive painting and drying booth, Infitech can also supply truck and bus spray booths. Please send your inquiries through, and we will get back to you with more details.Q: Can I install the painting and drying booth outdoors?
A: Yes. But there must be shed to protect the spray booth from rain and snow.Q: I want to have the overspray captured and air filtered through exhaust plenum chambers on the sides of the booth instead of through pit.
A: This is okay. We can supply side downdraft painting and drying booth, which requires no floor excavation.Side downdraft spray booths are most used for heavy machinery or massive objects painting and drying as these products can be loaded on the concrete floor directly, which is more flexible for actual application.
Q: Is the painting and drying booth in new condition?
A: Yes. Infitech is professional manufacturer of CE certified spray booth. We manufacture and supply the booth according to the order. Certainly, we keep some stocks of standard automotie spray booths.We do not sell second hand painting and drying booths.
Q: Where is your office?
A: Our factory and office is located in Baiyun District, Guangzhou, 15 minutes' drive from the airport. Welcome to visit us!Packing and loading

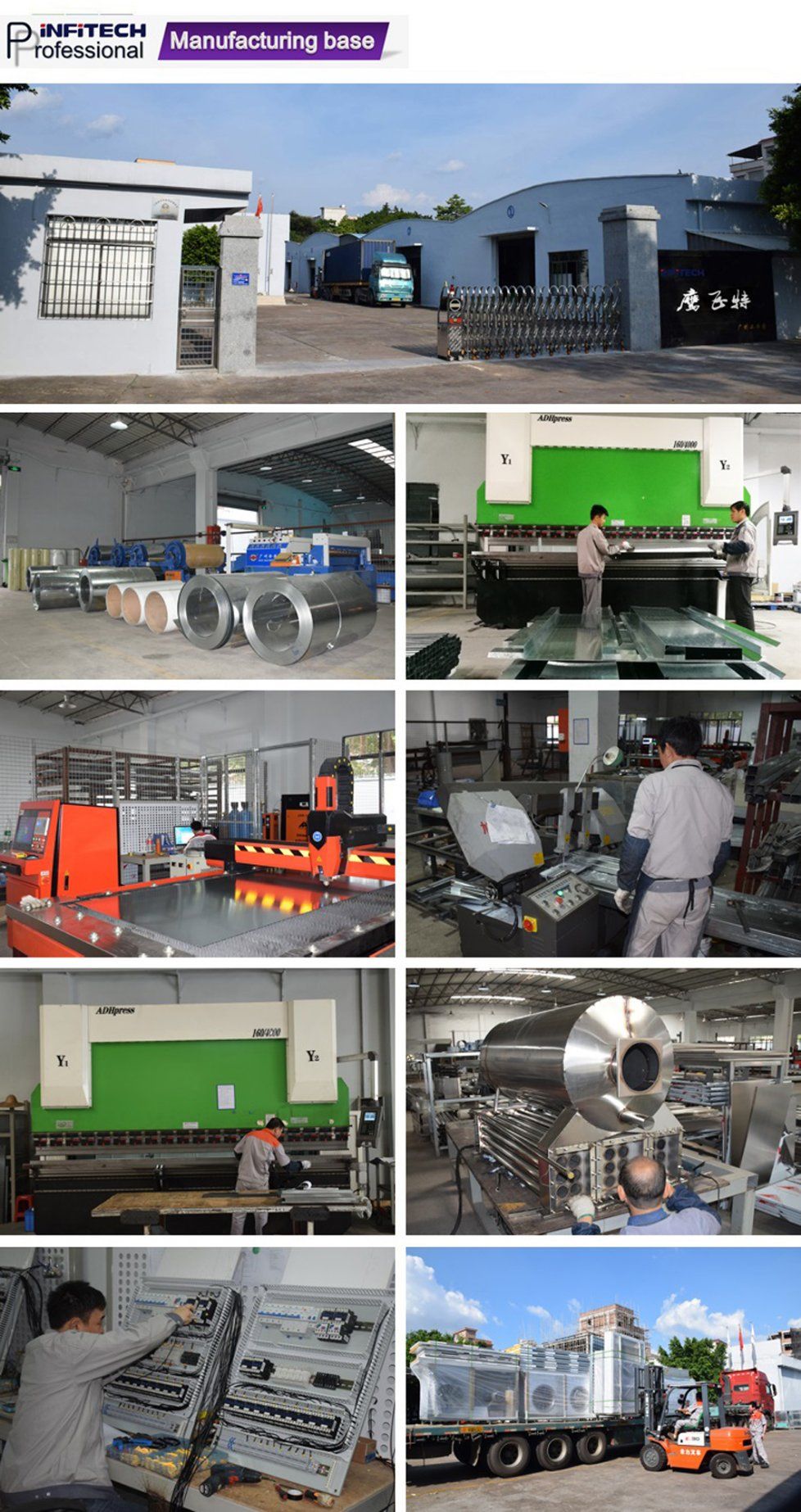

Factory show:
