Model NO.
IT-L15-W6
Walls
60mm Thick Rock Wool Panels
Plenum
800mm High
Filters
High Efficiency Filters
Empty Loaded Air Speed
0.22m/S
Noise
<78dB
Touch Screen Control
Yes
Lighting
LED Lamp
Illumination
>1,000lux
Max. Working Temp.
80 Degree Celsius
Rated Power
50kw
Transport Package
Polyfoam and Metal Frame
Specification
15000x6000x5000mm
Trademark
INFITECH
Origin
Guangzhou, China
HS Code
8419899090
Production Capacity
1000 Pieces/Year
Warranty:
2 Years
Certification:
CE
Fan:
Direct-Drive, 2X11kw
Air Volume:
70,000m3/H
Heat Exchanger:
232kw X 2
Burner:
Riello Gas Burner RS5d X 2
Customized Dry Filter Industrial Large Size Bus Paint Drying Booth for Trucks
1. Design
2. Specifications
3. Details (key components)
4. Packaging & Loading

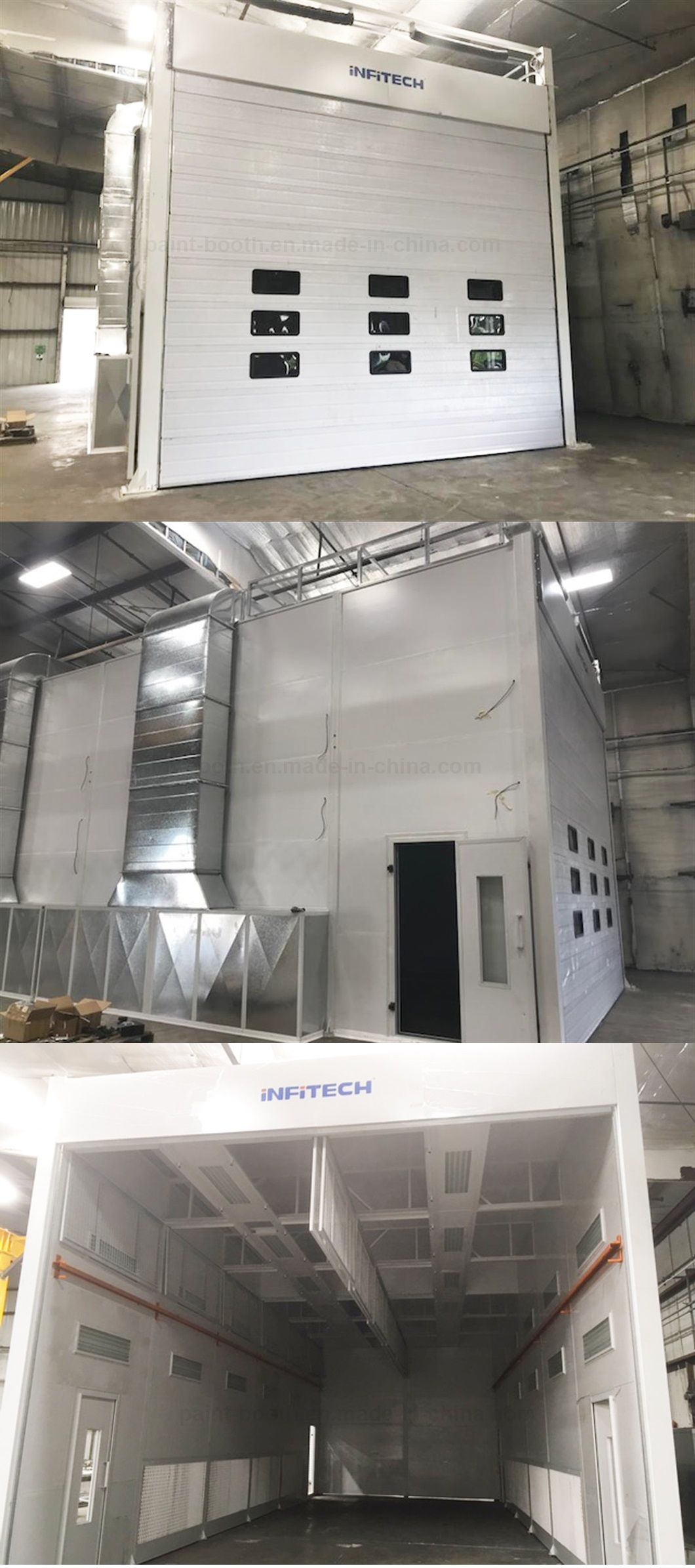

5. Typical projects display
6. About INFITECH
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
Welcome to send your inquiries! :-)
1. Design
2. Specifications
| High Performance CE Certified Spray Booth | |
| ITEMS | SPECIFICATIONS |
| Design standard | BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009 |
| Internal dimensions | 15000 X 6000 X 5000mm (L X W X H) |
| External dimensions | 15160 X 9370 X 6500mm (L X W X H) |
| Plenum | 800mm high |
| Extraction | Side downdraft, through two rows of exhaust plenum chambers |
| Entrance door | 1 set, 5000 X 4500mm (W X H), electric door |
| Personnel door | 4 sets, 800 X 2300mm (W X H) |
| Walls | 60mm rock wool panels |
| Ceiling lighting (LED) | 12 sets, each 4 X18W, 864W total |
| Sidewall lighting (LED) | 24 sets, each 4 X 18W, 1,728W total |
| Brightness | >1,000LUX |
| Filters | Pre-filter, high efficiency filter, floor-level filter, exhaust filter |
| Air intake | Direct-type turbine fan, 2x11KW WEG motor |
| Air exhaust | Direct-type turbine fan, 2x11KW WEG motor |
| Air volume | 70,000m3/h |
| Empty loaded air speed | +/-0.22m/s |
| Maximum working temperature | 80ºC |
| Heat exchanger power | 2x232KW |
| Burner (Max. calorific value) | 2 x RIELLO gas burner RS5D (two stage) |
| Controls | Touch screen control panel Independent control for each working zone |
| Rated power | 50KW |
3. Details (key components)
4. Packaging & Loading
5. Typical projects display
6. About INFITECH
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
Welcome to send your inquiries! :-)
