Model NO.
IT-L16-6B
Paint Mist Treatment
Dry-type
Condition
New
Walls
Rock Wool Walls
Lights
LED Lamp
Illumination
1,000lux
Noise
<78dB
Fan Unit
Direct Drive, 4 X 2X7.5kw
Heats
Electric, 4 Sets X 210kw
Empty Loaded Air Speed
0.32m/S
Extraction
Through Side Exhaust Chambers
Transport Package
Loaded on Pallets Handled by Forklifts
Specification
16000*6000*5000mm
Trademark
INFITECH
Origin
Guangzhou, China
HS Code
8419899090
Production Capacity
1000 Pieces/Year
Type:
Spray Booth
Certification:
CE
Substrate:
Steel
Coating:
Powder Coating
Airflow Direction:
Lateral Undershot-type
Heating Mode:
Electric

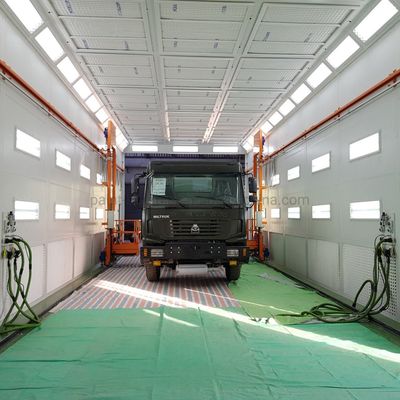

INFITECH CE Standard Side Downdraft Bus Spray Booths
1. Highlights
a. CE standard spray booths
b. Side downdraft airflow, no need for excavating pits
c. Electric heating system, environmental
d. Direct-drive fan unit, with air volume at 4 x 28,000m3/h and empty loaded air speed over 0.3m/s
e. Electric roller shutter door at both ends facilitates the movement of vehicles
f. With man lift for painting the top of vehicles, save labor cost and improve efficiency
2. Specifications
| CE Compliance Bus Spray Booths | |
| ITEMS | SPECIFICATIONS |
| Design standard | BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009 |
| Internal dimensions | 16000 X 6000 X 5000mm (L X W X H) |
| External dimensions | 16200 X 9120 X 5860mm (L X W X H) |
| Airflow | Side Downdraft |
| Plenum | 800mm high |
| Extraction | Through exhaust plenum chambers on both sides |
| Extraction area | 26.4m2 |
| Entrance door | 5500x4500mm (WxH), 2 sets, electric roller shutter door |
| Service door | 800x2300mm(WxH), 4 sets |
| Ceiling lights (LED) | 28 sets, each 4 X 18W, 2,016W total |
| Sidewall lights | 20 sets, each 4 X 18W, 1,440W total |
| Brightness | >1,000LUX |
| Filters | Bag filter, high efficiency ceiling filter, floor filter, exhaust filter |
| Intake/Exhaust unit | Direct-type turbine fan, 4 x 2x7.5KW |
| Air volume | 4x28,000m3/h |
| Empty loaded air speed | 0.32m/s |
| Heats | Electric heating, 4 sets, 210KW per set Gas and diesel heating as option |
| Controls | CE standard control box |
| Inverter | Option |
| Rated power | 915KW |
3. Details
4. Loading
5. Factory photos
6. Typical projects display
