Model NO.
VPB-SD58
Coating
Powder Coating
Airflow Direction
Cross-flow Type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
Used
Transport Package
Full Container
Specification
disassemble
Trademark
VICO
Origin
China
HS Code
8417809090
After-sales Service:
5 Years
Warranty:
2 Years
Type:
Spray Booth
Certification:
CE
Substrate:
Steel
Brand:
Vico

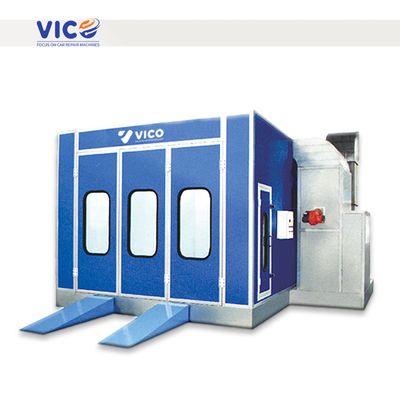

VPB-SD58 DIESEL TYPE PAINTING BOOTH DETAIL SPECIFICATION:
| Outer dimension:(mm) | Inner dimension:(mm) | Front main door size | Total power |
| 7000×5200×3250 | 6900×3900×2650 | 3000(w)*2600(h) | 8kw |
| Booth body system | Board material: EPS insulation board, material thickness :50mm, steel thickness :0.376 mm, using bending galvanized steel roof assembly; Basement: is made of galvanized steel plate, rust prevention processing steel structure assembled, Room body frames: fixed spray door frame adopts steel structure, building frame is made of galvanized steel plate fixation; Get on slope: the configuration of two gratings, three pattern plate and two 600 mm on slope. | ||
| Air circulation system | With 2 sets 3Kw centrifugal blower motor, total air output: 20000 m3 / h; Supply air tank by spraying material, made of galvanized steel plate; Lateral aspirant wind, exhaust duct by high quality galvanized steel, with wind load speed: 0.35m/s; Ventilation rate: 260 time/h. | ||
| Exhaust system | No (optional 1x4Kw centrifugal motor and cabine) | ||
| Purification system | At the top of the high efficiency imported three-dimensional spraying collodion, effective dust filter is less than 10 microns. | ||
| Heating system | Burner: RIELLO G10 type, the maximum heating of 180000 kcal. Each vehicle fuel consumption for 5-7 L/sets , heating speed: 5-8 min (20 to 60 ºC); | ||
| Heat exchange | Use 1.5 mm thickness high-quality stainless steel SUS304 argon arc welding, rational structure, safe and reliable, wide heating transfer area, high heating utilization efficiency. Spray paint status with manually switch | ||
| Lighting system | Side at the top of the building to install lighting tech, top side 45°angle of installation, is consisted of 24 pcs 36 watts led lights , booth inner illuminance more than 800 lux. | ||
| Electric control system | The main loop of the electric control is made of high-quality electronic components assembly, is equipped with multiple protection. Is equipped with lighting switch, temperature time setting, spray paint, spray paint of ordinary temperature, normal temperature switch of the lacquer that bake, fault alarm, etc. 3Ph, 220V/380V /415V, 50Hz/60Hz | ||
| Color | Blue, Red, white grey, orange | ||
