Model NO.
ZXQL3.2
Max Height
310mm
Certification
CS, CE
Condition
New
Sample
Available
Transport Package
Pallet
Specification
3.2T
Trademark
ASAKA
Origin
Hangzhou City, Zhejiang Province
HS Code
8425491000
Production Capacity
50000000PCS/Year
After-sales Service:
12 Months
Warranty:
12 Months
Type:
Mechanical Jack
Structure:
Screw Jack
Capacity (Load):
3.2t
Power Source:
Mechanical

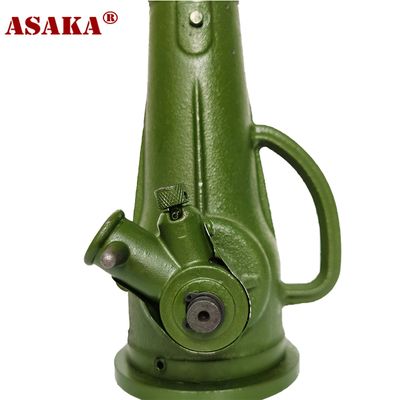

Screw jack, also known as mechanical jack, is driven by manpower through the screw pair, screw or nut sleeve as a lifting part.Ordinary screw jack supports heavy objects by thread self-locking. It has simple structure, but low transmission efficiency and slow return trip.The screw of the self-descending screw jack has no self-locking effect and is equipped with a brake.Loosen the brake, the weight can descend quickly, shorten the return time, but this kind of jack structure is more complex.
Screw jacks can support heavy loads for a long time, the maximum lifting weight has reached 100 tons, widely used.The lower part of the horizontal screw installed, but also to make the weight for a small distance transverse movement.
Screw jacks can support heavy loads for a long time, the maximum lifting weight has reached 100 tons, widely used.The lower part of the horizontal screw installed, but also to make the weight for a small distance transverse movement.
| Model | Capacity (Ton) | Net Weight Per Piece(kg) | QTY/PKG (pcs) | Gross Wegith per PKG (kg) | Lifting Height (mm) | Min Height (mm) | Packing Size(mm) |
| QL3.2 | 3.2T | 4.07 | 5 | 20.62 | 110 | 200 | 6 75 X270 x175 |
| QL5 | 5T | 5.68 | 4 | 22.96 | 130 | 250 | 580 x300 x 190 |
| QL8 | 8T | 5.84 | 4 | 26.80 | 140 | 260 | 640x335x 190 |
| QL10D | 10T | 6.44 | 4 | 27.12 | 75 | 200 | 675x270 x175 |
| QL10 | 10T | 7.76 | 4 | 32.30 | 150 | 280 | 640x335x 190 |
| QL16 | 16T | 9.74 | 2 | 20.04 | 180 | 320 | 365 x360 x 200 |
| QL20D | 20T | 8.98 | 2 | 18.96 | 90 | 225 | 365x360 x 200 |
| QL20 | 20T | 10.94 | 2 | 22.54 | 180 | 325 | 365x360 x 200 |
| QL25 | 25T | 9.98 | 2 | 20.70 | 130 | 275 | 365 x360 X 200 |
| QL32D | 32T | 15.36 | 2 | 31.44 | 150 | 320 | 430X380x215 |
| QL32 | 32T | 17.3 | 2 | 35.44 | 200 | 395 | 435 x425 x230 |
| QL50D | 50T | 25.38 | 1 | 26.44 | 150 | 330 | 495x340 X265 |
| QL50 | 50T | 30 | 1 | 31.48 | 250 | 452 | 495x340 X265 |
| QL100 | 100T | 63.52 | 1 | 66.32 | 200 | 452 | 525x375x385 |
