Model NO.
SOV-CLLRS
Condition
New
Working Pressure
70 MPa
Collapsed Height
232 mm~775 mm
Stroke
50~300 mm
Effective Area
74.8~1398 Cm2
Oil Capacity
374~41940 Cm3
Outside Diameter
140~560 mm
Warranty
2 Years
OEM
Yes
Transport Package
Wooden Cases or Customized Package Are Accepted.
Specification
Weight: 31~1559 kg
Trademark
SOV
Origin
China
HS Code
8412210000
Production Capacity
50 Pieces/Month
Type:
Hydraulic Jack
Structure:
Hydraulic Jack
Capacity (Load):
50 Ton~1000 Ton
Power Source:
Hydraulic
Max Height:
775 mm
Certification:
CE, ISO 9001:2008
Double Acting Mechanical Lock Nut Hydraulic Cylinder SOV CLLRS Series for Heavy Lifitng
Products Features:
1. Double acting, hydraulic return;
2. Mechanical nut locking, provides the most secure protection;
3. Special bearing design withstands side-loads up to 10%;
4. Built-in safety valve helps to prevent damage in case of accidental over-pressurization;
5. Scraper seal design reduces contamination, extending cylinder life;
6. Standard rigid deep groove saddle, can choose a 5 degree tilt saddle to adapt to component unevenly situation
7. Optional tube or plate hydraulic check valve or one-way throttle valve, to ensure the safety of the lifting and falling processes;
8. 3/8 "- 18NPT coupler and dust cap included on all models.
Field Applications:
- Long term supporting for bridge maintenance.
- Long term supporting for high-speed rail box girder prefabricating.
- Long term supporting for large-scale steel structure welding.
- Synchronous pushing of prefabricated beam in high speed rail construction.
- Synchronous lifting and transferring of high-speed rail box girder.
- Synchronous pushing of prefabricated beam in high speed rail construction.
Technical Parameters:
| Model | Capacity | Working Pressure | Coll. Height A | Stroke | Effective Area | Oil Capacity | Outside Diameter D | Bore Diameter E | Saddle Diameter J | Weight |
| (T) | (MPa) | (mm) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (kg) | |
| SOV-CLLRS-502 | 50 | 70 | 232 | 50 | 74.8 | 374 | 140 | 104.8 | 80 | 31 |
| SOV-CLLRS-506 | 50 | 70 | 332 | 150 | 74.8 | 1122 | 140 | 104.8 | 80 | 48 |
| SOV-CLLRS-5012 | 50 | 70 | 482 | 300 | 74.8 | 2244 | 140 | 104.8 | 80 | 77 |
| SOV-CLLRS-1002 | 100 | 70 | 270 | 50 | 141.9 | 710 | 180 | 141.9 | 115 | 59 |
| SOV-CLLRS-1006 | 100 | 70 | 370 | 150 | 141.9 | 2129 | 180 | 141.9 | 115 | 86 |
| SOV-CLLRS-10012 | 100 | 70 | 520 | 300 | 141.9 | 4257 | 180 | 141.9 | 115 | 132 |
| SOV-CLLRS-1502 | 150 | 70 | 290 | 50 | 210.6 | 1053 | 205 | 171.5 | 130 | 80 |
| SOV-CLLRS-1506 | 150 | 70 | 390 | 150 | 210.6 | 3159 | 205 | 171.5 | 130 | 114 |
| SOV-CLLRS-15012 | 150 | 70 | 540 | 300 | 210.6 | 6318 | 205 | 171.5 | 130 | 170 |
| SOV-CLLRS-2002 | 200 | 70 | 300 | 50 | 286 | 1430 | 265 | 203.0 | 155 | 131 |
| SOV-CLLRS-2006 | 200 | 70 | 400 | 150 | 286 | 4290 | 265 | 203.0 | 155 | 183 |
| SOV-CLLRS-20012 | 200 | 70 | 550 | 300 | 286 | 8580 | 265 | 203.0 | 155 | 265 |
| SOV-CLLRS-2502 | 250 | 70 | 310 | 50 | 360.9 | 1805 | 285 | 228.6 | 180 | 156 |
| SOV-CLLRS-2506 | 250 | 70 | 410 | 150 | 360.9 | 5414 | 285 | 228.6 | 180 | 215 |
| SOV-CLLRS-25012 | 250 | 70 | 560 | 300 | 360.9 | 10827 | 285 | 228.6 | 180 | 307 |
| SOV-CLLRS-3002 | 300 | 70 | 330 | 50 | 428.7 | 2144 | 310 | 241.3 | 195 | 196 |
| SOV-CLLRS-3006 | 300 | 70 | 430 | 150 | 428.7 | 6431 | 310 | 241.3 | 195 | 264 |
| SOV-CLLRS-30012 | 300 | 70 | 580 | 300 | 428.7 | 12861 | 310 | 241.3 | 195 | 371 |
| SOV-CLLRS-4002 | 400 | 70 | 360 | 50 | 571.2 | 2856 | 360 | 279.4 | 225 | 286 |
| SOV-CLLRS-4006 | 400 | 70 | 460 | 150 | 571.2 | 8568 | 360 | 279.4 | 225 | 375 |
| SOV-CLLRS-40012 | 400 | 70 | 610 | 300 | 571.2 | 17136 | 360 | 279.4 | 225 | 514 |
| SOV-CLLRS-5002 | 500 | 70 | 395 | 50 | 715.6 | 3578 | 400 | 317.5 | 218 | 386 |
| SOV-CLLRS-5006 | 500 | 70 | 495 | 150 | 715.6 | 10734 | 400 | 317.5 | 218 | 501 |
| SOV-CLLRS-50012 | 500 | 70 | 645 | 300 | 715.6 | 21468 | 400 | 317.5 | 218 | 679 |
| SOV-CLLRS-6002 | 600 | 70 | 420 | 50 | 847.4 | 4237 | 440 | 342.9 | 228 | 495 |
| SOV-CLLRS-6006 | 600 | 70 | 520 | 150 | 847.4 | 12711 | 440 | 342.9 | 228 | 631 |
| SOV-CLLRS-60012 | 600 | 70 | 670 | 300 | 847.4 | 25422 | 440 | 342.9 | 228 | 841 |
| SOV-CLLRS-8002 | 800 | 70 | 470 | 50 | 1128 | 5640 | 505 | 387.4 | 296 | 727 |
| SOV-CLLRS-8006 | 800 | 70 | 570 | 150 | 1128 | 16920 | 505 | 387.4 | 296 | 905 |
| SOV-CLLRS-80012 | 800 | 70 | 720 | 300 | 1128 | 33840 | 505 | 387.4 | 296 | 1181 |
| SOV-CLLRS-10002 | 1000 | 70 | 525 | 50 | 1398 | 6990 | 560 | 431.8 | 298 | 999 |
| SOV-CLLRS-10006 | 1000 | 70 | 625 | 150 | 1398 | 20970 | 560 | 431.8 | 298 | 1219 |
| SOV-CLLRS-100012 | 1000 | 70 | 775 | 300 | 1398 | 41940 | 560 | 431.8 | 298 | 1559 |

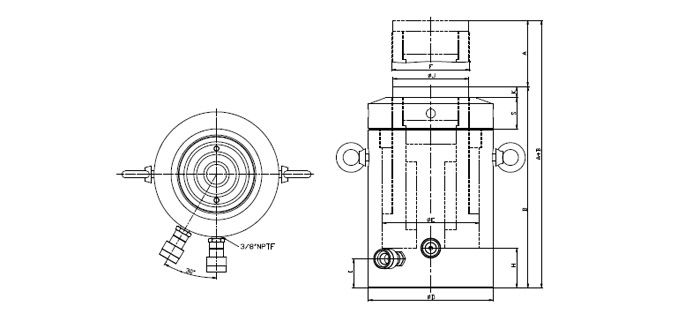

Products Photo&Drawing:
Application Photo:
Certifications
Packaging & Shipping:
Wooden case & Shipping is designated by customer
Our Services:
One Year Warranty,repair and service for the whole life,question report response in 24 hours,and reply in 48 hours.
About our factory:
1.SOV Hydraulic Technology (Shanghai)Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
2. Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
3. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our Team:
FAQ:
Q1: How can contact sales?
A1: Please call: 0086 21 685 61366 for pre-sales or click the contact find our website and email address.
Q2: How can I buy SOV products in my country?
A2: Please send us an inquiry or email, we will reply to you if there is distributor in your country.
Q3: Can I have SOV products catalog and price list?
A3: Please visit our English website: findtextile.com/store/sov-china to download our E-catalog, and send us an email for price list.
Q4: How long does it take to get the product if I place an order?
A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7days. If it is by sea shipment, it will take 15-45days depending on different locations.
Q5: How to make payment?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.
Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
