Model NO.
WP400B
Transport Package
Plywood Case
Specification
hydraulic drive
Trademark
Welping
Origin
China
HS Code
8515809090
Production Capacity
20000 Pieces/Year
Welding Range:
110-400mm
Cooling Way:
Natural Cooling
Control:
Semi-Automatic
Frequency Range:
Low Frequency
Electric Current:
AC
Type:
Resistance Butt Welder
Technical parameters
| Model | WP400B | |
| Suitable materials | PE, PP, PVDF | |
| Range | 110-125-140-160-180-200-225-250-280-315-400mm | |
| Power supply | 220V | |
| Frequency | 50 Hz | |
| Total power | 9.1KW | |
| Heating plate | 6.5KW | |
| Planing tool | 1.1KW | |
| Hydraulic station | 1.5KW | |
| Max.Pressure | 8.0MPa | |
| Hydraulic oil | L-HM46 | |
| Max.Temperature of heating plate | 270ºC | |
| Temp.Deviation in Surface | ±5ºC | |
| Total Weight | 376kg | |
| Net weight | 370kg | |
Selection Chart for Budget Hydraulic Butt Welding
| SN | Model | Welding range | Power supply | Remarks |
| 1 | WP160B | 63-75-90-110-125-140-160 (mm) | 220V, 50Hz | |
| 2 | WP200B | 63-75-90-110-125-140-160-180-200 (mm) | 220V, 50Hz | |
| 3 | WP250B | 90-110-125-140-160-180-200-225-250 (mm) | 220V, 50Hz | |
| 4 | WP315B | 110-125-140-160-180-200-225-250-280-315 (mm) | 220V, 50Hz | |
| 5 | WP355B | 160-180-200-225-250-280-315-355 (mm) | 380V, 50Hz | |
| 6 | WP400B | 160-180-200-225-250-280-315-355-400 (mm) | 380V, 50Hz | |
| 7 | WP450B | 200-225-250-280-315-355-400-450 (mm) | 380V, 50Hz | |
| 8 | WP500B | 250-280-315-355-400-450-500 (mm) | 380V, 50Hz | |
| 9 | WP630B | 315-355-400-450-500-560-630 (mm) | 380V, 50Hz |

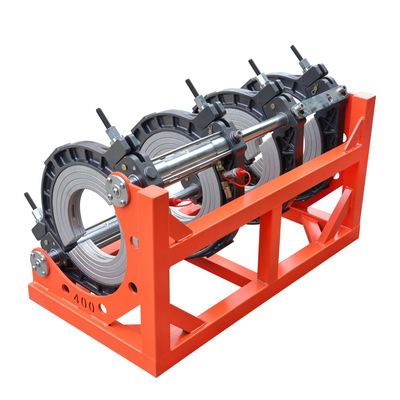

Basic frame
Featured by
· Italy DNP quick coupler
· Chromated hydraulic cylinder made
of 1045(ASTM)/S45(JIS)/C45(DIN) steel
· Chromated integral shaft made
of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying
treatment
Featured by
· Italy DNP quick coupler
· Chromated hydraulic cylinder made
of 1045(ASTM)/S45(JIS)/C45(DIN) steel
· Chromated integral shaft made
of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying
treatment
Hydraulic station
Featured by
Featured by
- Integrated LCD display and control
- 220V asynchronous motor
- CHNT electricity leadkage protection switch
- Ø100mm presure meter
- Relief valve, regulating valve, maintaining valve
Planing tool
Featured by
Featured by
- HSS blade with double edge
- Die-cast aluminum trimmer plate, durable and anti-corrosion
- Aluminum alloy frame of motor with good heat dissipation performance
- Carbon brush motor with pure copper wire
Heating plate
Featured by
Featured by
- Bakelite handle with high insulating property and thermal insulation
- Thermocouple temperature sensor
- Heating element
- Teflon Coating imported from Daikin in Japan
- Aviation plug
General terms
1. Payment
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead time
Standard items and light-OEM items, WELPING can finish in around 10-15 days.
3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free.
4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. About agency business
We look forward to cooperate with influential company.
