Model NO.
HBJ-12
Speed of Table
0.67rpm
Size of Table
1200mm
Turning Power
1.1kw
Tilt
0.75
Max Gravity Distance
100mm
Max Turning Distance
2100mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 1, 200kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Type:
Welding Turntable
Rotaion Speed:
0.05-0.5rpm
Max Eccentricity Distance:
150mm
Voltage:
220V 380V 415V 440V 480V 600V
Welding Tilter Type:
Flexible Combination
Condition:
New
HBJ-12 Type Welding Positioner For Flange And Pipe Turning Table Welding And Positioning Equipment
Quickly Details:
Type: Welding Positioner Turntable / Welding Turning Table
Brand:MISA
Condition:100% brand new
Model number:HBJ
Capacity:100kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

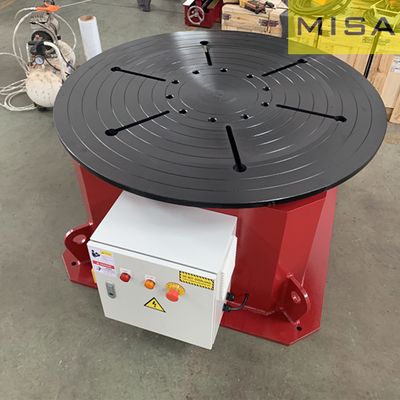

Product Photo:
Product Parameter:
| Model | Rated load Cap (tons) | Power (kw) | Max Gravity Distance (mm) | Max centroid Eccentricity (mm) | Table | Max Rotation Ф@ 90 degree | Tilt Angle (degree) | |||
| Turning | Tilt | Speed(rpm) | Diameter (mm) | |||||||
| Rotation (variable) | Tilt (constant) | |||||||||
| HBJ-01 | 0.1 | 0.06 | /. | 100 | 150 | 0.40~4.0 | man. | 400 | 600 | 0~90 |
| HBJ-03 | 0.3 | 0.37 | /. | 100 | 150 | 0.10~1.0 | man. | 600 | 800 | 0~90 |
| HBJ-06 | 0.6 | 0.75 | 0.75 | 100 | 150 | 0.09~0.9 | 1.1 | 1000 | 1500 | 0~90 |
| HBJ-12 | 1.2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.67 | 1200 | 2050 | 0~120 |
| HBJ-20 | 2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-30 | 3 | 1.5 | 2.2 | 200 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-50 | 5 | 3 | 3 | 300 | 300 | 0.05~0.5 | 0.14 | 1500 | 2500 | 0~120 |
| HBJ-80 | 8 | 3 | 3 | 300 | 300 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-100 | 10 | 3 | 4 | 400 | 400 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-150 | 15 | 3 | 5.5 | 500 | 200 | 0.05~0.5 | 0.14 | 2200 | 3400 | 0~120 |
| HBJ-200 | 20 | 4 | 7.5 | 630 | 200 | 0.05~0.5 | 0.14 | 2500 | 3400 | 0~120 |
Welding positioners enable large, bulky or awkward workpieces to be accurately positioned
to achieve the 'down hand' welding position without the need for overhead cranes
or additional manpower or handling equipment.
The 'down hand' welding position is essential to achieve efficient welding procedures,
maximize deposition rate and meet the welders demand for fast, safe and efficient production requirements.
to achieve the 'down hand' welding position without the need for overhead cranes
or additional manpower or handling equipment.
The 'down hand' welding position is essential to achieve efficient welding procedures,
maximize deposition rate and meet the welders demand for fast, safe and efficient production requirements.
Detail Photo:
Application:
Welding Turning Tablecan be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry.
Product Description:
The Welding Turning Table also called welding positioning equipment, is mainly used for some special structures, construction machines, small round workpieces, and more.Welding positioner is generally consists of worktable rotation mechanism, turnover mechanism and electric control system. The workpiece can be reach to the suitable position through worktable rotating and overturning. The worktable rotating controlled by frequency stepless conversion to achieve a best welding speed.
Packing and Shipment:
Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
