Model NO.
MMA-255G
Electric Current
Inverter
Work Form
IGBT
Type
Manual Metal-Arc Welder
Transport Package
Carton Box
Specification
455x220x362mm
Trademark
AWT
Origin
China
HS Code
8515809090
Production Capacity
200000PCS/Year
Cooling Way:
Fan Cooling
Style:
Portable
Frequency Range:
Intermediate Frequency
MMA-255G capable with 6010 cellulosic electrode and apply to 100m cable wire without current lose

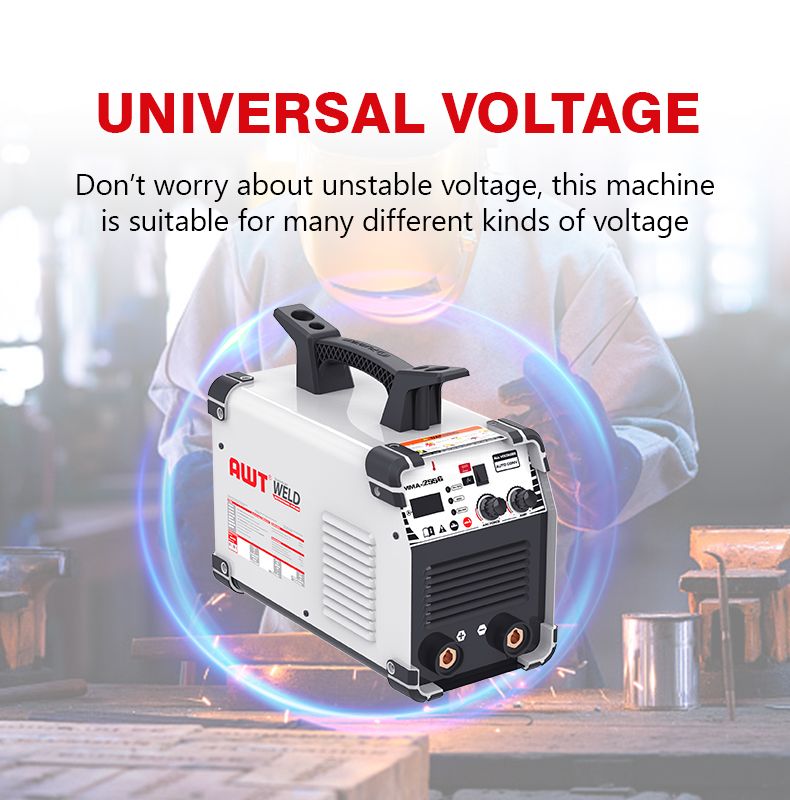

·Portable , universal Voltage ( 96-560V) MMA / DC TIG Welder
·New Generation IGBT Inverter Technology
·High duty cycle and heavy no-load voltage
·Built-in Hot Start, anti stick and Adjustable Arc force
·Ideal for welding of carbon steels, low-alloy steels and stainless steels
·Excellent welding performance with Electrodes diameters from 1.6 mm. to 5.0 mm.
·Easy-to-use and user-friendly control panel
·Stepless welding current adjustment knob
·Equipped with thermal protection indicator light
| Trademark | AWT | Certificate | CE |
| Parameter / Model | MMA88-255G | Power Voltage | 110V/220V /380V/440V |
| input power (KVA) | 14 | Input Voltage Frequency(Hz) | 50/60HZ |
| No load voltage (V) | 85V | MMA Output Current Range TIG Output Current Range | 20-215A 20-215A |
| duty cycle 40°C (%) | 40°40%25°100% | Efficiency(%) | 85% |
| Usable Electrode(mm) | 1.6-5.0MM | system protection | IP21S |
| Insulation class | F | weight (kg) | 8.5KG |
·Portable , universal Voltage ( 96-560V) MMA / DC TIG Welder
·New Generation IGBT Inverter Technology
·High duty cycle and heavy no-load voltage
·Built-in Hot Start, anti stick and Adjustable Arc force
·Ideal for welding of carbon steels, low-alloy steels and stainless steels
·Excellent welding performance with Electrodes diameters from 1.6 mm. to 5.0 mm.
·Easy-to-use and user-friendly control panel
·Stepless welding current adjustment knob
·Equipped with thermal protection indicator light
