Model NO.
HB5
Welding Turning Rolls Type
Standard
Welding Tilter Type
Traditional Special
Condition
New
Color
as Per Customers′ Requirements
Optional
Foot Switch, Chuck
Delivery Time
Timely
Certificate
CE, ISO
Transport Package
Wooden
Specification
Standard
Trademark
Datang
Origin
China
HS Code
84688000
Production Capacity
50 Sets Per Month
Type:
Welding Positioner
Structure:
Gantry
Rotaion Speed:
Standard
Max Eccentricity Distance:
Standard
Tilting Angle:
0-120°
Voltage:
Customized

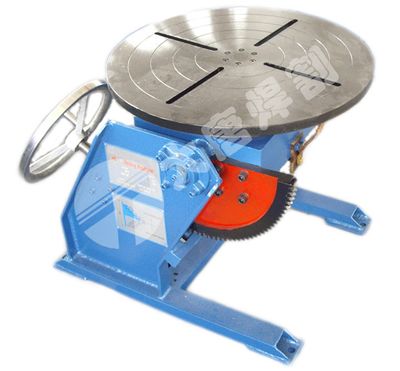

Welding positioner consists of working table rotation unit and tilting unit. By the working table elevating, the workpiece can be
positioned and achieve the welding position by the worktable tilting and rotating. The working table rotating is controlled by variable
frequency and stepless, which could get the satisfied weldingDatang welding & cutting company focused on welding positioner design,
development, production, the light duty welding positioner manufacturing standards in the domestic leading level, as people have higher requirements of welding automation and labor costs continue to increase, enterprises for automatic, semi-automatic welding with auxiliary
demand has grown rapidly in recent years. To this end our company produced the ordinary seat type welding positioner, Configurable for
special welding chuck, combined positioner for enterprises to diversify choice, various welding positioner used to help workers work more convenient, greatly improving production efficiency and improve product quality.
Welding positioner withe tilting and rotating function, which can make Work piece mounted on the worktable to ideal position for welding or assembling. Worktable rotating speed by VFD (inverter)to achieve satisfactory welding speed.
For the reason of eccentric-distance and gravity-center-distance, longer work pieces and bigger gravity-center work pieces should choose large models. If standard welding positioner cannot meet the jobs, please contact us for special design.
positioned and achieve the welding position by the worktable tilting and rotating. The working table rotating is controlled by variable
frequency and stepless, which could get the satisfied weldingDatang welding & cutting company focused on welding positioner design,
development, production, the light duty welding positioner manufacturing standards in the domestic leading level, as people have higher requirements of welding automation and labor costs continue to increase, enterprises for automatic, semi-automatic welding with auxiliary
demand has grown rapidly in recent years. To this end our company produced the ordinary seat type welding positioner, Configurable for
special welding chuck, combined positioner for enterprises to diversify choice, various welding positioner used to help workers work more convenient, greatly improving production efficiency and improve product quality.
Welding positioner withe tilting and rotating function, which can make Work piece mounted on the worktable to ideal position for welding or assembling. Worktable rotating speed by VFD (inverter)to achieve satisfactory welding speed.
For the reason of eccentric-distance and gravity-center-distance, longer work pieces and bigger gravity-center work pieces should choose large models. If standard welding positioner cannot meet the jobs, please contact us for special design.
| Technical Parameter | Model | |||||||||
| HB05 | HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | HB200 | |
| Rated loading (Kg) | 50 | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | 20000 |
| Max eccenteric Distance(mm) | / | / | 100 | 200 | 200 | 250 | 250 | |||
| Max distance of Gravity center (mm) | / | / | 150 | 200 | 300 | 400 | 500 | 600 | ||
Worktable size (mm) | Φ320 | Φ360 | φ600 | φ1000 | φ1200 | φ1400 | φ1500 | φ1800 | φ2000 | φ2200 |
| Tilting angle (°) | 0°~+90° | 0°~+120° | ||||||||
| Rotating speed (rpm) | 15 | 5 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | |||||
| Rotating Power(KW) | 0.12 | 0.12 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | ||||||
| Tilting Power(kW): | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | |||
| Speed adjusting way | Rotating speed VFD | |||||||||
| Tilting speed constant | ||||||||||
