Model NO.
WP400A
Applicable
PE, PP, PVDF
Power Supply
380V 50Hz
Overall Power
8.7kw
Max Temperature
270ºC
Heating Plate Surface Temperature
170ºC-250ºC
Temperature Deviation
±7ºC
Pressure Adjusting
0-8.0MPa
Heating Plate
6.5kw
Planing Tool
1.1kw
Hydraulic Station
1.1kw
Volume
1.412cbm
Transport Package
Plywood Case
Specification
O. D. 180-400mm
Trademark
welping
Origin
China
HS Code
8515809090
Production Capacity
20000sets/Year
Welding Range:
180-400mm
Cooling Way:
Air Cooling
Control:
Semi-Automatic
Frequency Range:
Intermediate Frequency
Electric Current:
AC
Type:
Hydraulic Butt Welder
Welping 400mm HDPE Pipe Fusion Welding Machine/ Butt Fusion Welder equipment
| Model | WP400A | |
| Suitable materials | PE, PP, PVDF | |
| Range | 180-200-225-250-280-315-355-400mm | |
| Power supply | 380V | |
| Frequency | 50 Hz | |
| Total power | 8.7 KW | |
| Heating plate | 6.5 KW | |
| Planing tool | 1.1KW | |
| Hydraulic station | 1.1KW | |
| Max.Temperature of heating plate | 270ºC | |
| Pressure gauge | 16Mpa | |
| Pressure range | 0-6.3Mpa | |
| Temp.Deviation in Surface | ±7ºC | |
| Total Weight | 368kg | |
| Net weight | 311kg | |

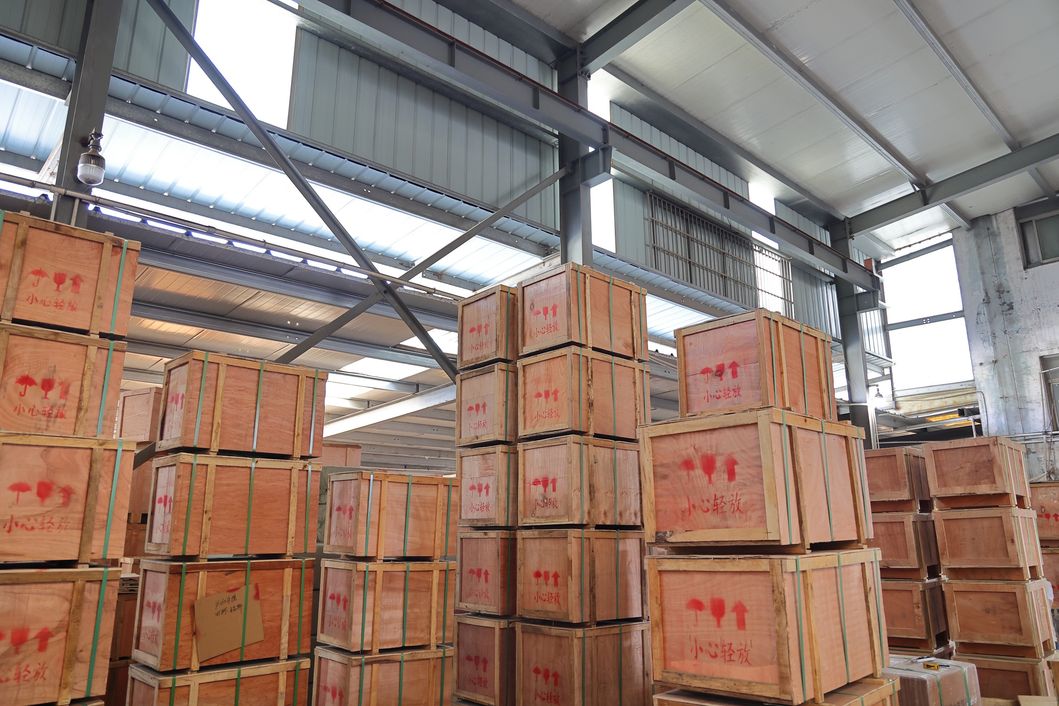

| Basic Frame | plywood case | 1320*670*750mm 0.663CBM |
| Hydraulic station | plywood case | 670*560*690mm 0.259CBM |
| planing tool & heating plate | plywood case | 810*560*1080mm 0.49CBM |

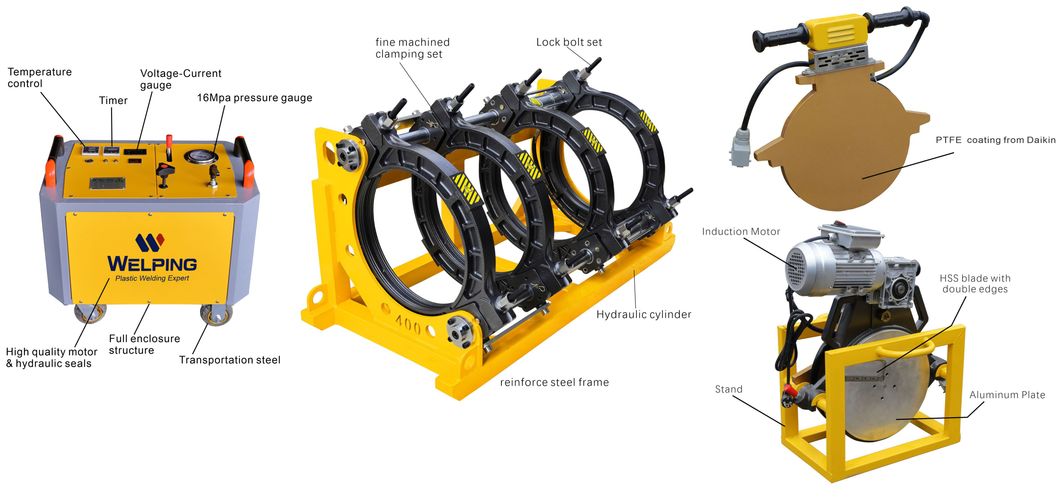

Basic Frame.
- 4 sets quick coupling helps operator to prepare the machine better before and after welding
-Using integral shaft ensure the chassis strength
- 4 sets quick coupling helps operator to prepare the machine better before and after welding
-Using integral shaft ensure the chassis strength
Heating Plate.
-Cast aluminum body with Anti-stick PEFT coating from Daikin
-Qualified built-in heating elements, swift and steady temperature rising
-Standard equipped with aviation plug and heavy duty cable, ensures operation safety
-Cast aluminum body with Anti-stick PEFT coating from Daikin
-Qualified built-in heating elements, swift and steady temperature rising
-Standard equipped with aviation plug and heavy duty cable, ensures operation safety
Trimmer.
-ensures no loosing and stucking in operation
-Powerful copper-wiring motor Durable, double edges HSS blade
-connected wires and more reasonable layout
-ensures no loosing and stucking in operation
-Powerful copper-wiring motor Durable, double edges HSS blade
-connected wires and more reasonable layout

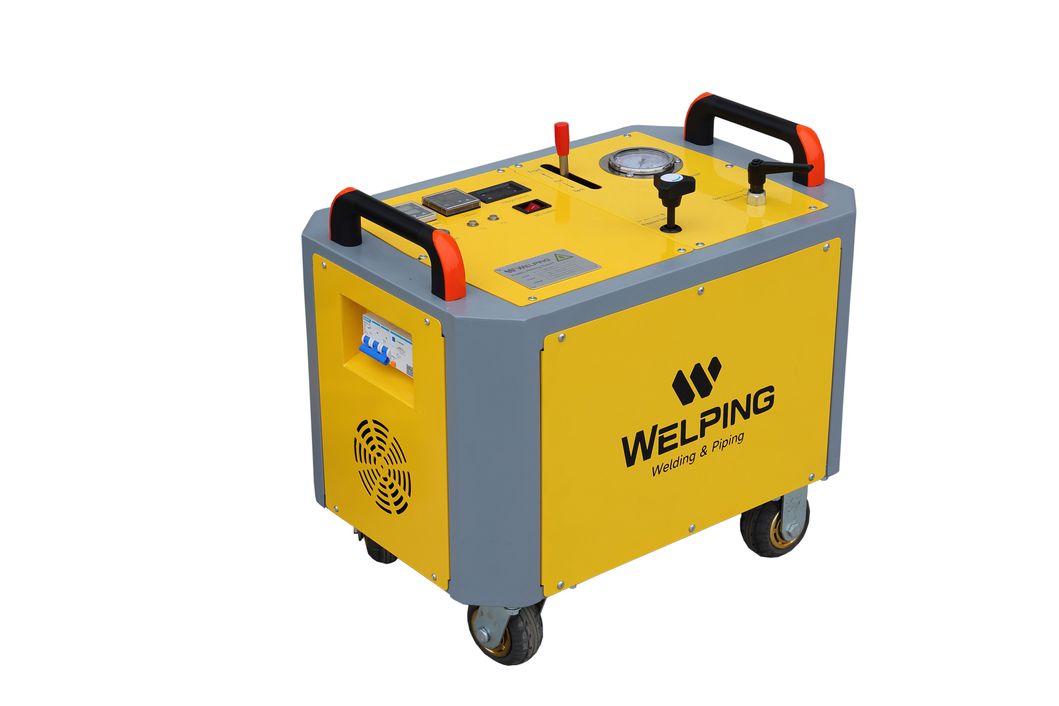

Hydraulic Power Station.
-The control panel centralized in the hydraulic unit enables operators to set welding parameter and execute welding procedure conveniently.
-Enclosure design, shielding splash and dirt and wheels, for easy transportation
-The control panel centralized in the hydraulic unit enables operators to set welding parameter and execute welding procedure conveniently.
-Enclosure design, shielding splash and dirt and wheels, for easy transportation
| S/N | Model | Standard Welding Range (mm) | Optional Reducers (mm) | Power Supply |
| 1 | WP160A | 63-75-90-110-125-140-160 | 220V-50Hz | |
| 2 | WP200A | 63-75-90-110-125-140-160-180-200 | 220V-50Hz | |
| 3 | WP250A | 90-110-125-140-160-180-200-225-250 | 63-75 | 220V-50Hz |
| 4 | WP315A | 90-110-125-140-160-180-200-225 -250-380-315 | 220V-50Hz | |
| 5 | WP355A | 160-180-200-225-250-380-315-355 | 110-125-140 | 220V-50Hz 380V-50Hz |
| 6 | WP400A | 180-200-225-250-380-315-355-400 | 380V-50Hz | |
| 7 | WP450A | 200-225-250-380-315-355-400-450 | 180 | 380V-50Hz |
| 8 | WP500A | 250-380-315-355-400-450-500 | 180-200-225 | 380V-50Hz |
| 9 | WP630A | 315-355-400-450-500-560-630 | 380V-50Hz | |
| 10 | WP800A | 630-710-800 | 450-500-560 | 380V-50Hz |
| 11 | WP1000A | 800-900-1000 | 560-630-710 | 380V-50Hz |
| 12 | WP1200A | 1000-1100-1200 | 800-900 | 380V-50Hz |
| 13 | WP1400A | 1000-1200-1400 | 380V-50Hz | |
| 14 | WP1600A | 1200-1400-1600 | 380V-50Hz |
1. Payment
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead time
Standard items and light-OEM items, WELPING can finish in around 10-15 days.
3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free.
4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. About agency business
We welcome sincere and influential customers to discuss cooperation matters with us.
