Model NO.
KTG-5
Suitable Pipe Diameter
250-2800mm
Rubber Roller Diameter
225mm
Roller Linear Speed
100-1000mm/Min
Lead Time
5 Days
Colour
Customized
Warranty
1 Year
Wheels Quantity
4 Wheels
Wheel Material
Polyurethane and Steel Wheel Rotator
Adjustable Way
Screw Adjustable Welding Rotator
Payment
T/T L/C
Drive Motor
0.55kw*2
Active Rotator Size
1310*680*450mm
Driven Rotator Size
1310*280*450mm
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
10000 PCS/Year
Type:
Welding Turning Rolls
Structure:
Platform
Rotaion Speed:
0.05-0.5rpm
Condition:
New
Model:
Ktg-5
Max Loading Weight:
5ton

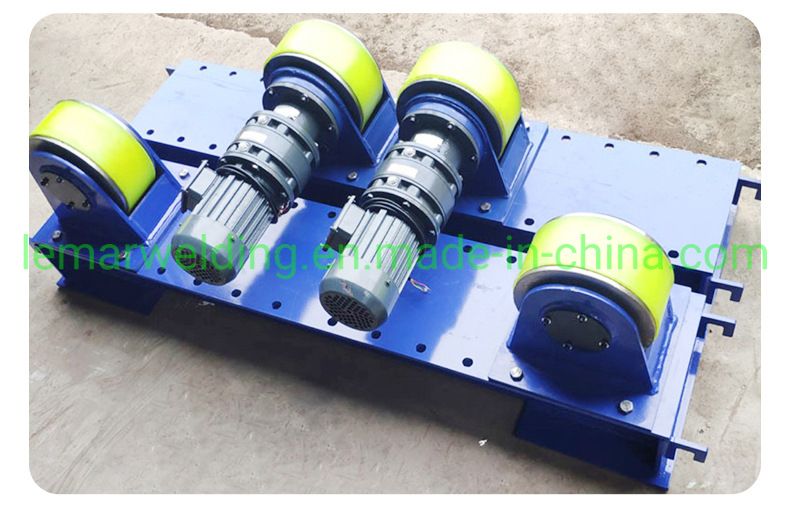

5000kg Conventional Lead screw Welding rotators with Electrical drive
Screw Adjustable Welding Rotator contains one drive unit and one idler unit Welding turning rolls.
The distance between wheels can be adjusted to fit the particular work-piece properly within the specified range by moving positioning bolt or screw manually or motorized.
The wheels of the rotator are constructed of polyurethane (PU), a robust and long-lasting material, both inside and out.
In order to drive the gearbox continuously changing variable speed and achieve low noise and stable movement, the driving unit is supported by an AC variable frequency motor and famous inverter.
Electric systems that are suited for 50HZ/6PHZ 110-600V are adopted by electrical appliances to meet CE or UL standards.
Specifications:
The welding rotator series includes models that are self-aligning, adjustable, vehicle-mounted, tilting, and anti-drift.
They are used to rotate the cylindrical workpiece for TIG MIG SAW Circumferential welding,or for assembling.
Features as below:
1. To adapt to the diameter of the work piece, the adjustable welding rotator's center distance can be changed using lead screws or designated screw holes.
2. The roller driver uses a cycloidal planetary gear reducer or a worm reduction gear mode and is dual-motor operated.
3. The roller comes in three different configurations depending on the needs of the customer: sub-rubber tire roller, steel wheels, and steel and plastic combination wheels. It can also be used to manage other pieces of equipment.
Screw Adjustable Welding Rotator contains one drive unit and one idler unit Welding turning rolls.
The distance between wheels can be adjusted to fit the particular work-piece properly within the specified range by moving positioning bolt or screw manually or motorized.
The wheels of the rotator are constructed of polyurethane (PU), a robust and long-lasting material, both inside and out.
In order to drive the gearbox continuously changing variable speed and achieve low noise and stable movement, the driving unit is supported by an AC variable frequency motor and famous inverter.
Electric systems that are suited for 50HZ/6PHZ 110-600V are adopted by electrical appliances to meet CE or UL standards.
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
KTG-5 | 5000 | Φ250-2800 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive (VFD)
|
KTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
KTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
KTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
KTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
KTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
KTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
KTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
KTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
KTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| KTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| KTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
They are used to rotate the cylindrical workpiece for TIG MIG SAW Circumferential welding,or for assembling.
Features as below:
1. To adapt to the diameter of the work piece, the adjustable welding rotator's center distance can be changed using lead screws or designated screw holes.
2. The roller driver uses a cycloidal planetary gear reducer or a worm reduction gear mode and is dual-motor operated.
3. The roller comes in three different configurations depending on the needs of the customer: sub-rubber tire roller, steel wheels, and steel and plastic combination wheels. It can also be used to manage other pieces of equipment.
