Model NO.
EASY MIG-140BV
Rated Input Voltage (V)
220V/110V
Rated Input Frequency (Hz)
50/60Hz
Rated Input Power
4.5kw
Non-Load Voltage (V)
60V
Output Curent Range (a)TIG
120A
Output Curent Range (a)MMA
120A
Output Curent Range (a)MIG
140A
Rated Duty Cycle (%)
40%
Efficiency (%)
85%
Suggested Electrode Max.
3.2mm
Wire Spool Size Suppported
1kg
Category
Gas+No Gas
N.W/G.W
8.25kgs/10.25kgs
New Product
2022
Transport Package
Honeycomb Box
Specification
550*170*300mmmm
Trademark
DECAPOWER
Origin
China
HS Code
8515390000
Production Capacity
15000PCS/Month
Cooling Way:
Air Cooling
Shielding Gas:
CO2+Ar
Control:
Semi-Automatic
Frequency Range:
50/60Hz
Electric Current:
DC
Type:
IGBT

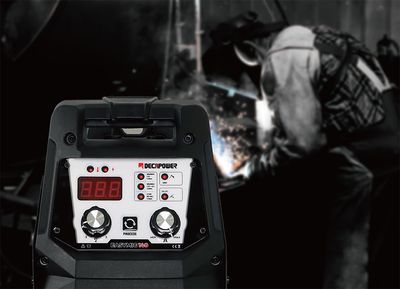

Decapower 110V/220V Synergy Co2 Gasless 140A MIG MMA TIG Inverter Welding Machine
Products Description
Product Paramenter
| Model# | EASYMIG-120 | EASYMIG-120 BV | EASYMIG-140 | EASYMIG-140BV |
| Type | IGBT | IGBT | IGBT | IGBT |
| Rated Input Voltage (V) | 220V | 110V/220V | 220V | 110V/220V |
| Rated input frequency (Hz) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Rated input Power (KVA) | 3.7KW | 3.7KW | 4.5KW | 4.5KW |
| Non-load Voltage (V) | 60V | 60V | 60V | 60V |
| Output curent range (A)TIG | 100A | 100A | 120A | 120A |
| Output curent range (A)MMA | 100A | 100A | 120A | 120A |
| Output curent range (A)MIG | 120A | 120A@220V 100A@110V | 140A | 140A@220V 120A@110V |
| Rated Duty cycle (%) | 40% | 40% | 40% | 40% |
| Efficiency (%) | 85% | 85% | 85% | 85% |
| Class of Insulation | F | F | F | F |
| Shell protection grade | IP21S | IP21S | IP21S | IP21S |
| Suggested Electrode Max. | 2.5mm | 2.5mm | 3.2mm | 3.2mm |
| Wire spool size suppported | 1KGS | 1KGS | 1KGS | 1KGS |
| Category | GAS+NO GAS | GAS+NO GAS | GAS+NO GAS | GAS+NO GAS |
| N.W/G.W | 8.25KGS/11KGS | 8.25KGS/11KGS | 8.25KGS/11KGS | 8.25KGS/11KGS |
| Machine Size (LxWxH mm) | 410*170*240mm | 410*170*240mm | 410*170*240mm | 410*170*240mm |
| Packaging | BROWN CARTON BOX | BROWN CARTON BOX | BROWN CARTON BOX | BROWN CARTON BOX |
| Standard Accessories Included: | 1x 200A Electrode holder with 2m cable 1x 300A Ground clamp with 2m cable 1x Welding Mask 1x Brush / Hammer | |||
Product packaging
Delivery & Payment&Reviews
FAQ
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.
5. Why choose us?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
1. Who are we?
We are the professional manufacturer of welding machines and plasma cutters since 2011.
We are the professional manufacturer of welding machines and plasma cutters since 2011.
We're located at Wenling City of Zhejiang Province in maindland of China.
2. What do we manufactur?
We're mianly producing Inverter Welding Machine of
We're mianly producing Inverter Welding Machine of
MMA welders from 100 Amp to 500Amp (DIY or Industry purpose).
TIG welders from 160Amp to 300Amp, (DC or AC/DC).
MIG/MAG welders from 120Amp to 230A, (Gas or Gasless).
Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike).
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.
4. What is your warranty terms?
We provide 1 year warranty time for the whole machine since you received it.
We provide 1 year warranty time for the whole machine since you received it.
During the time, we will supply you the free spare parts for maintanence.
Meanwhile, we offer on-line technical supports for operating guide and troubleshooting.
5. Why choose us?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
