Model NO.
BWJ-30
Welding Tilter Type
Flexible Combination
Condition
New
Model
Bwj-30
Function
Positioner for Pipe Flange Welding
Loading Weight
3000kg
Input Power
380V
Vertical Loading Weight
1500kg
Horizontal Loading Weight
3000kg
Rotating Speed
0.2-2rpm
Welding Machine
Laser Welding Machine
Tilt Mode
Manual or Electric
Lead Time
10 Days
Motor
3kw
Positioner Weight
About 500kg
Speed Adjustment Mode
Frequency
OEM
Yes
Brand
Lemar
Transport Package
Wooden
Trademark
Lemar
Origin
Wuxi, China
HS Code
85158090
Production Capacity
1000 PCS/Year
Type:
Welding Positioner
Structure:
Platform
Rotaion Speed:
0.2-2rpm
Max Eccentricity Distance:
200mm
Tilting Angle:
0-135°
Voltage:
110V/220V

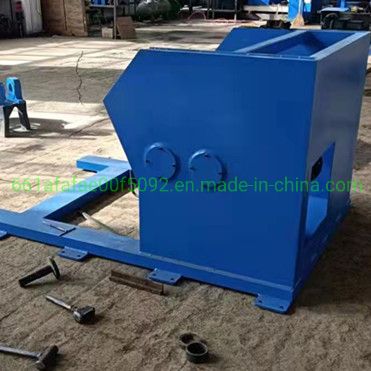

3T Pipe Flange welding tilting positioner flange welding tilting worktable
A welding positioner is a device that controls the rotation of a part with different types of rotators that allow for 360 deg of rotation and access to the part.
Power tilting and rotating pipe welding tilting positioner with stable position and accurate speed adjustment, due to eccentricity and center of gravity, larger specifications are more suitable for long or irregularly shaped workpieces.
Specification details
Portable laser welding machine specification:
(1) CNC bentchtop welding positioners
(2) Double axis turning and flipping welding positioners
(3) Head and tail dual rotation welding positioners
(4) L -shaped dual -rotating welding positioners
(5) C type dual rotation welding positioners
(7) Robotic welding turning positioners
More questions please feel free to contact us directly through here or mail!
A welding positioner is a device that controls the rotation of a part with different types of rotators that allow for 360 deg of rotation and access to the part.
Power tilting and rotating pipe welding tilting positioner with stable position and accurate speed adjustment, due to eccentricity and center of gravity, larger specifications are more suitable for long or irregularly shaped workpieces.
Specification details
| 3000kg Welding positioner Specifications | |
| Model | BWJ-30 |
| Input power | 380V |
| Loading weight | Horizontal 3000kg/Vertical 1500kg |
| Positioner table diameter | 1500mm |
| Hole diameter | Customized |
| Positioner table height | 950mm |
| Rotating speed | 0.2-2rpm |
| Rotating motor | 3kw |
| Tilt angle | 0-135 degree |
| Tilt mode | Manual/Electric |
| Positioner weight | 500Kg |
| Suitable welding chuck | Customized |
| Control mode | CNC Control welding positioner |
| Material | Protective gas | Thickness(mm) | ||
| Model | 1000w | 1500W | 2000w | |
| Aluminum plate | N2 | 0.5-2 | 0.5-2.5 | 0.5-3mm |
| Stainless steel | Ar N2 | 0.5-2.5 | 0.5-3 | 0.5-3.5 |
| Carbon steel | CO2 | 0.5-2.5 | 0.5-3 | 0.5-3.5 |
| Galvanized plate | Ar | 0.5-2.5 | 0.5-3 | 0.5-3.5 |
(2) Double axis turning and flipping welding positioners
(3) Head and tail dual rotation welding positioners
(4) L -shaped dual -rotating welding positioners
(5) C type dual rotation welding positioners
(7) Robotic welding turning positioners
