Model NO.
WP160C
Package Quantity
1PCS
Warranty
18 Months
OEM/ODM
Available
Transport Package
Plywood Case
Specification
Electric drive
Trademark
Welping
Origin
Hangzhou, China
HS Code
8515809090
Production Capacity
20000PCS/Year
Welding Range:
63-160mm
Cooling Way:
Natural Cooling
Control:
Manual
Frequency Range:
Low Frequency
Electric Current:
AC
Type:
Resistance Butt Welder

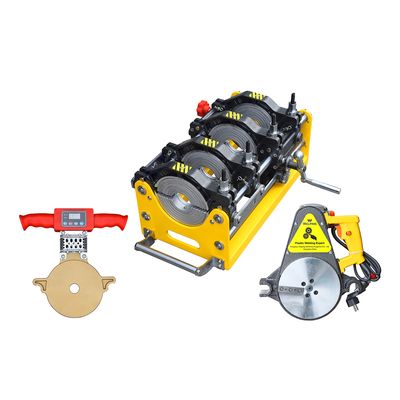

160mm HDPE PE Pipe Welding Machine/PP PPR Water Gas Plastic Manual Butt Fusion Equipment/Electric Jointing Welder/ISO SGS CE/China Factory Price
Technical parameters
Selection Chart for manual Butt Welding
Heating plate
Featured by
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead time
Standard items and light-OEM items, WELPING can finish in around 10-15 days.
3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free.
4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. About agency business
We look forward to cooperate with influential company.
Technical parameters
| Model | WP160C | |
| Suitable materials | PE, PP, PVDF | |
| Range | 63-75-90-110-125-140-160mm | |
| Power supply | 220V | |
| Frequency | 50 Hz | |
| Total power | 2.5 KW | |
| Heating plate | 1.5 KW | |
| Planing tool | 1.0KW | |
| Max.Temperature of heating plate | 270ºC | |
| Temp.Deviation in Surface | ±5ºC | |
| Total Weight | 61kg | |
| Net weight | 53kg | |
| Whole machine | plywood | 790*480*590mm |
Selection Chart for manual Butt Welding
| SN | Model | Welding range | Power supply | Remarks |
| 1 | WP110C | 40-63-75-90-110(mm) | 220V, 50Hz | |
| 2 | WP160C | 63-75-90-110-125-140-160 (mm) | 220V, 50Hz | |
| 3 | WP200C | 63-75-90-110-125-140-160-180-200 (mm) | 220V, 50Hz | |
| 4 | WP250C | 90-110-125-140-160-180-200-225-250 (mm) | 220V, 50Hz |
Basic frame
Featured by
· Unique gear transmission design, effortless, labor-
saving and convenient. Excellent smooth operation
performance.
· Robust frame structure, withstands heavy duty job
· Chromated integral shaft
made of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting &
Spraying treatment
Featured by
· Unique gear transmission design, effortless, labor-
saving and convenient. Excellent smooth operation
performance.
· Robust frame structure, withstands heavy duty job
· Chromated integral shaft
made of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting &
Spraying treatment
Planing tool
Featured by
Featured by
- HSS blade with double edge
- Die-cast aluminum trimmer plate, durable and anti-corrosion
- Aluminum alloy frame of motor with good heat dissipation performance
- Carbon brush motor with pure copper wire

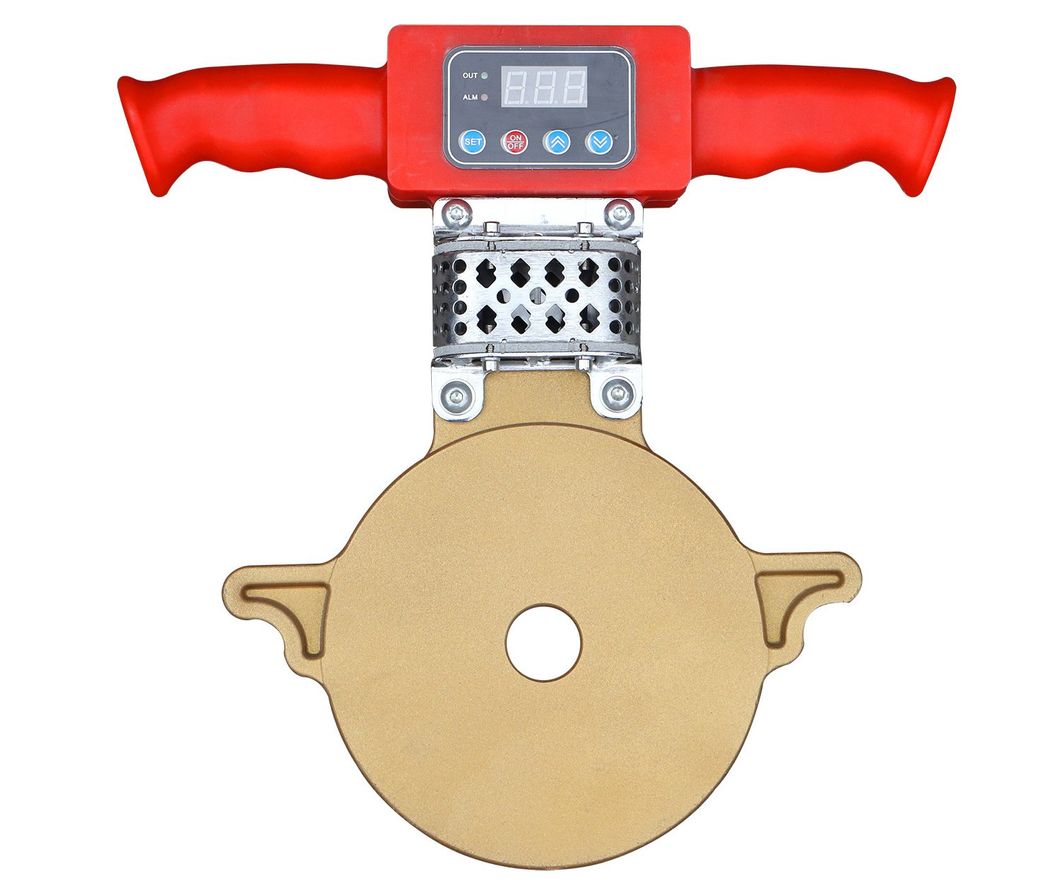

Heating plate
Featured by
- Bakelite handle with high insulating property and thermal insulation
- Thermocouple temperature sensor
- Heating element
- Teflon Coating imported from Daikin in Japan
- Aviation plug
General terms
1. Payment
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead time
Standard items and light-OEM items, WELPING can finish in around 10-15 days.
3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free.
4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. About agency business
We look forward to cooperate with influential company.
