Model NO.
BWJ-20
Condition
New
Function
Pipe Flange Welding Turning Table
Loading Weight
2000kg Welding Positioner
Table Diameter
1250mm
Lead Time
15 Days
Suitable Chuck
Kd-150/200/300/400/500/600
Rotate Speed
0.05-0.5rpm
Filt Speed
0.35rpm
Optional
TIG MIG Mag Welder
Welder Holder
Yes
Oversize
Customized
Warranty
1 Year
Rotate Power
1.1kw
Tilt Motor
1.1kw
Foot Switch
Have
Self Locking Function
Have
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Type:
Welding Turntable
Structure:
Platform
Rotaion Speed:
0.05-0.5rpm
Max Eccentricity Distance:
250mm
Tilting Angle:
0-120°
Voltage:
380V

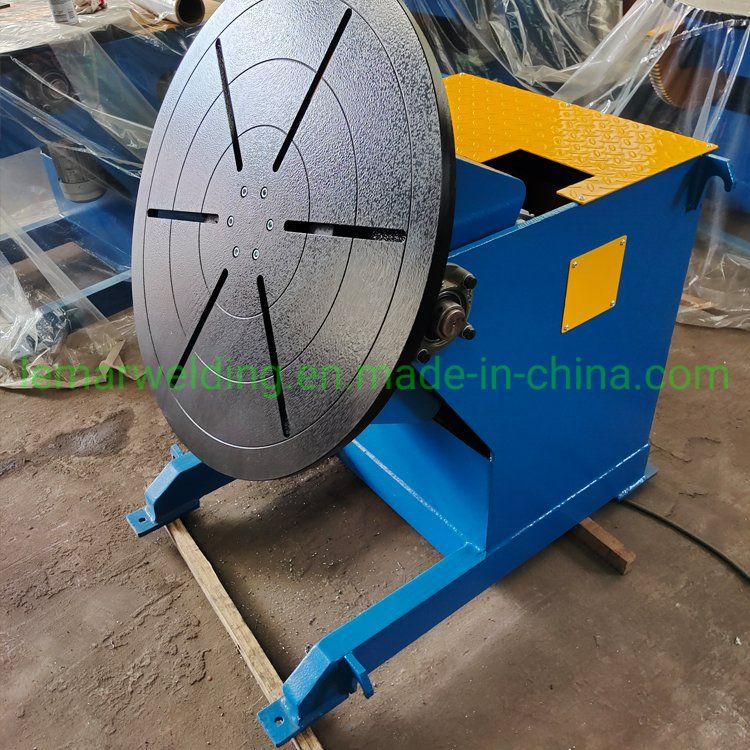

2000kg Loading TIG CO2 automatic rotary welding positioner rotary table
Welding turning tables is also named welding positioner.
According to the weight of the workpiece, it is divided into light (mini) welding positioner (10-100kg), medium welding positioner (100-300kg), and heavy welding positioner (300kg-15T).
Among them, light and medium welding rotary positioners all use DC motors, while above 600kg welding positioner will use AC variable frequency motor to drive worm gear reducer, drive the large and small wing thrushes to rotate, thereby driving welding tables to rotate, and 0-135° flip, making the workpiece (pipe flange elbows, etc.) can be in the best welding or assembly state.
It is an indispensable auxiliary equipment in the automatic welding process.
Specifications:
FAQ:
1. Who are we?
Our Wuxi Lemar Machinery Equipments Co., LTD is located in Jiangsu, China, mainly producing and operating automated welding, plasma cutting, steel structure processing production lines and other equipment. We have professional and technical personnel who have been engaged in engineering equipment for many years. Relying on the technical results of well -known domestic and foreign institutions, we quickly provide and solve technical services including production layout, process analysis and engineering equipment.
1. Are you a manufacturing or trading business?
A factory is what we are.
2. What are your terms for payment?
A: We accept T/T, L/C, Western Union, and other payment methods. After discussion and agreement on both sides, additional options may be received. Contact us directly if you have any more queries!
3. How does the warranty stand up?
A: The warranty lasts for a whole year.
While the guarantee is not liable for items damaged via violence
4. What city is your factory in? How do I travel there?
A: All of our customers, both domestic and international, are cordially invited to visit us. Our plant is situated in Jiangsu Wuxi, China, which is close to Shanghai. You may fly directly to Shanghai Airport.
Welding turning tables is also named welding positioner.
According to the weight of the workpiece, it is divided into light (mini) welding positioner (10-100kg), medium welding positioner (100-300kg), and heavy welding positioner (300kg-15T).
Among them, light and medium welding rotary positioners all use DC motors, while above 600kg welding positioner will use AC variable frequency motor to drive worm gear reducer, drive the large and small wing thrushes to rotate, thereby driving welding tables to rotate, and 0-135° flip, making the workpiece (pipe flange elbows, etc.) can be in the best welding or assembly state.
It is an indispensable auxiliary equipment in the automatic welding process.
| Wuxi Lemar Heavy duty Welding rotary positioners turntable | |||
| Loading weight | 600kg-20000kg | Welding table diameter | 800-2600mm |
| Turntable tilting speed | 0.25-0.75r/min | Gravity | 150-200mm |
| Offsetting | 200-400mm | Rotating motor | 0.37-5.5kw |
| Tilt motor | 0.55-11kw | Turntable height | 1000-1800mm |
| Warranty | 1 Year | Control mode | Handle box |
| Voltage | 380V | Colour | Customized |
| Chuck model | 3 jaw or 4 jaw or customized | ||
| We can do machines customized,welcome for your inquiry! | |||
