Model NO.
YG
Welding Material
Stainless Steel, Iron, Aluminum etc
Welding Mode
TIG MIG Mag
Optional
Welding Positioner Welding Rotator
Load Weight of Welding Positioner
Customized
Load Weight of Welding Rotator
Customized
Welding Rotator Mode
Adjustable or Self-Aligning Welding Rotator
Inout Power
220-440V
Table Speed
0.01-9.00rpm/Min
Other Name
Vessel Welding Manipulator and Positioner
Lead Time
15 Days
Weight
Customized
Drive Mode
DC/AC
Welding Position
Straight Welding or Circular Seam Welding
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
1000 PCS/Year
Cooling Way:
Air Cooling
Control:
Automatic
Frequency Range:
High Frequency
Electric Current:
AC
Name:
Pressure Roller Tube Flange Welding Machine
Function:
Pipe Flange Elbow Welding Machine
On the basis of the design of the original desktop welded displacement machine, our company has developed a pressure roller tube welding special plane.
The pressure roller automatic welding machine is mainly suitable for the docking of tube and tube, tube and flange welding, bending tube welding, T -type tube, and pipe welding cutting fields with different diameter range or gravity distance requirements.
The tig mig pipe flange welding machine can freely assemble the tube, flange and use the need to rotate or tip over a reasonable position as needed.
The machine mainly consists of a rack, a roller rotation mechanism, a clamping arm lifting mechanism, a tilting mechanism, an electrical control, etc.
The tig mig pipe flange welding machine can freely assemble the tube, flange and use the need to rotate or tip over a reasonable position as needed.
The machine mainly consists of a rack, a roller rotation mechanism, a clamping arm lifting mechanism, a tilting mechanism, an electrical control, etc.
Specification:
| Item | Specification | Note |
| Welding speed | 0-800rpm/min | Different arc welding and cone welding |
| Main drive motor power | 0.4-2kw | |
| Welding workpiece diameter | 10-600mm | |
| The maximum rotor diameter of workpieces | 800mm | |
| Chuck holding workpiece diameter | 0-600mm | |
| Workpiece weight | 3000mm | |
| Filtering electric trailer itineraries | ||
| Beam lifting stroke | ||
| Export current adjustment range | 0-500 | |
| Optional | Welding positioner/Positioner chuck/Welding rotator/Welding gun holder/TIG welder MIG welder SAW welder | |
| Current | DC |
The automatic welding machine for argon arc welding and gas shielded welding pipeline flanges adopts a DC motor matched with a reduction box to drive the large and small gears to rotate the table surface, thereby driving the workpiece to rotate. Realize automatic welding of circular seams.
According to the different requirements of customers, we can customize the automatic pipe flange welding machine to meet the individual needs of customers.
When the welding seam of your workpiece is not a standard circular seam, and you just need the welding positioner to drive the workpiece to rotate, you can make the tooling yourself and choose an independent welding positioner.

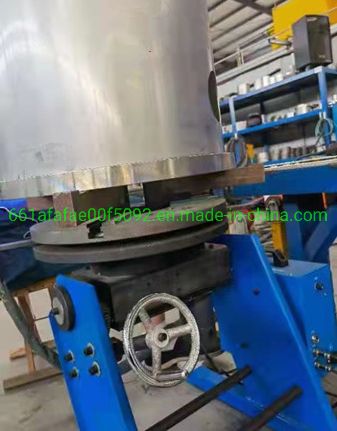

The welding positioner produced by Lemar has a wide range of bearing capacity, 30kg-20000kg, and the table top of the welding positioner can be customized according to your pipe fittings.
Welding positioner chuck and TIG welder MIG welder is optional.
Welding positioner has CNC system,normal system according to clients' differnet requirements.
The welding positioner produced by Lemar has a wide range of bearing capacity, 30kg-20000kg, and the table top of the welding positioner can be customized according to your pipe fittings.
Welding positioner chuck and TIG welder MIG welder is optional.
Welding positioner has CNC system,normal system according to clients' differnet requirements.
When your workpiece is relatively standard, the welding seam is a standard circle, you can choose a welding positioner with a chuck and a welding gun bracket or a pneumatic gun bracket to realize automatic welding of circular seams.
There are many kinds of chucks for welding positioner, the most popular is KP200/300/400/500/600 series three-jaw or four-jaw chuck.
The jaws have the characteristics of anti-skid and anti-shake, and are made of excellent wear-resistant and not easy to be corroded.
There are many kinds of chucks for welding positioner, the most popular is KP200/300/400/500/600 series three-jaw or four-jaw chuck.
The jaws have the characteristics of anti-skid and anti-shake, and are made of excellent wear-resistant and not easy to be corroded.
When your workpiece is relatively long or you need to weld the head, you need to match the welding positioner, welding chuck, pneumatic tail machine, adjustable height bracket, optional ordinary gun frame or pneumatic gun frame, which can be realized according to the selected products. Automatic or semi-automatic welding.
The pneumatic gun holder can be used together with the gun adjustment mechanism to fix the position of the welding torch such as argon arc welding and submerged arc welding.
The pneumatic gun holder can be used together with the gun adjustment mechanism to fix the position of the welding torch such as argon arc welding and submerged arc welding.
When the welding seam of your workpiece is relatively wide, you can choose a light-duty welding positioner with a welding oscillator to realize automatic welding of the circular seam.
When your workpiece needs to be welded by argon arc welding and wire filling is required, you can choose a light-duty welding positioner with automatic argon arc welding feeder to realize automatic circumferential seam welding.
When your workpiece needs to be welded by argon arc welding and wire filling is required, you can choose a light-duty welding positioner with automatic argon arc welding feeder to realize automatic circumferential seam welding.
