Model NO.
ZFH1200
Effective Welding Length
1200mm
Compression Method
Key Press Compression
Welding Thickness
0.5-6mm
Suitable Welding Wire Diameter
1.0/1.2/1.4/1.6mm
Control Mode
Optional PLC or Relay Integrated Control
Arc Welding Power Source
TIG Welding/CO2 Welding/Plasma Arc Welding
Current
AC
Input Voltage
380V-440V
Load Duration
100%
Lead Time
20 Days
Dimensions
Customized
Colour
Customized
Transport Package
Wooden
Trademark
Lemar
Origin
Wuxi, China
HS Code
8515390000
Production Capacity
500 PCS/Year
Cooling Way:
Air Cooling
Control:
Automatic
Frequency Range:
High Frequency
Welding Metal:
Stainless Steel, Iron, Aluminum, Brass
Welding Method:
Longitudinal Straight Seam Welding Machine
Model:
Zfh-1200

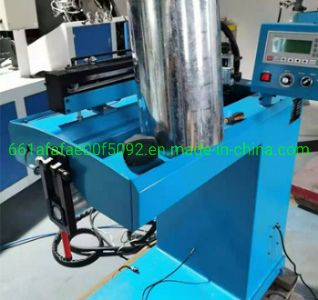

Straight seam welding machine is an automatic welding equipment that realizes the automatic completion of the straight seam of the welded workpiece through automation and mechanization.
The straight seam welding machine is also called the straight seam automatic welding machine and the longitudinal seam automatic welding machine, which is a kind of automatic welding machine.
Longitudinal TIG MIG seam welding machine can replace a large number of labor, greatly improve production efficiency and welding quality, reduce labor costs, and improve the working environment of welding workers.
The straight seam welding machine is also called the straight seam automatic welding machine and the longitudinal seam automatic welding machine, which is a kind of automatic welding machine.
Longitudinal TIG MIG seam welding machine can replace a large number of labor, greatly improve production efficiency and welding quality, reduce labor costs, and improve the working environment of welding workers.
As a manufacturer of straight Longitudinal seam welding machines, Lemar provides shell angle seam straight seam welding machines for large transformers, straight seam welding machines for large cylinder bodies, cylindrical body straight seam welding machines for solar water heaters, and straight Longitudinal seam welding machines for steel belt splices. Welding machines, straight seam welding machines for H-beams, etc.
Parameters:
| Model | ZF1200 |
| Power | 1P 50Hz AC220V |
| Welding thickness | 0.5-6mm |
| Affective welding length | ≤1200mm |
| Max welding diameter | <Ф1000mm |
| Min welding diameter | >Ф130mm |
| Skateboard moving range | 100~2500mm/min |
| Skateboard moving precision | 0.2mm |
| Welding torch pneumatic lifting stroke | 100 |
| Welding torch manual fine-tuning distance | X,Z each 60 |
| Welding source(if need) | TIG/CO2/MIG/MAG/PLASMA/SAW |
| Compression structure | Pneumatic keyboard type |
Features
1.Linear walking mechanism: It is composed of rack and pinion and linear guide components, motor reducer, beam and other accessories, which can drive the welding torch to move left and right, and complete the welding position adjustment and linear welding function of the stainless steel cylinder straight seam welding machine
2.The track of the Longitudinal seam welding machine is equipped with electrical travel switches and machinery, which can control the travel of the moving components. The welding torch is fixedly installed on the sliding plate assembly of the traveling mechanism, and moves along the guide rail of the traveling mechanism to complete the straight seam welding of the workpiece.
1.Linear walking mechanism: It is composed of rack and pinion and linear guide components, motor reducer, beam and other accessories, which can drive the welding torch to move left and right, and complete the welding position adjustment and linear welding function of the stainless steel cylinder straight seam welding machine
2.The track of the Longitudinal seam welding machine is equipped with electrical travel switches and machinery, which can control the travel of the moving components. The welding torch is fixedly installed on the sliding plate assembly of the traveling mechanism, and moves along the guide rail of the traveling mechanism to complete the straight seam welding of the workpiece.
3. Welding torch adjustment mechanism: installed on the sliding plate of the walking mechanism, divided into the welding torch pneumatic lifting mechanism and the manual micro-motion adjustment mechanism.
4.Electrical control system: Delta programmable logic controller (PLC) is used to complete the centralized control of each action in the welding process.
The automatic solar straight seam barrel welding machine adopts industrial man-machine interface to display and set parameters. The PLC is responsible for the execution of actions such as the lifting of the welding torch, the clamping and loosening of the workpiece fixture, the start and stop of the welding machine, the start and stop of the wire feed, the start and stop of the transmission system, the preset upgrade of the welding speed and the addition of functions.
4.Electrical control system: Delta programmable logic controller (PLC) is used to complete the centralized control of each action in the welding process.
The automatic solar straight seam barrel welding machine adopts industrial man-machine interface to display and set parameters. The PLC is responsible for the execution of actions such as the lifting of the welding torch, the clamping and loosening of the workpiece fixture, the start and stop of the welding machine, the start and stop of the wire feed, the start and stop of the transmission system, the preset upgrade of the welding speed and the addition of functions.
