Model NO.
BWJ-50T
Condition
New
Model
Bwj-50
Max Loading Weight
50 Ton Welding Positioner
Turntable Diameter
4000mm
Rotating Speed
0.02-0.2rpm
Speed Control
VFD Control
Overturning Speed
0.1rpm
Rotating Motor Power
11kw
Overturning Motor Power
2*7.5kw
Worktable T Slot Quantity
6 T
Lead Time
20 Days
Work for
Tank Seam Welding Turning Table
Colour
Customized
Work with
Welding Manipulator
CNC
Customized
Warranty
13 Months
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Type:
Welding Turntable
Structure:
Platform
Rotaion Speed:
0.2-2rpm
Max Eccentricity Distance:
250mm
Tilting Angle:
0-135°
Voltage:
110V/220V

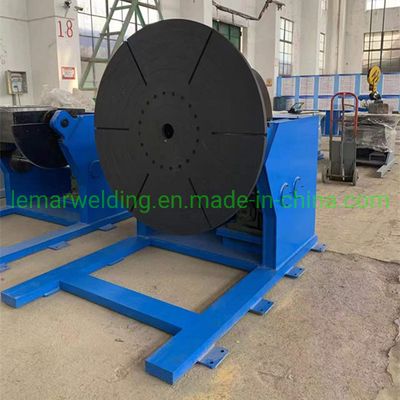

Lemar welding positioner is generally composed of a table rotation mechanism, a turning mechanism and an electric control system. The workpiece fixed on the table can reach the required welding or assembly angle through the table turning and rotating. The rotation of the worktable is variable frequency stepless speed regulation, which can obtain the best welding speed.
Due to the eccentric distance and the center of gravity, a slightly larger model should be selected for workpieces with long workpieces and large center of gravity offsets.
The standard welding positioner cannot satisfy all workpieces. Please provide the shape and weight of the workpiece to be processed, as well as the processing technology when selecting, and our company will provide a suitable solution for reference.
Due to the eccentric distance and the center of gravity, a slightly larger model should be selected for workpieces with long workpieces and large center of gravity offsets.
The standard welding positioner cannot satisfy all workpieces. Please provide the shape and weight of the workpiece to be processed, as well as the processing technology when selecting, and our company will provide a suitable solution for reference.
Specifications:
| Model | Max loading Kg | Worktable diameter mm | Table rotation speed r/min | Table turning speed r/min | Allowable center of gravity X mm | Allowable eccentricity Y mm | Rotary motor(kw) | Flip motor (kw) | Table height mm |
| BWJ-50T | 50000 | 4000 | 0.02-0.2 | 0.4r/min | 200 | 300 | 5.5 | 5.5 | Customized |
The main function of welding positioner:
To achieve and maintain the correct state of the welding position by changing the operating position of the weldment, the welding machine and the welding worker;
Conducive to the realization of mechanized and automated production.
The main types of welding positioner are weldment positioner, welding machine positioner and welder positioner, etc.
Each type is divided into several types according to its structural characteristics or functions.
To achieve and maintain the correct state of the welding position by changing the operating position of the weldment, the welding machine and the welding worker;
Conducive to the realization of mechanized and automated production.
The main types of welding positioner are weldment positioner, welding machine positioner and welder positioner, etc.
Each type is divided into several types according to its structural characteristics or functions.
