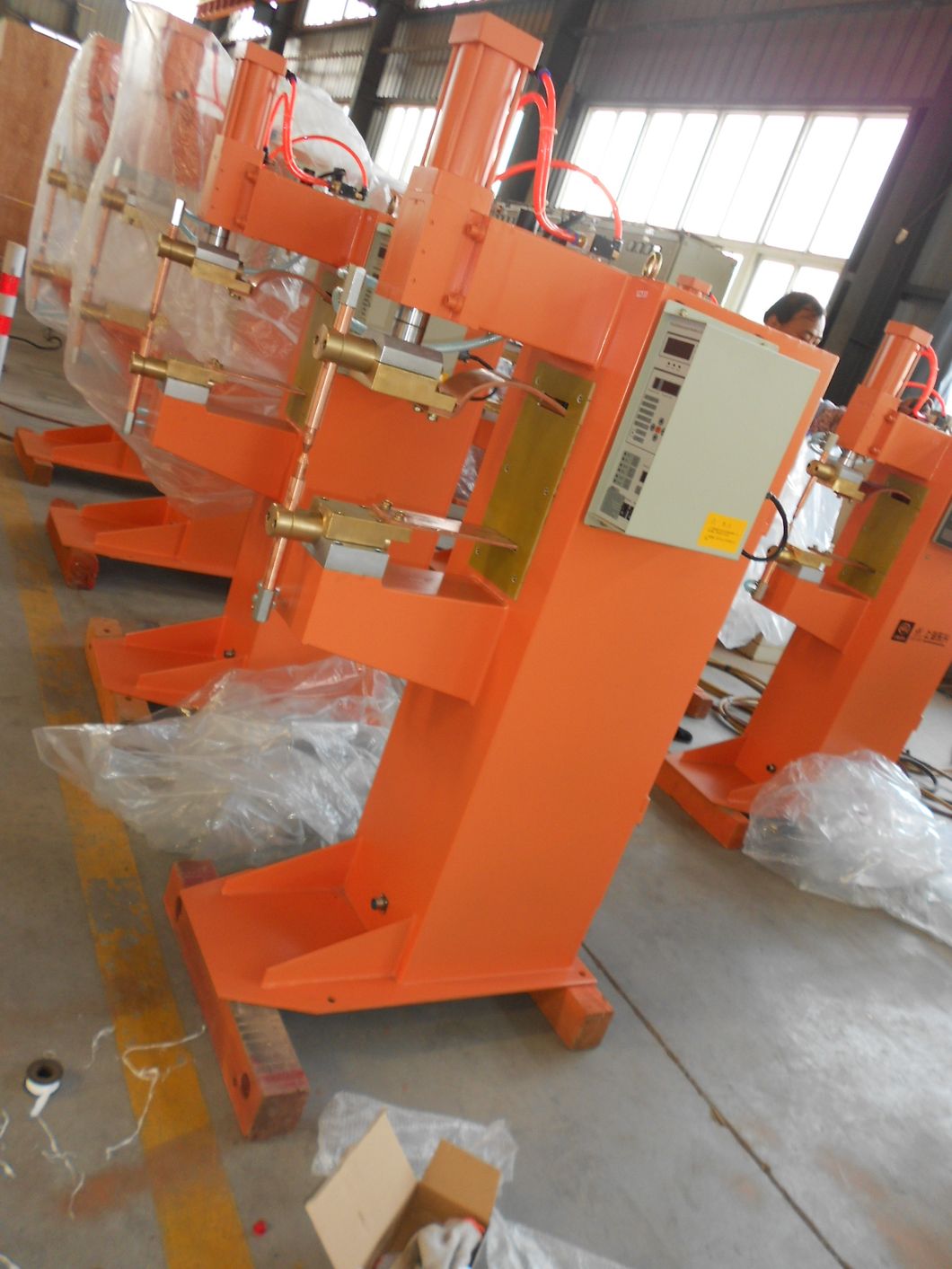

Pneumatic control microcomputer, single pulse semi-automatic spot welder welding machine
Resistance Welder
Features:
1.Pedal-level type spring-pressing structure makes the machine easy to operate and convenient maintain;
2.Thyristor controlled turn on/off electric circuit ensure the machine be turned off quickly and be more reliable;
3.Welding time can be adjusted based on actual needs,and us a result,the welding also can be well repeated;
4.Widely used for welding of low carbon steel;wire stainless steel plate etc.
Main Parameters:
| Model: | DTN-25 | DTN-40 | DTN-63 | DTN-80 | DTN-100 | DTN-125 |
| TECHNICAL PARAMENTERS | ||||||
| Input Voltage/Frequency | 380V/50Hz | |||||
| Rated Capacity | 25KVA | 40KVA | 63KVA | 80KVA | 100KVA | 125KVA |
| Rated Lnput Current | 66A | 105A | 166A | 210A | 263A | 328A |
| Rated Duty Cycle | 20% | |||||
| Secondary Open Circuit Voltage | 2~4.13V | 2.5~5V | 2.97~5.94V | 3.52~7.04V | 3.66~7.32V | 4.32~8.64V |
| Electrode Arm Extension Length | 450MM | 500M | ||||
| Horn Spacing | 220MM | 300MM | 350MM | |||
| Upper Ekectrode Working Stroke | 100MM | |||||
| Max.Electrode Force | 3800N | 5900N | 9700N | |||
| Welding Low Carbon Steel Thickness | 2.5+2.5MM | 3+3MM | 3.5+3.5MM | 4+4MM | 5+5MM | 6+6MM |
| Pressure of Condensed Air | 0.6Mpa | |||||
| Flux of Cooling Water | 120 I/H | 180 I/H | 300 I/H | 480 I/H | ||
| Weight | 198KG | 260KG | 310KG | 320KG | 500KG | 518KG |
| Dimensions | 920*500*1530(MM) | 1020*500*1620(MM) | 1100*580*1780(MM) | 1120*620*1880(MM) | ||
Application:
The product are used in a wide variety of industries
Aerospace/Appliances/Automotive/Construction/Electronics/Forging
Process/Insulation/Installation/Light and Heavy Duty
Equipment/Offshore/Petrochemical/Shipbuilding/Signs and Decorative
Trim/Toys/Transportation/Utilities Metalworking
Company Show:
Our Service:
1. Help customer analyze product project and provide welding solution.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year and a half guarantee, all life using service.
7. 24 hours feedback speed by email of others.
FAQ:
1.Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.
3.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.
4.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality
makes us who we are today. We focus on the quality from the very beginning to the end.
5.Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
