Model NO.
KTG-200
Wheels Quantity
4heels
Suitable Tank Diameter
800 mm-6500 mm
Wheel Rolls Diameter
700 mm
Wheel Rolls Width
250 mm
Linear Speed
6-60 M/H
Turning Rolls Motor
4kw*2
Warranty
1 Year
Lead Time
10 Days
Speed Mode
Stepless Speed Regulation
Rolls Material
Polyurethane Wheel and Metal Rolls
Transport Package
Standard
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Type:
Welding Turning Rolls
Structure:
Platform
Welding Turning Rolls Type:
Self-Adjusting
Condition:
New
Model:
Ktg-200
Max Loading Weight:
200 T
Welding roller racks can be divided into fixed roller racks (self-adjusting or adjustable) and electric walking roller racks (usually adjustable roller racks) according to the different fixing methods.
The electric walking adopts screws to move the rollers in steps, and adjusts the center distance of the rollers to adapt to the change of the diameter of different tanks.

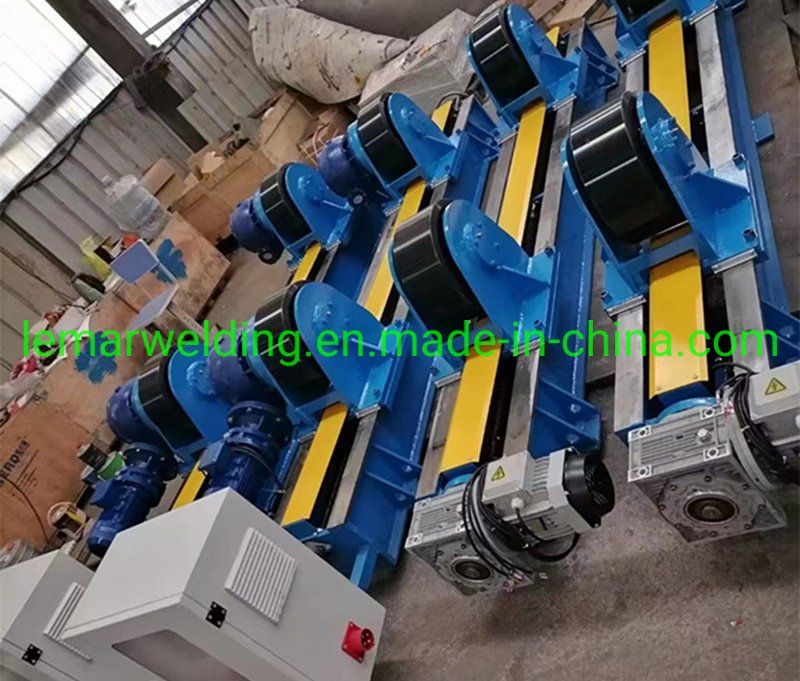

The roller welding rotator is mainly composed of an active roller, a passive roller, a support frame, a base, a transmission system, and a power device drive.
Imported frequency converter is used for stepless speed regulation, with wide adjustment range and high precision; the manual control box is simple and reliable to operate, has a variety of self-protection functions, and can leave a linkage interface in the electrical box, and the control system of welding equipment such as welding manipulator Connected to achieve linkage centralized control.
The electric walking adopts screws to move the rollers in steps, and adjusts the center distance of the rollers to adapt to the change of the diameter of different tanks.
The roller welding rotator is mainly composed of an active roller, a passive roller, a support frame, a base, a transmission system, and a power device drive.
Imported frequency converter is used for stepless speed regulation, with wide adjustment range and high precision; the manual control box is simple and reliable to operate, has a variety of self-protection functions, and can leave a linkage interface in the electrical box, and the control system of welding equipment such as welding manipulator Connected to achieve linkage centralized control.
Specifications:
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Metal Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Diameter | Width | ||||||
KTG-200 | 200000 | Φ80-6500 | Φ700 | Φ250 |
| 4*2 sets |
(VFD) |
The design of the welding roller rotator of the wind tower fitting up greatly reduces the positioning time before the wind tower is welded.
Main advantages:
1. The positioning time of the tower section is reduced by using welding adjustable rotator at least 50%;
2. Portable wireless remote control, only one operator can complete the whole process of positioning the entire tower section without lifting time;
3. Effective and efficient longitudinal adjustment of the tower;
4. Improve workplace safety and significantly reduce waste.
Main advantages:
1. The positioning time of the tower section is reduced by using welding adjustable rotator at least 50%;
2. Portable wireless remote control, only one operator can complete the whole process of positioning the entire tower section without lifting time;
3. Effective and efficient longitudinal adjustment of the tower;
4. Improve workplace safety and significantly reduce waste.
What are the precautions for welding roller rotator:
1.When operating the welding roller frame, the rollers are in full contact with the workpiece, and no sharp objects are allowed. Moreover, when hoisting, it is strictly forbidden to hit the rollers to prevent damage to the rollers or other components.
2.Do not spray corrosive liquid directly on the self-adjusting welding roller frame.
3.The requirements on the weight and diameter of the workpiece should be strictly implemented in accordance with the design regulations, otherwise there will be safety accidents.
The distance between the main and auxiliary wheels should be adjusted appropriately according to the length of the welding roller frame.
4.If you need to install the roller frame, it should be noted that the roller frame must be at the same level, and the center line must be on the same straight line.
1.When operating the welding roller frame, the rollers are in full contact with the workpiece, and no sharp objects are allowed. Moreover, when hoisting, it is strictly forbidden to hit the rollers to prevent damage to the rollers or other components.
2.Do not spray corrosive liquid directly on the self-adjusting welding roller frame.
3.The requirements on the weight and diameter of the workpiece should be strictly implemented in accordance with the design regulations, otherwise there will be safety accidents.
The distance between the main and auxiliary wheels should be adjusted appropriately according to the length of the welding roller frame.
4.If you need to install the roller frame, it should be noted that the roller frame must be at the same level, and the center line must be on the same straight line.
