Model NO.
SUD315H
Frequency Range
Low Frequency
Electric Current
AC
Type
Hydraulic Butt Fusion Welding Machine
Certification
ISO, Ce, SGS
Warranty
16 Months
Power
5.35kw/220V
Wooden Box
2 Wooden Boxes
Tootal Power
5.35kw
Insert Layer Material
Aluminum
Welding Material
PE, PP, PVDF
Voltmeter
Digital Display
Weight
230kg
Pressure Adjustable Range
6.3MPa
Transport Package
Wooden Box
Specification
70KG/0.2CBM
Trademark
SUDA
Origin
China
HS Code
85152900
Production Capacity
1000/Year
Welding Range:
90 110 125 140 160 180 200 225 250 280 315
Cooling Way:
Air Cooling
Control:
Semi-Automatic
90-355mm HDPE Pipe Butt Fusion Welding Machine/Hydraulic Butt Fusion Welding Machine/Hdpe Pipe Welding Machine/Butt Fusion Machine
Suitable for welding of plastic pipes and fittings made from PE, PP&PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Removerable PTFE coated heating plate with seperate temperature control system.
Electric Planning Tool with reversible double cutting edge blades.
Hydraulic Unit provides welding machine with compressing power.
Be made of Aluminum material.
Low starting pressure ensures reliable welding quality of small pipes.
Temperature Controller and Timer, easy to know the exact time and temperature.
=====Specification=====
| Model | SUD355H |
| Welding range(mm) | 90 110 125 140 160 180 200 225 250 280 315 355 |
| Heating Plate Max. Temp | 270°C |
| Temp. Deviation in Surface | ≤±5°C |
| Working Voltage | 220V/50HZ |
| Pressure Adjustable Ranges | 0-6.3MPa |
| Heating Plate Power | 3.60KW |
| Planning Tool Power | 1.10KW |
| Hydraulic Unit Power | 0.75KW |
| Total Power | 5.45KW |
| Weight | 260KG |
| Volume | 1.1M3 |
=====Pictures=====
======Machine Include=====

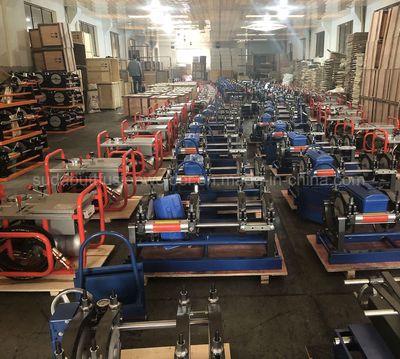

=====We have enough stock=====
=======Application======
======Packing and Loading =====

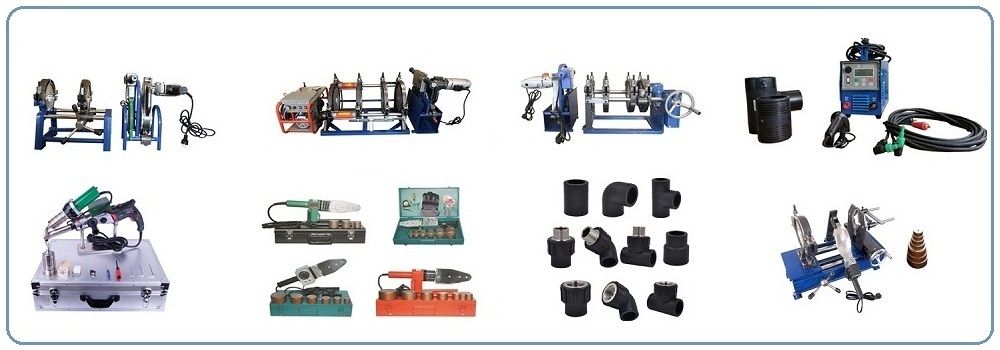

SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
Our Advantages
1.The main accessories of the welding machine are made by fully automatic aluminum casting. It is lighter, more solid and smooth than the machine made by sand-casting and steel-form technology.
2.Using static plastic-spraying process, colorful,smooth surface and not easy to be damaged.
3.The main accessories of the hydraulic station are imported overseas, which could reduces the maintence and extends the life of hydraulic station.
4.The package we use is fumigated cartons which has nice appearance and solid structure for convenient trasportation.
