Model NO.
PLUSMMA-180 OCV
Input Voltage
220V
Suggested Electrode Max
4mm
Rated Input Frequency (Hz)
50/60Hz
Non-Load Voltage (V)
80V
Rated Duty Cycle (%)
40%
N.W./G.W. (Kg)
5.0kg/8kg
Transport Package
Carton
Specification
350*150*225mm
Trademark
FENGBAO
Origin
Taizhou, China
HS Code
8513190000
Production Capacity
20000PCS/Month
Cooling Way:
Air Cooling
Style:
Portable
Frequency Range:
High Frequency
Electric Current:
DC
Work Form:
One-Body
Type:
Manual Metal-Arc Welder

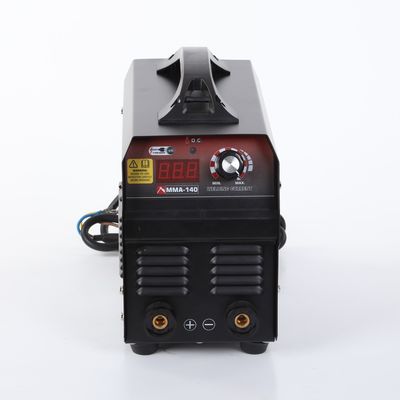

The LEOPARD series DC inverter welding machine is the expert of Welder with genius design for professional working. It is the perfect performance upgrade for those jobs that need a little more power. This powerful, lightweight ARC inverter technology does it all. True DC inverter technology is utilised in the most efficient way capable of smooth accurate work with perfect stability.
This awesome 'Go anywhere' MMA-ARC welds all ferrous metals such as mild steel, stainless steel, chrome moly, etc. The MMA/Stick welding function allows you to run up to a 5mm rod with perfect stability of the Arc.
Without a doubt, the LEOPARD series MMA WELDER is in a league of its own, packed with superior features. It incorporates the latest High Frequency Inverter technology producing the highest quality results in stick electrode welding with complete reliability.
The LEOPARD WELDER is the ultimate choice for DIY, homeworking, light industrial, site welding, repairing, etc; it is 100% generator friendly and weighs in at Max. 6kg! Very handy for go anywhere.
Meanwhile, the machine is approvaved by CSA, UL, CE certificate and fully comliant with mandatory EMC legislation.
| Model | MMA-160 PLUS OCV | MMA-180 PLUS OCV | MMA-200 PLUS OCV |
| Type | IGBT | IGBT | IGBT |
| Rated Input Voltage (V) | 220V | 220V | 220V |
| Rated input frequency (Hz) | 50/60HZ | 50/60HZ | 50/60HZ |
| Rated input Power | 5.3KW | 5.3KW | 7.1KW |
| Non-load Voltage (V) | 80V | 80V | 80V |
| Output curent range (A) | 20 - 140A | 20 - 180A | 20-195A |
| Rated Duty cycle (%) | 60% | 60% | 60% |
| Class of Insulation | F | F | F |
| Shell protection grade | IP21S | IP21S | IP21S |
| Suggested Electrode Max | 4.0mm | 5.0mm | 5.0mm |
| Connector size | 13mm | 13mm | 13mm |
| N.W./G.W. (kg) | 5.0kg/8.0kg | 5.0kg/8.0kg | 5.0kg/8.0kg |
| Machine Size | 350*150*225mm | 350*150*225mm | 350*150*225mm |
| Packaging | BROWN CARTON | BROWN CARTON | BROWN CARTON |
