Model NO.
DZG20
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Traditional Special
Condition
New
Color
Customer Requirement
Optional
Foot Switch
Delivery
Timely
Market
World
Transport Package
Wooden Case
Specification
CE, ISO
Trademark
Datang
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
50 Sets/Month
Type:
Welding Turning Rolls
Structure:
Platform
Rotaion Speed:
0.1-1rpm
Max Eccentricity Distance:
100mm
Tilting Angle:
0-90°
Voltage:
Standard

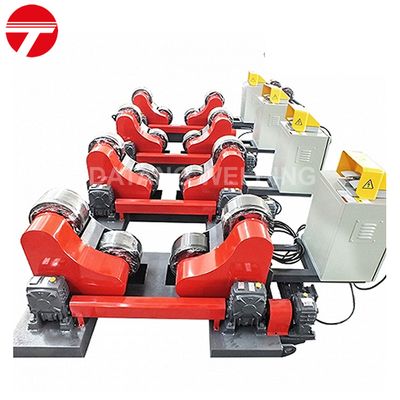

WELDING ROTATOR
1 set powered tank rotator and 1 set idle tank rotator and electrical control system.
L Powered tank rotator and idle tank rotator has the welded structure pedestal, which is frame structure and get rid of the stress after welding. It has the character of large loading capability and long time using life. At the same time, two roller holes on the pedestal is machined in one time, which ensures the concentric of both hole.
L Two clamp racks are installed on the tank rotator, it has two rollers, which will touch the workpiece well when the workpiece is put on the roller and the clamp rack will wave around the fixed shaft, so that the roller will suit for the different diameter workpiece and ensure the workpiece cover angle during the range of 45° To 110° .
L The roller is combined by rubber and metallic wheels, the metallic wheel adopts steel forging part, which is quenched on the roller surface with high hardness, the rubber wheel has the character as anti-press, anti-abrading and long time using life.
L The ruducer adopts worm gear and gear wheel couple reducing part, which has the character as resonable structure, steady runing, small cubage, large torque and lower noise, etc.
L The powered motor is protected by the electric components, the veriable frenquency speed adjusting, steady and reliable capability.
L All outsourcing parts are from the country professor manufacturers and ensure the quality and capability.
| Model | DZG-5 | DZG-10 | DZG-20 | DZG-40 | DZG-60 | DZG-80 | DZG-100 |
| Unit Loading (T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 |
| Min Job Dia (mm) | φ250 | φ320 | φ500 | φ600 | φ750 | φ850 | φ1000 |
| Max Job Dia (mm) | φ2300 | φ2800 | φ3500 | φ4200 | φ4800 | φ5000 | φ5500 |
| PU wheel dia (mm) | φ250 | φ300 | φ350 | φ400 | φ450 | φ500 | φ500 |
| PU wheel thickness(mm) | 100 | 120 | 150 | 160 | 180 | 180*2 | 180*2 |
| Linear speed (m/h) | 6-60 | ||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 |
| Speed adjusting way | VFD | ||||||
