Model NO.
DKG
Welding Turning Rolls Type
Non-Self-Adjusting
Welding Tilter Type
Standard
Condition
New
Color
Customer Requirement
Optional
Foot Switch, Chuck
Delivery
28 Working Days
Market
World
Transport Package
Standard
Specification
Standard
Trademark
Datang
Origin
China
HS Code
8479899990
Production Capacity
30 Sets Per Month
Type:
Welding Turning Rolls
Structure:
Standard
Rotaion Speed:
Standard
Max Eccentricity Distance:
Standard
Tilting Angle:
0-120°
Voltage:
110~575V

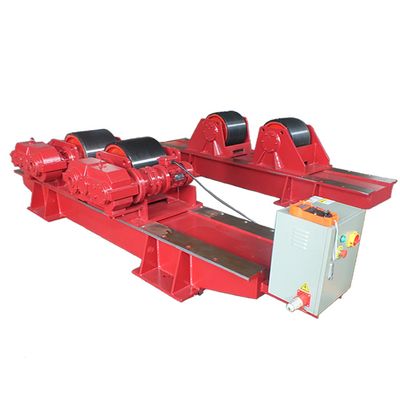

This welding tank rotator has the excellence point as the full function, convenient operation and high automatic degree, which is the ideal equipment to finish the the high quality welding and automatic welding for the different tanks.
| Type | Payload (kg) | suitable size of job (mm) | wheel Diameter and Width (mm) | Linear speed m/h) | Motor power (Kw) | Speed adjusting way | Change Speed way | |
| Rubber wheel | Metal wheel | |||||||
| DKG5 | 5000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 6-60 | 2×0.37 | Manual lead screw adjustable, adjustable by bolts shift | Veriable frequency stepless driving |
| DKG10 | 10000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 6-60 | 2×0.55 | ||
| DKG20 | 20000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 6-60 | 2×1.1 | ||
| DKG40 | 40000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 6-60 | 2×1.5 | ||
| DKG60 | 60000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 6-60 | 2×2.2 | ||
| DKG80 | 80000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 6-60 | 2×2.2 | Adjustable by bolts shift | |
| DKG100 | 100000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 6-60 | 2×2.2 | ||
| DKG160 | 160000 | Φ1100-6000 | / | Φ620×220 | 6-60 | 2×3 | ||
| DKG250 | 250000 | Φ1200-7000 | / | Φ700×260 | 6-60 | 2×4 | ||
| DKG400 | 400000 | Φ1300-7500 | / | Φ800×320 | 6-60 | 2×5.5 | ||
| DKG650 | 650000 | Φ1400-8500 | / | Φ900×400 | 6-60 | 2×7.5 | ||
