Model NO.
SUD200h
Fusion Range(mm)
40 50 63 75 90 110 125 140 160 180 200
Welding Material
PE PP PPR PVDF
Weight
135kg
Total Power
3.65kw
Certification
ISO, Ce, SGS
Warranty
One Year
Working Voltage
220V 50Hz
Packing
2 Wooden Boxes
Volume
0.5cbm
Transport Package
Standard Export Wooden Box
Specification
ISO, CE, SGS
Trademark
SUDA
Origin
China(Mainland)
HS Code
851529000
Production Capacity
1000sets/Year
Welding Range:
200mm
Cooling Way:
Air Cooling
Control:
Semi-Automatic
Frequency Range:
Low Frequency
Electric Current:
AC
Type:
Plastic Welders

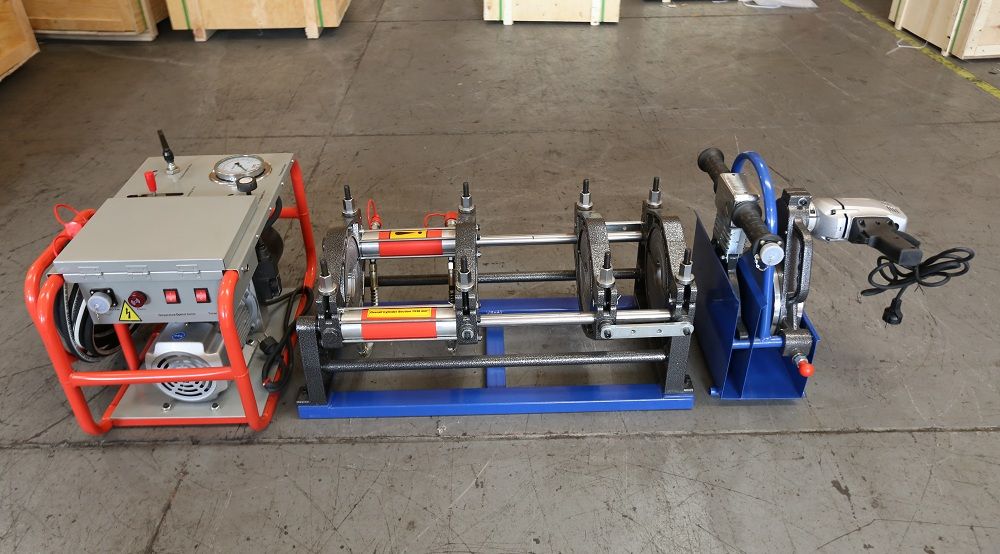

40-200mm Thermofusion Welding Machine/Plastic Welder/PE Pipe Butt Fusion Welding Machine/ Polyethylene Pipe Butt Welding Equipment
Some Advantages
1. Suitable for welding of plastic pipes and fittings made from PE, PP&PVDF.
2. Be made of Aluminum material.
3. Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
4. Removerable PTFE coated heating plate with seperate temperature control system.
5. Electric Planning Tool with reversible double cutting edge blades.
6. Hydraulic Unit provides welding machine with compressing power.
7. Low starting pressure ensures reliable welding quality of small pipes.
8.Temperature Controller and Timer, easy to know the exact time and temperature
Specification
| Model | SUD200H |
| Welding Range(mm) | 40 50 63 75 90 110 125 140 160 180 200 |
| Heating Plate Max. Temp | 270°C |
| Temp. Deviation in Surface | ≤±5°C |
| Working Voltage | 220V/50HZ |
| Heating Plate Power | 1.80KW |
| Planning Tool Power | 1.10KW |
| Hydraulic Unit Power | 0.75KW |
| Pressure Adjustable Ranges | 0-6.3MPa |
| Total Power | 3.65KW |
| Weight | 135KG |
| Volume | 0.50M3 |
