Model NO.
SUD355H
Warranty
14 Months
Total Power
5.45kw
Working Voltage
220V 50Hz
Weight
260kg
Color
Blue, Red&Black, Yellow
Current
Direct Current
Model
Sud355h
Transport Package
Wooden Box
Specification
ISO, CE
Trademark
SUDA
Origin
China
HS Code
8515290000
Production Capacity
100sets/Month
Welding Range:
90 110 125 140 160 180 200 225 250 280 315 355
Cooling Way:
Air Cooling
Control:
Semi-Automatic
Electric Current:
AC
Type:
Plastic Welders
Certification:
ISO, Ce

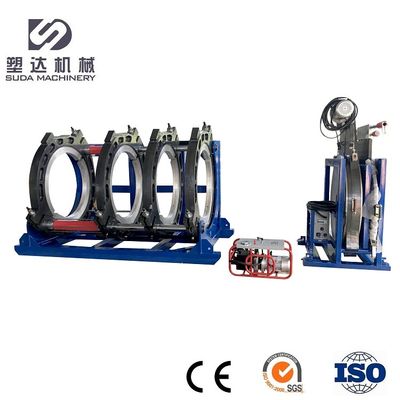

SUD355H HDPE pipe fitting machine
Application & Features
Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
SUD355H Specification
Company Information
Suda Plastic Pipe Machinery Co., Ltd.
Ms. Anna
Website:http://findtextile.com/store/sudabuttfusionwelder
Application & Features
Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
SUD355H Specification
| Model | SUD355H |
| Welding range(mm) | 90 110 125 140 160 180 200 225 250 280 315 355 |
| Heating Plate Max. Temp | 270°c |
| Temp. Deviation in Surface | ≤±5°c |
| Working Voltage | 220V 50HZ |
| Heating Plate Power | 3.60KW |
| Planning Tool Power | 1.10KW |
| Hydraulic Unit Power | 0.75KW |
| Pressure Adjustable Ranges | 0-8.0MPa |
| Total Power | 5.45KW |
| Weight | 260KG |
| Volume | 1.1m3 |
