Model NO.
SUD160H
Welding Range
50 63 75 90 110 125 140 160
Certification
ISO, CE, SGS
Warranty
1 Year
Material
Aluminum
Working Voltage
220V 50Hz
Total Power
3.35kw
Weight
120kg
Volume
0.5cbm
Package
2 Wooden Boxes
Heating Plate Power
1.5kw
Planning Tool Power
1.1kw
Hydraulic Unit Power
0.75kw
Technical Services
Yes
Operate Video
Yes
Transport Package
Standard Export Wooden Box
Specification
160
Trademark
SUDA
Origin
China(Mainland)
HS Code
8515290000
Production Capacity
1000sets/Months
Cooling Way:
Air Cooling
Control:
Hydraulic
Style:
Welding Machine
Frequency Range:
Low Frequency
Electric Current:
AC
Name:
PE Pipe Welding Machine

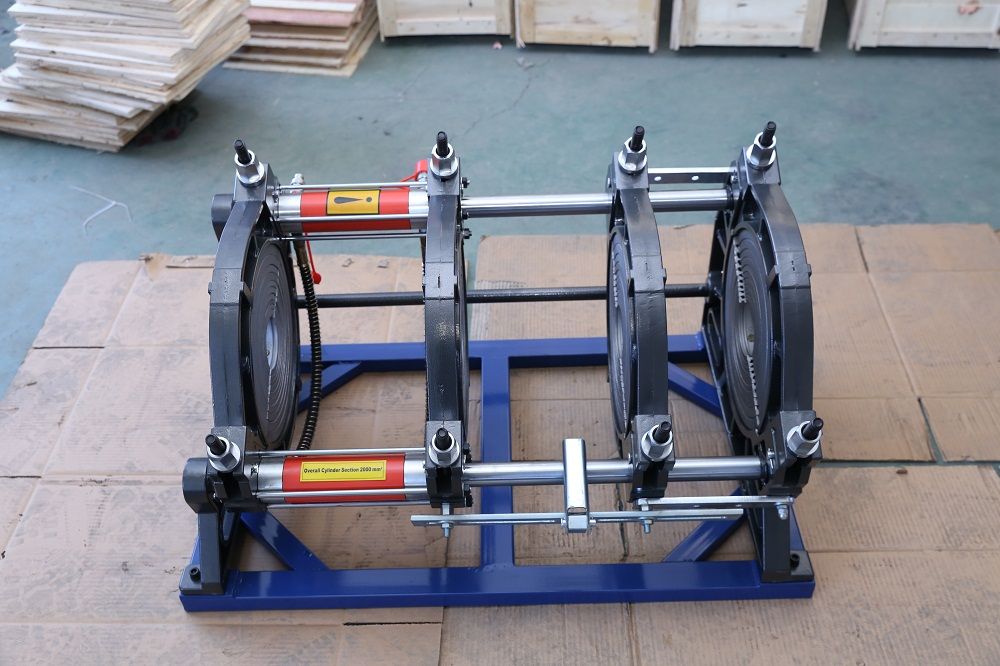

SUD160H Hydraulic PE Pipe Welding Machine/Butt Welders/Pipe Welder/HDPE Pipe Welder/HDPE Pipe Jointing Machine/Welding Machine
Brief:
Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:
1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
SUD160H Specification
| Model | SUD160H | |
| Welding Range(mm) | 40 50 63 75 90 110 125 140 160 | |
| Heating Plate Max.Temp. | 270ºC | |
| Temp.Deviation in Surface | ≤±5ºC | |
| Working Voltage | 220V 50/60HZ | |
| Heating Plate Power | 1.5KW | |
| Planning Tool Power | 1.1KW | |
| Hydraulic Unit Power | 0.75KW | |
| Total Power | 3.35KW | |
| Pressure Adjustable Ranges | 0-6.3Mpa | |
| Weight | 120KG | |
| Packing | Wooden Box | 2Wooden Boxes |
| Volume | 0.5CBM | |
More Pictures
Accessories
Factory Processing
Construction Photos
Exhibition
Our Services1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
