Model NO.
ZXQ-2
Working Style
Motor Drive
Disc Diameter
25mm 30mm 45mm
Transport Package
Plywood Exporting Package
Specification
160kg 830*570*680mm
Trademark
HST
Origin
Jinan, Shandong, China
HS Code
9024109000
Production Capacity
1000 Sets/Month
Type:
Metallographic Mounting Press
Power Source:
Electricity
Object:
Metal
Application:
Lab. of Factories, Science & Research
Disc(Wheel) Type:
Mounting
Material:
Metal
ZXQ-2

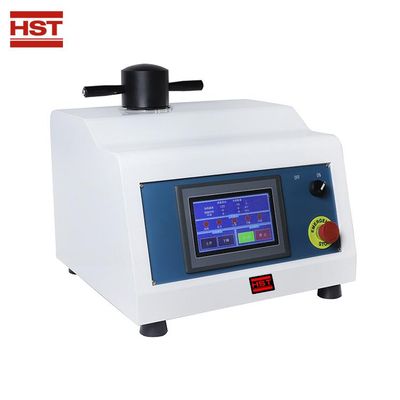

Automatic Metallographic Spcimen Inlaying Machine with Water Cooling System
Automatic Metallographic Spcimen Inlaying Machine with Water Cooling System
1. Application:
Model ZXQ-2 automatic metallographic specimen mounting presses a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of molds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.
2. Main specifications:
| Model | ZXQ-2 |
| Diameter of specimen | Φ22mm, Φ30mm, Φ45mm This can be equipped with this three kinds diameter You can choose any one as standard diameter |
| Cooling method | water cooling |
| Max. power consumption | 1000W |
| Temperature setting range | 0-300ºC |
| Net weight | 60Kg |
| Power supply | 650W 220V, 50Hz |
| Dimension | 570 × 520 × 670 mm |
