Sud630H HDPE Pipe Hydraulic Butt Welding Machine/HDPE Pipe Hydraulic Butt Welding Machine/HDPE Pipe Termofusion Welding Machine/HDPE Pipe Butt Fusion Welder
Brief:
Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:
1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
Our Services
1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
SUD450H Specification
| Model | SUD630H | ||
| Welding Range(mm) | 315 355 400 450 500 560 630 | ||
| Heating Plate Max.Temp. | 270ºC | ||
| Temp.Deviation in Surface | ≤±7ºC | ||
| Working Voltage | 380V/220V 50/60HZ | ||
| Heating Plate Power | 9.35KW | ||
| Planning Tool Power | 1.5KW | ||
| Hydraulic Unit Power | 1.5KW | ||
| Total Power | 12.35KW | ||
| Weight | 650KG | ||
| Packing | Wooden Box | 3 Wooden Boxes | |
| Volume | 3.2CBM | ||

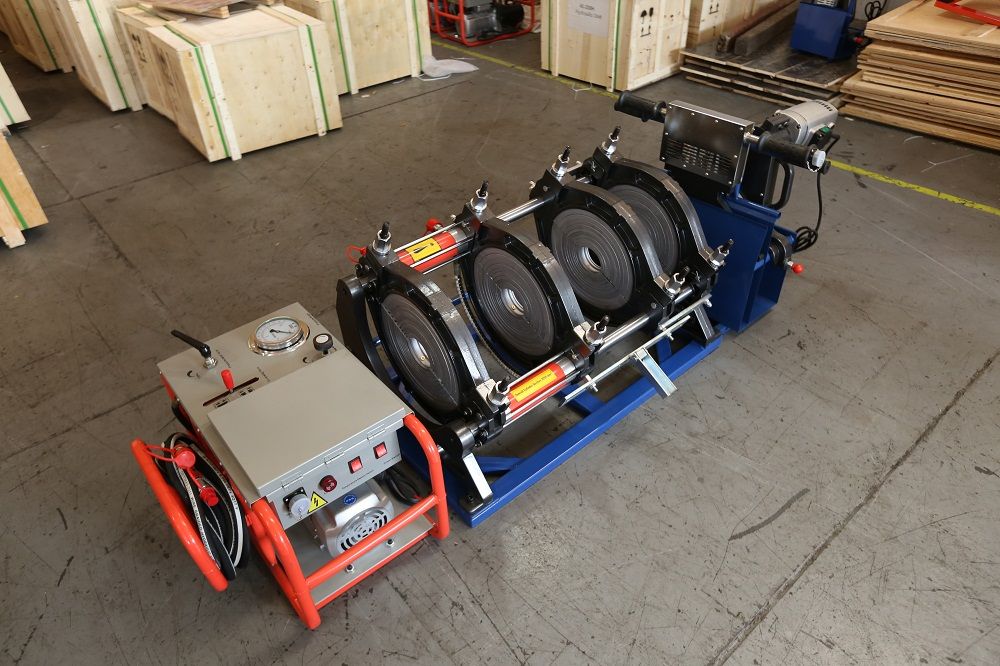

SUD630H Pictures
Other models products
SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
Our Advantages
1.The main accessories of the welding machine are made by fully automatic aluminum casting. It is lighter, more solid and smooth than the machine made by sand-casting and steel-form technology.
2.Using static plastic-spraying process, colorful,smooth surface and not easy to be damaged.
3.The main accessories of the hydraulic station are imported overseas, which could reduces the maintence and extends the life of hydraulic station.
4.The package we use is fumigated cartons which has nice appearance and solid structure for convenient trasportation.
