Model NO.
12"-24"
Warranty
1 Year
Material
Aluminum
Working Voltage
380V 50Hz
Total Power
12.35kw
Weight
650kg
Packing
3 Wooden Boxes
Volume
3.2cbm
Transport Package
Standard Export Wooden Box
Specification
ISO, CE, SGS
Trademark
SUDA
Origin
China(Mainland)
HS Code
8515290000
Production Capacity
100sets/Months
Cooling Way:
Air Cooling
Control:
Hydraulic
Frequency Range:
Low Frequency
Electric Current:
AC
Name:

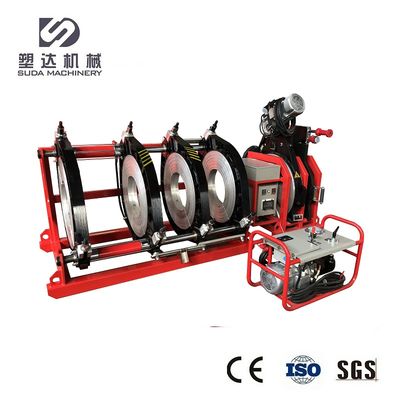

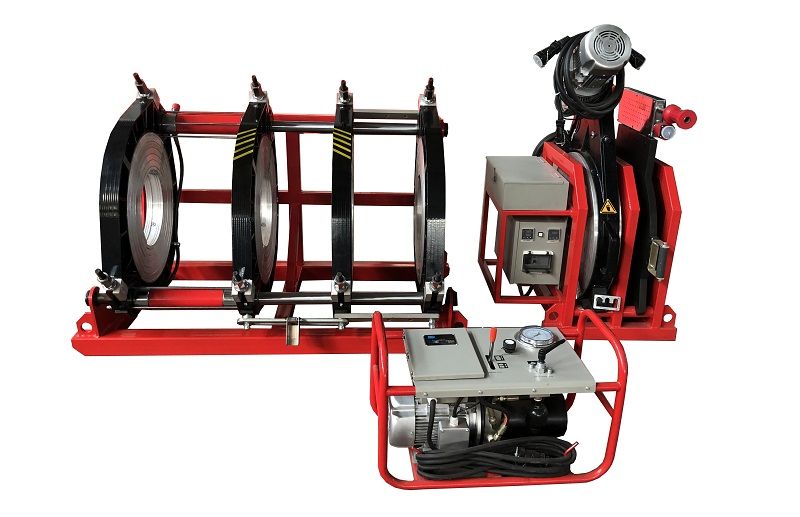

12"-24" HDPE Pipe Butt Fusion Welding Machine
Certification:
ISO, Ce, SGS
Brief: Suit for welding of plastic pipes and fitting made from PE, PP&PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:1.Removable PTEE coated heating late with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5.Low starting pressure ensures reliable welding quality of pipes.
6.Temperature Controller Timer, easy to know the exact time and temperature.
| Model | 12"-24" |
| Welding Range(mm) | 12"-24" |
| Heating Plate Max. Temp | 270°C |
| Temp. Deviation in Surface | ≤±7°C |
| Pressure Adjustable Ranges | 0-8MPa |
| Working Voltage | 380V /50HZ |
| Heating Plate Power | 9.35KW |
| Planning Tool Power | 1.5KW |
| Hydraulic Unit power | 1.5KW |
| Total Power | 12.35KW |
| Weight | 650KG |
| Volume | 5.8M3 |
SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
