Product Name
Automatic Cuplock Scaffolding Welding Machine
Welding Mode
CO2 Gas Shield
Workpiece Length
3m
Workpiece Diameter
48.3mm
Control Mode
PLC +Touch Screen HMI
Welding Speed
450-600mm/Min
Loading Weight
800kg
Transport Package
Plastic Film
Specification
48.5X3000
Trademark
HAOYU
Origin
Dezhou, Shandong, China
HS Code
8515319900
Production Capacity
200 Sets Per Year
Cooling Way:
Air Cooling
Style:
Horizontal
Frequency Range:
High Frequency
Electric Current:
DC
Work Form:
One-Body
Type:
CO2 Shield
Automatic Scaffolding Welding Machine
Feature of scaffolding welding machine

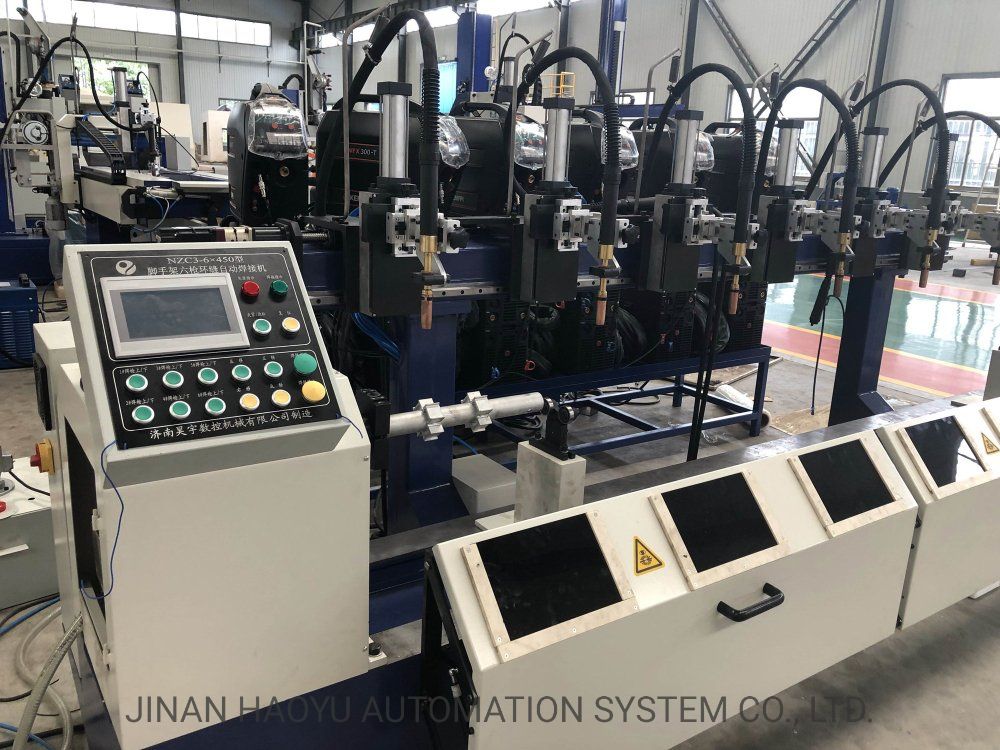

This machine is mainly used for automatic scaffolding cuplock and stopper automatic welding.
1.The 1ST assembly and cuplock welding stage----fix the components in located fixture. Automatically load the pipe through cuplocks. Pipe will be held by pneumatic rotary chuck. Machine will weld cuplocks automatically.
2.The middle conveyor stage--cylinder device will automatically push pipe&cuplock to the conveyor stage.
3.The 2ND stopper welding stage: pipe&cuplock will be automatically moved to the stopper welding stage. Pipe will be loaded and uplifted by adjustable support, and held by pneumatic thimble. 30pcs stopper can be stored in the holder in advance. Next, stopper will be welded automatically.
4.At last, the last cylinder device will push pipe and unload it to the storage stand.
Parameter of scaffolding welding machine
| Pipe diameter | 48.3mm |
| Pipe length | Max 3m |
| Stopper diameter | 8mm |
| Stopper length | 20mm |
| Welding speed | 450-600mm/min |
| Program control | Japan OMRON PLC and touch screen |
| Loading capacity | 800KG |
| Air pressure | 0.6MPA |
| Welding torch moving range | 100mm, Horizontal: 200mm |
| Rotation degree | 360° |
| Welding power source | China AOTAI 350A (AMIG350) |
| Machine working voltage | 380v 3phase 50hz |
