Model NO.
SUD160H
Warranty
14 Month
Working Voltage
220V 50Hz
Certification
Ce,ISO,SGS
Total Power
3.35kw
Heating Plate Power
1.5kw
Plannimg Tool Power
1.1kw
Hydraulic Unit Power
0.75kw
Weight
120kg
Volume
0.5cbm
Package
2 Wooden Boxes
Uasge
HDPE Pipe / Fitting Welding
Material
Aluminum
Suitable for Welding Material
PE, PP, PVDF
Color
Customized
Pressure Adjustable Ranges
0-6.3MPa
Transport Package
Wooden Box or Plastic Film
Specification
SUD200H
Trademark
SUDA
Origin
China(Mainland)
HS Code
85152900
Production Capacity
10sets/Week
Welding Range:
40mm-200mm
Cooling Way:
Air Cooling
Control:
Semi-Automatic
Frequency Range:
Low Frequency
Electric Current:
AC
Type:
HDPE Butt Fusion Jointing Machine

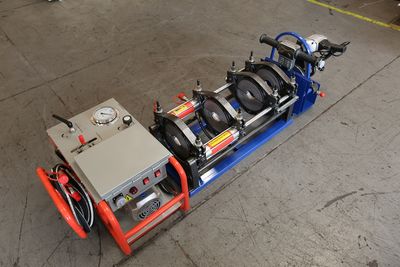

Sud40-160h Hydraulic HDPE Butt Fusion Welding Machine
Brief:
1.Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
2. Be made of Aluminum material, easy to carry and transport.
3.Consists of Planning Tool,Heating Plate,Basic Frame,Hydraulic Unit and Support.
Feature:
1.Removable PTFE coated heating plate with separate temperature control system.

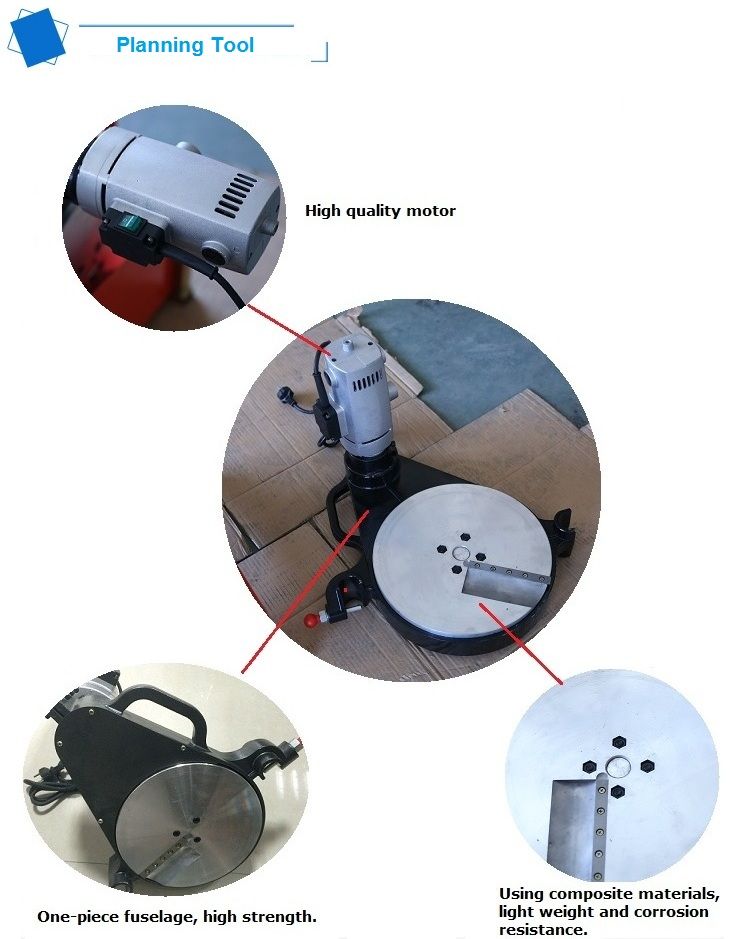

2.Electric Planning Tool with reversiable double cutting edge blades.
3.Hydraulic Unit provides welding machine with compressing power.
4.Be made of Aluminum material,esay to carry and transport.
5.Low starting pressure ensures reliable welding quantity of small pipes.
6.Temperature Controller and Timer,easy to know the exact time and temperature.
| Type | SUD160H |
| Materials | PE,PP,PVDF |
| Welding range of diameter | 40 50 63 75 90 110 125 140 160mm (IPS 2"~6") |
| Environment temp. | -5~45ºC |
| Power supply | ~220V±10 %,50 Hz |
| Total power | 3.35 kW |
| Include:Heating plate | 1.5 kW |
| Trimmer | 1.1 kW |
| Hydraulic unit | 0.75 kW |
| Dielectric resistance | >1MΩ |
| Max. Pressure | 6.3 MPA |
| Max. Temperature of heating plate | 270ºC |
| Difference in surface temperature of heating plate | ±5ºC |
| Package Volume | 0.5CBM(2 plywood cases) |
| Gross Weight | 120kg |
SUDA PLASTIC PIPE MACHINERY CO.,LTD. is a proferssional manuafcturers in China, years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including Hydraulic Butt Fusion Welding Machine, Manual butt fusion welding machine, Workshop Fittings machine, Workshop cutting machines, Electrofusion welding machine, HDPE & Electrofusion fittings, CNC plastic sheet butt welding / rolling /bending machines, etc.
We have the certificate of ISO & CE approval. This ensure our machine have the highest quality, best service and reliable warranty.
We also have more models with butt fusion welding machine, if you are interested our others machine, please reply me, and the whole catalogue will be sent to you soon!
