Model NO.
SUD800H
Name
HDPE Pipe Jointing Welding Machine
Warranty
1 Year
Certification
ISO, Ce, SGS
Working Voltage
380V/50Hz
Total Power
18.2kw
Weight
1400kg
Material
Aluminum
Transport Package
Polywood Box
Specification
ISO, CE, SGS
Trademark
SUDA
Origin
China(Mainland)
HS Code
85152900
Production Capacity
100sets/Months
Welding Range:
630-800mm
Cooling Way:
Air Cooling
Control:
Semi-Automatic
Frequency Range:
Hydraulic
Electric Current:
AC
Type:
630-800mm
Hydraulic Butt Fusion Welding Machine
Applied to connect PE, PP&PVDF pipe and pipe fitting onconstruction site, and in workshop.
Consists of basic frame, hydraulic unit, electric planning tool,heating plate, support for planning tool and heating plate.
Removable cast Aluminum PTFE coated heating plate with separatetemperature controlling system.
Electrical hydraulic pump with controls, and quick release hoses.
High-accurate and shockproof pressure meter indicates clearerreadings.
International warranty 12months.
Tool box including spare blades, thermocouple, quick couplings, sealrings, spanner and screwdriver, etc.
Optional parts: stub end device. Optional wheeled trolley is also available.

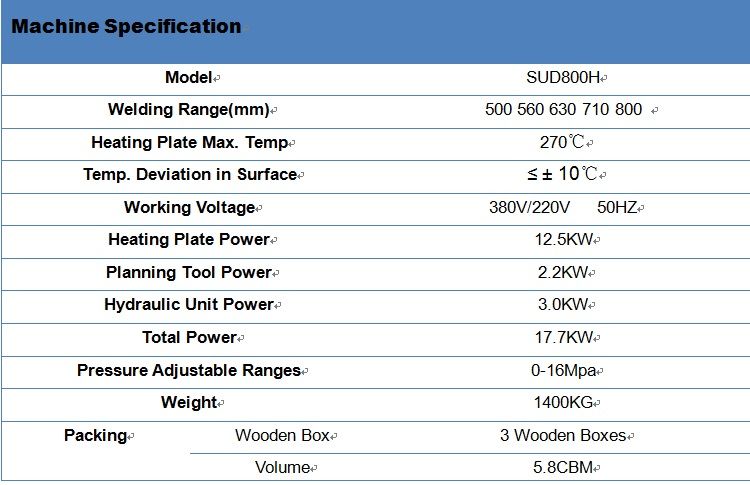

Specification
