Model NO.
SUD200M2
Welding Area
40 50 63 75 90 110 125 140 160 180 200
Usage
PE Pipe / Fitting Welding
Warranty
14 Month
Weight
45kg
Volume
0.53cbm
Package
Wooden Box
Working Voltage
220V 50Hz 1 Phase
Heating Plate Power
1.6kw
Planning Tool Power
0.71kw
Total Power
2.31
Material
Aluminum
Suitable for Welding Material
PE, PP & PVDF
Color
Customized
Pressure Adjustable Ranges
0-6.3MPa
Heating Plate Max. Temp.
270ºC
Transport Package
Wooden Box or Plastic Film
Specification
0.15CBM
Trademark
SUDA
Origin
China(Mainland)
HS Code
85152900
Production Capacity
2000sets/Year
Welding Range:
40 50 63 75 90 110 125 140 160 180 200
Cooling Way:
Air Cooling
Control:
Manual
Frequency Range:
Low Frequency
Electric Current:
AC
Type:
Butt Welders
We trust you will like our quality and our service!
Application & Features

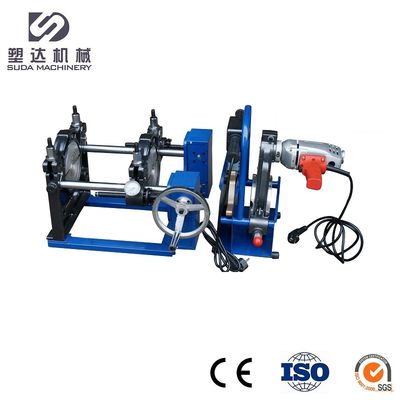

1. Consist of Basic frame, Trimmer, Heater, and support of trimmer and heater.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric Trimmer with reversible double cutting edge blades.
4. Be made of Aluminum material, easy to carry and transport.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
| Model | SUD160M-2 | SUD200M-2 | SUD250M-2 | |
| Welding Range(mm) | 50 63 75 90 110 125 140 160 | 50 63 75 90 110 125 140 160 180 200 | 63 75 90 110 125 140 160 180 200 225 250 | |
| Heating Plate Max. Temp. | 270ºC | |||
| Temp. Deviation in Surface | ≤±5ºC | |||
| Working Voltage | 220V,50HZ | |||
| Heating Plate Power | 1.0KW | 1.60KW | 2.0KW | |
| Planning Tool Power | 0.71KW | 0.71KW | 0.83KW | |
| Total Power | 1.71KW | 2.31KW | 2.83KW | |
| Pressure Adjustable Ranges | 0-6.3Mpa | |||
| Weight | 44kg | 45kg | 70kg | |
| Volume | 0.15CBM | 0.15CBM | 0.20CBM | |
